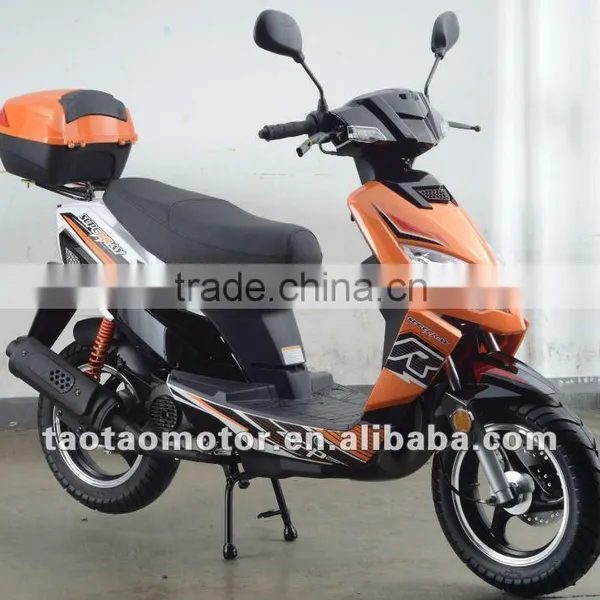

NEW SCOOTER MODEL THUNDER 50 EEC EPA

Name: NEW SCOOTER MODEL THUNDER 50 EEC EPA
Brand: TAOTAO
SKU: 141700420
Availability: InStock

Taotao Group Co., Ltd.

Negotiable MOQ: 24 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

TAOTAO

Model Number:

THUNDER 50

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO CHINA

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name TAOTAO

Model Number THUNDER 50

Engine Capacity 50-100CC

Engine 4 Stroke

Certification EEC

Wheel Material ALLOY

Body Material STEEL FRAME

Max Speed Other, >50km/h

Tank Capacity 4.5L

Tire Size 120/70-12

Color ANY COLOR

Brake FR DISC/ RR DRUM

Specifications

NEW MODEL PATENT PRODUCTS
EEC EPA CERTIFICATE
12' ALLOY RIM
FR DISC / RR DRUM
ALL LED LIGHT

No	Description		Data
Dimension	L×W×H (mm)		1780×640×1120
	Wheel Base(mm)		1250
	Ground Clearance (mm)		110
	Seat Light (mm)		750
	N.W.(kg)		85
Engine	Serial		1P39QMB 4STROKE
	Bore×Stroke (mm)		39×41.5
	Displacement (ml)		49.6
	Compress Rate		10.4:1
	Max Power (kW/r/min)		2.4/7000±500
	Rated Power (kW/r/min)		2.1/6500±500
	Max Torque (N·m/r/min)		3.6/6000±500
	Idle Speed (r/min)		1700±100
	Fuel Consumption (g/kW·h)		400
	Start		Electric / Kick
	Ignition		C.D.I
	Transmission		V-Belt
Fuel System	Carburetor		Shengwey PD19J
	Fuel Tank (L)		4.90
Driven System	Rim(Fr/Rr)		2.15×12 / 2.15×12 Alloy Rim
	Tire(Fr/Fr)		120/70-12 120/70-12 Huajian
Brake System	Brake Tyoe	Fr	Hydraulic Disc
		Rr	Drum
	Operation Type	Fr	Hand Operation
		Rr	Hand Operation
Electric System	Spark Plug type / Gap(mm)		A7RTC / 0.6~0.7
	Battery Type		12V 5Ah
	Head Light		Double Light(LED)
Main Performance	Max Speed(km/h)		52
	Start Time(s)		15
	Economic Fuel Consumption(L/100km)		2.0
Packing	Packing Type		Carton with Steel Frame inside. Disassemble Fr Rim/Fr Cover/Handle Bar.
	Packing Size(mm)		1685×565×830
	Laod Capacity		84pcs/40'HQ
	G.W.(kg)		100
