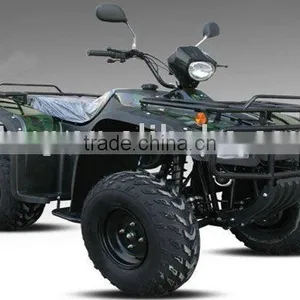

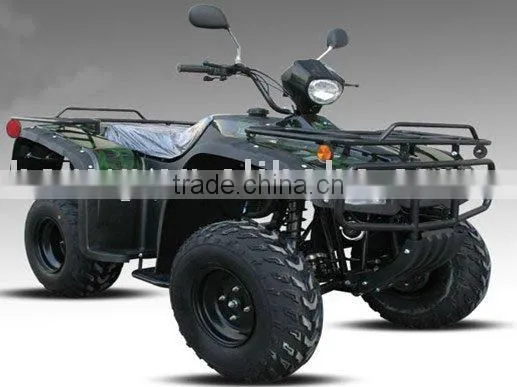

ATV Quad Bike

ATV Quad Bike thumbnail-1
ATV Quad Bike photo-1
US$ 1,000 - 1,500 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Transmission System:
Shaft Drive
Model Number:
NV250-4
Contact Supplier Request Quote Chat Now
Shanghai Du Kai Industry Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Transmission System Shaft Drive
Model Number NV250-4

Specifications

ATV quad bike
Starting system: electric/recoil backup
shaft drive
250cc

ATV quad bike



Engine type: 4-stroke, air cooled
Displacement:250cc
Transmission system: shaft drive with reverse
Bore x stroke (mm): 71 x 58
Piston displacement: 250CC
Maximum power (kW/r/min): 10/6000-7000
Maximum torque (N.m/r/min): 15/5500-6500
Starting system: electric/recoil backup
Transmission: 5 speeds, semi-automatic
Seat height (mm): 810±20
Min turning radius (mm): 2900
Ground clearance: 155
Brake (front/rear): drum/drum
Ignition type: C.D.I
Fuel tank capacity (L): 12
Front suspension: independent front suspension
Rear suspension: swing arm
Parking brake: mechanical lock
Battery: 12V-14Ah
Max load capacity (kg): 165
Engine oil capacity (L): 1.6
Gear oil capacity (L): 0.27
Dry weight (kg): 234
Rider capacity: 2 persons
Wheel base: 1160
Lubrication: pressuring splash
Compression ration:8.7:1                                                                                                                                     20FT:12pcs                                                                                                                                                                                                                           40FT:24pcs                                                                                            40HQ:36pcs
