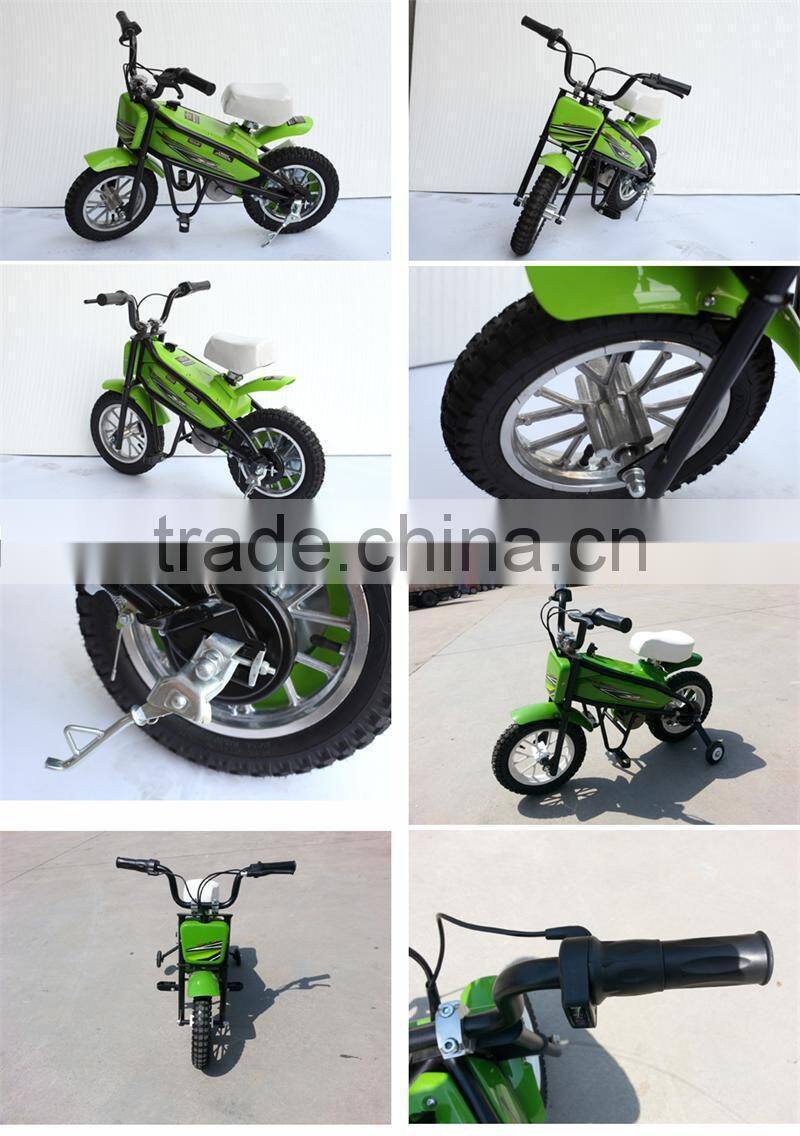

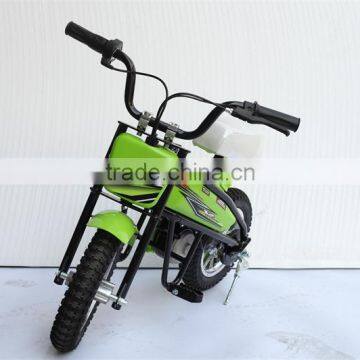

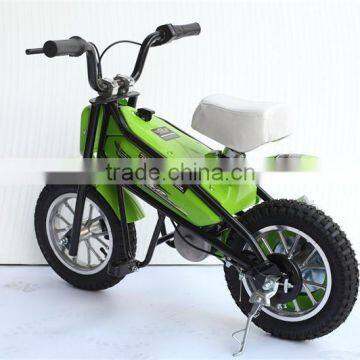

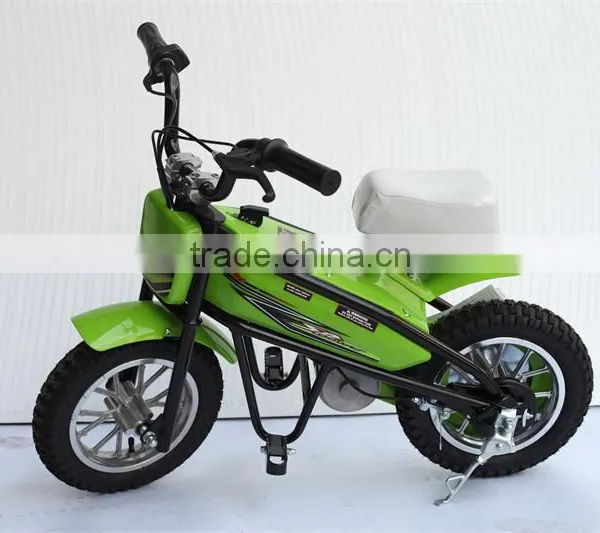

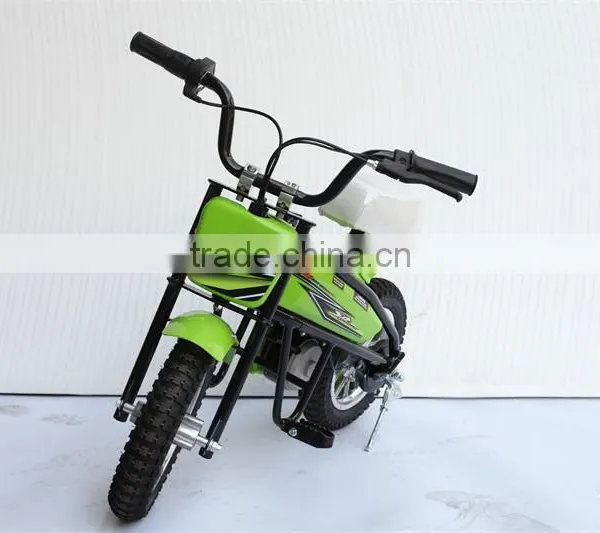

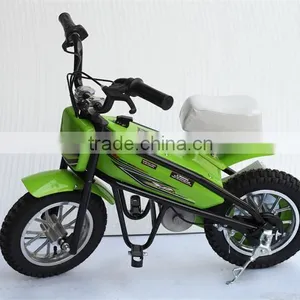

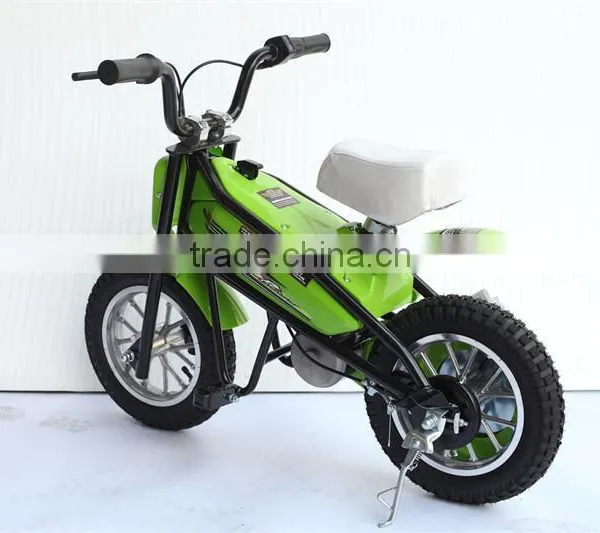

Electric Mini Scooter 200W/24V

Jinhua Zhenqi Motion Apparatus Co., Ltd. Gold Verified Supplier

5Yrs

US$ 160 - 180 MOQ: 192 Units

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Model Number:

SQ200DH

Payment & Shipping

Payment Methods:

Port of Shipment:

ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name SQ

Model Number SQ200DH

Power 100-200w

Voltage Other, 24v

Certification CE

Charging Time 6-8h

Foldable No

Range Per Charge Other, 8KM

Tire Size 12*2.75

This is our factory

Model	200DH
Products Size(LWHmm)	900×570×700
Motor Type	brushed DC , 200W/24V
Motor Max Loaded Amps	13.8A
Torque	0.89(N.m)
Max RPM	2700±7.5%(rpm)
Controller Type	Air cooled, non water -proof; brake shutoff, charger port
Battery	Lead-Acid Battery,12V /5AH*2pcs
Charging Time	6-8 hours
Battery Charger	Input-100-240VAC,54/60HZ; Output-DC 24V,0.6A
Special Features	Dismountable Handle bar
Turning Angle	28º
Transmission Ratio	92/11
Seat Height	500 mm
Wheel base Distance	580 mm

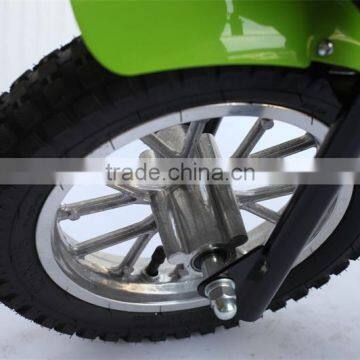

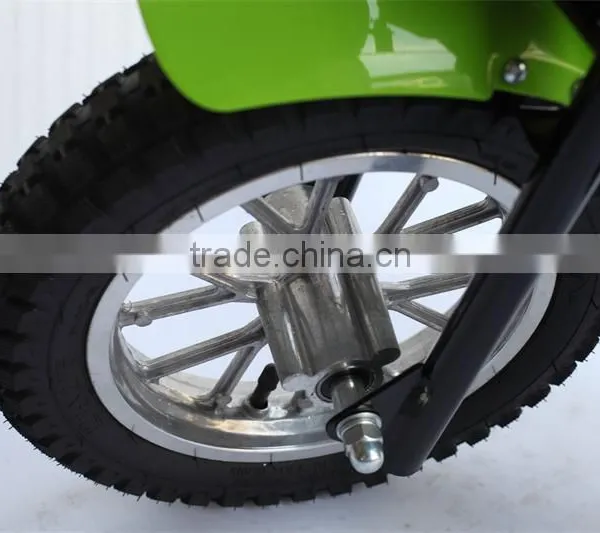

Front & Rear Tire and Rim	12^1/2×2.75
Maximum Carrying Capacity	42kgs
Mini Ground Clearance	120 mm
Maximum Speed	Low speed :7km/h ; high speed:15km/h
Maximum Distance Range	8km
Control System	handle bar control
Throttle Type	tum control

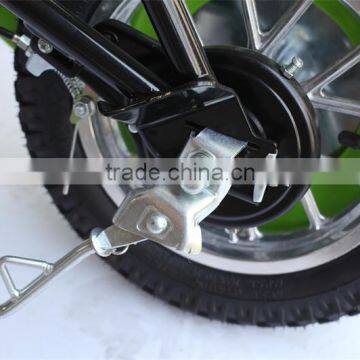

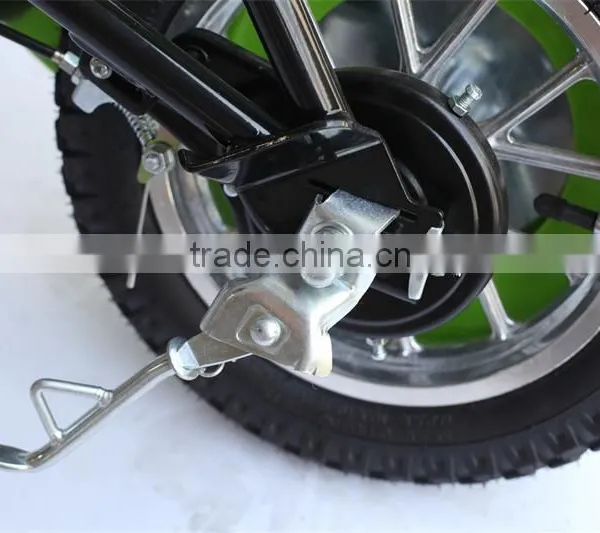

Front & Rear Braking System	Mechanical disc, left handle control
Drive System	Chian drive
Brake Distance	≤2m (7km/ h); ≤4m (15km/ h)
Packing Size(LWHmm)	960×280×550
N.W/G.W	21kgs/24kgs
Container loading(20FT/40FT/40HQ):	192/388/388
