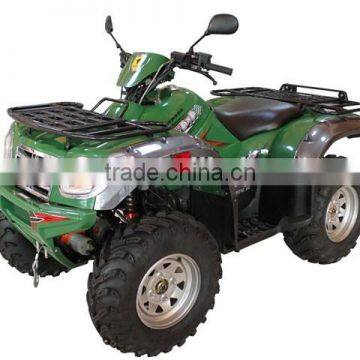

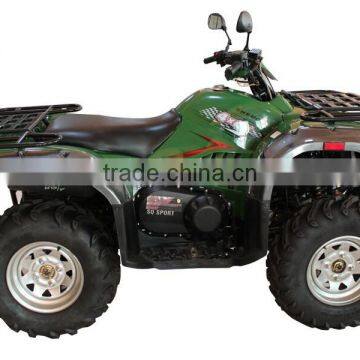

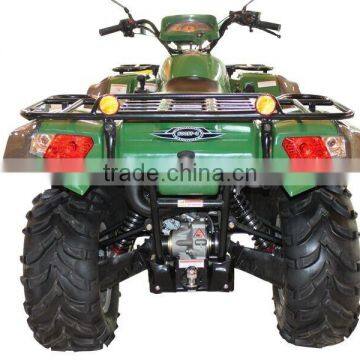

Our ATV SQ500ST-2 designed with the latest technology is suitbale for recreation and cometition. It is equipped with Water-cooled 500CC manual, single-cylinder, 4 stroke engine and convenient electric start. It is fixed with front and rear shock absorber to improve comfort during driving. Its front wheel is fixed with drum type brake and the rear wheel with top quality hydraulic disc type brake to render safe and reliable braking. The car is deluxe, artistic, dynamic, and attractive.
| Model | SQ500ST-2 |
| Product Type | 500ATV or Tracked Vehicle |
| Certification | EPA |
| Overall Dimension (L*W*H) | 2085*1200*1274mm |
| Fuel Type | Unleaded petrol above 90# |
| Wheelbace(mm)/Max Load(kg)/Curb Weight | 1400mm/570kg/460kg |
| The maximum speed (km/h) | ≥90 |
| Brake model (front/rear) | Drum after the former disc |
| Brake control method (front/rear) | Hand/foot movement |
| Igition type | C.D.I |
| Engine type | Water-cooled 500cc,single cylinder, 4 stroke |
| Engine model | SQ500 |
| Engine Displacement | 498ml |
| Engine maximum power/corresponding speed | 19.6Kw(4500r/min±5%) |
| Engine rated power/corresponding speed | 16Kw(4500r/min±5%) |
| Maximum engine torque/corresponding rotational speed | 39N.m (2700~3000r/min±5%) |
| Compression ratio | 8.6:1 |
| The lowest fuel consumption rate (g/KW.h) | >329 |
| Clutch Type | Single plate, wet spring |
| Starting way | Electric start pul start |
| Oil Grade | SF 15W/40 |
| Petrol tank capacity | 13L |
| Battery Specifications | 12V36Ah |
| Transmission output model | Shaft drive |
| Shift gears | 5 gears,2 forward,1 reverse,1 natural,1 parking |
| Idle speed | 1500 ± 150 r/min |
| Drive Model | 4WD |
| Maximum climbing degree | 30 degrees |
| Loading Capacity | 8PCS/20FT,16PCS/40FT,25PCS/40HQ |
| Colors Available | Red, Blue, Green |
Packing: Steel crate box inside and carton box outside
Delivery time: Within 25 days after the deposit confirmed
Mini order quantity: 1 Unit
FOB Port: Ningbo/Shanghai
Payment term: 30% deposit in advance, balance against the copy of B/L
Quality guarantee: Engine, gearbox, transmission system, frame, for 1 year. Other parts for half a year. Not include the glass and plastic cover.
All parts will be supplied as free of charge due to quality defect.
All parts will be supplied for 5 years at least.
Zhenqi Motion Apparatus Co., Ltd., which is specialized in manufacturing UTV, ATV, GO Kart, Dune buggies, Motor boat, and other Electric power scooters with 10 years experience.
All spare parts include covers, frames, engine, gearbox, differential lock are manufactured by ourselves. The ATV with EEC/EPA certificated.
Packing: Steel crate box inside and carton box outside
Delivery time: Within 25 days after the deposit confirmed
Mini order quantity: 1 Unit
FOB Port: Ningbo/Shanghai
Payment term: 30% deposit in advance, balance against the copy of B/L
Quality guarantee: Engine, gearbox, transmission system, frame, for 1 year. Other parts for half a year. Not include the glass and plastic cover.
All parts will be supplied as free of charge due to quality defect.
All parts will be supplied for 5 years at least.
