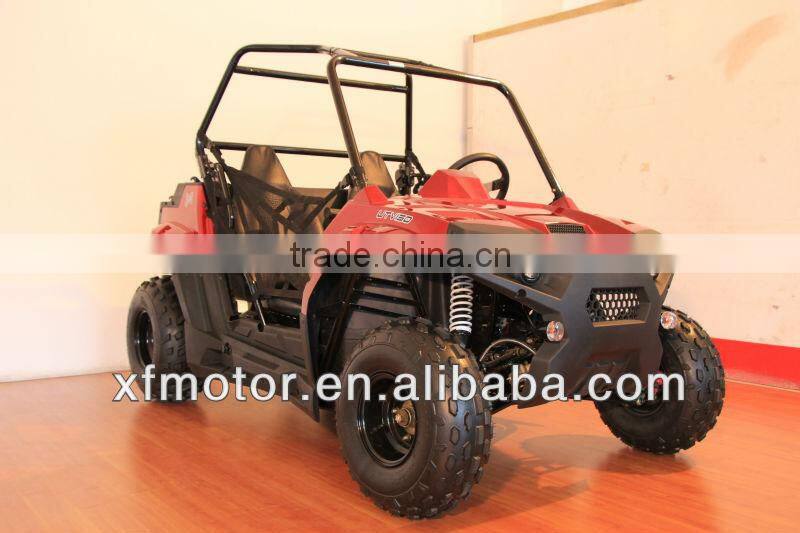

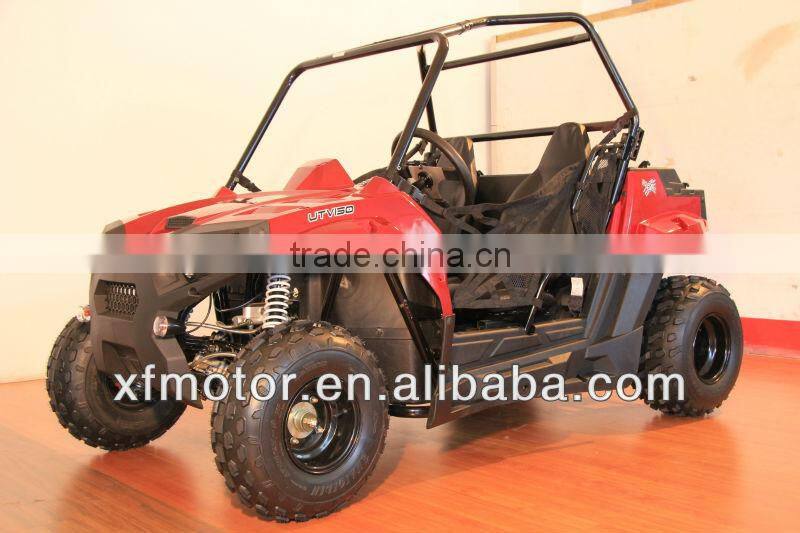

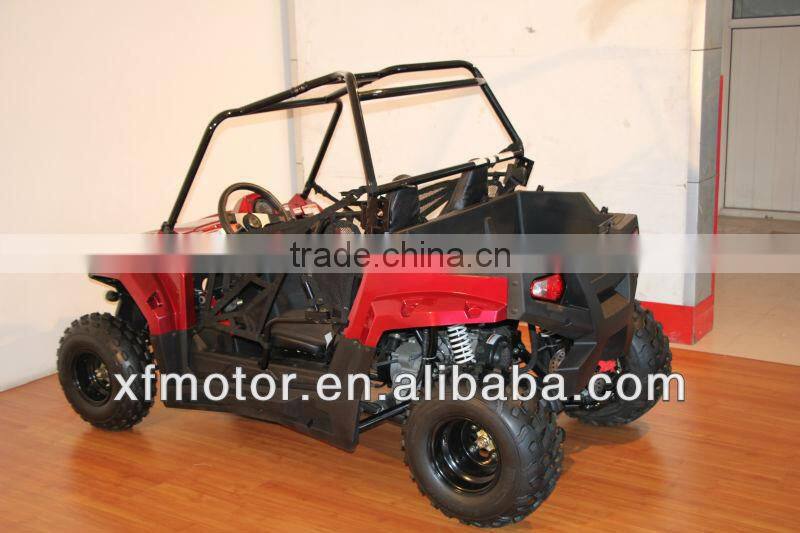

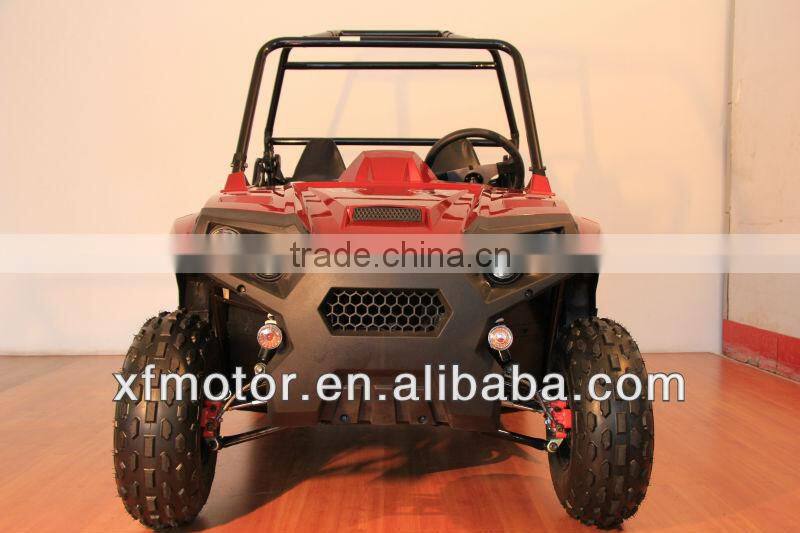

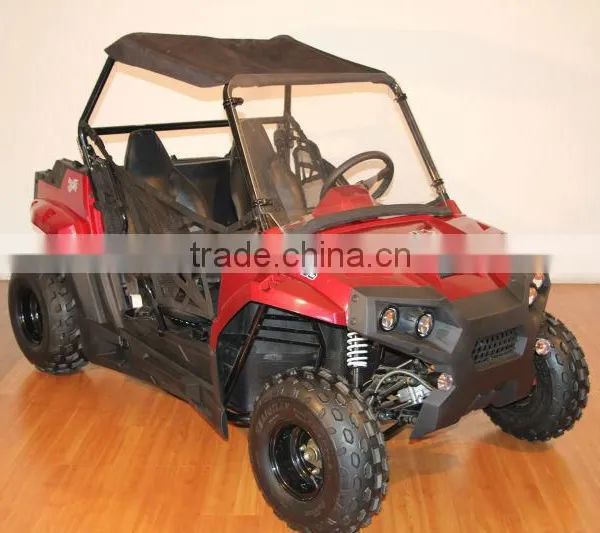

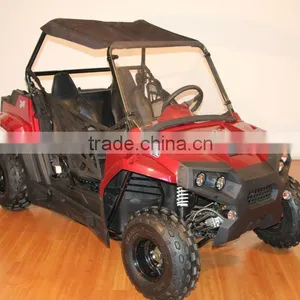

New Model 150cc UTV

Item

Specification

Model name

UTV150

Engine type

Single cylinder, 4-stroke, CVT

Displacement

149.6CC

Bore×stroke

57.4X57.8

Compression ratio

9.5:1

Ignition

CDI

Cooling system

Air cooling

Starting system

Electric

Vehicle dimension(L×W×H)

2285mm x 1290mm x 840mm

Cargo bed(L×W×H)

410mm x 852mm x 220mm

Wheelbase

1650mm

Front tread

1020mm

Rear tread

965mm

Ground clearance

152mm

Seat height

500mm

Dry weight

245kg

Fuel capacity

9.5L

Cargo bed load capability

150kg

Towing capability

2000lb

Final Drive

Chain (rear wheel drive)

Brake system front/rear

Foot Activated,4 wheel hydraulicdisc

Suspension

F:Single A-arm   R:Swing arm

Steering

Gear box

Front tyre size

19×7-8

Front wheel size

8×5.5

Rear tyre size

20×10-9

Rear wheel size

9×8

Top speed

60km/h

Loading information

8  units/20″;   18  units/40″;

27   units/40HQ

Packing Size

2290mmx1300mmx855mm

Waterproof

0.2m

Max climbing gradient

15°

Min opernation temperature

-20°C(-4°F)

Max opernation temperature

40°C(104°F)

Max torque and rotate speed

9.8N.m(4000r/min)

Rated power and rotate speed

6.8kw(5500r/min)
