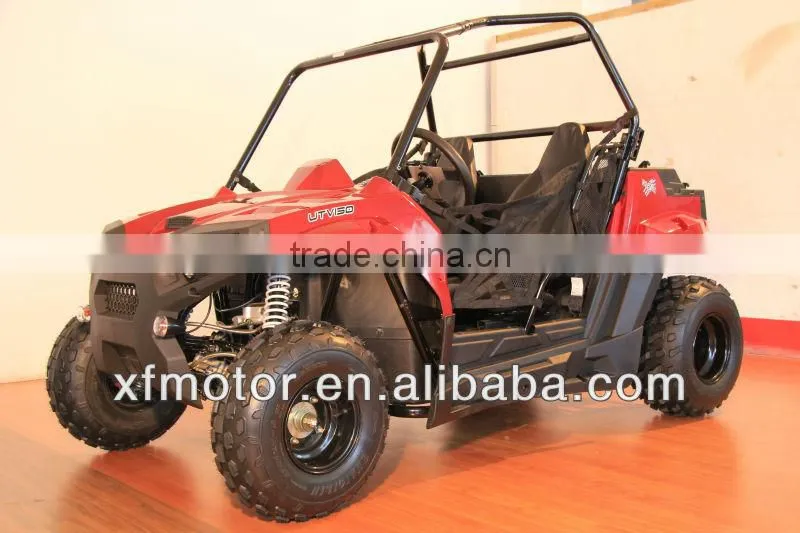

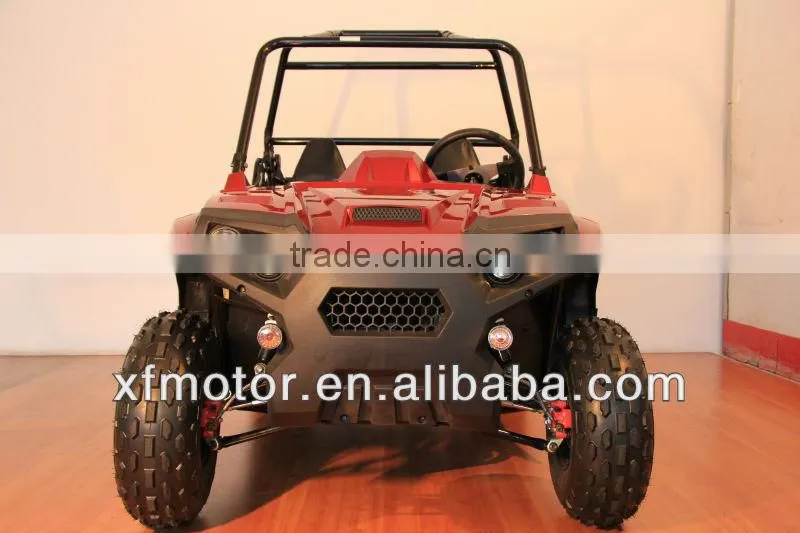

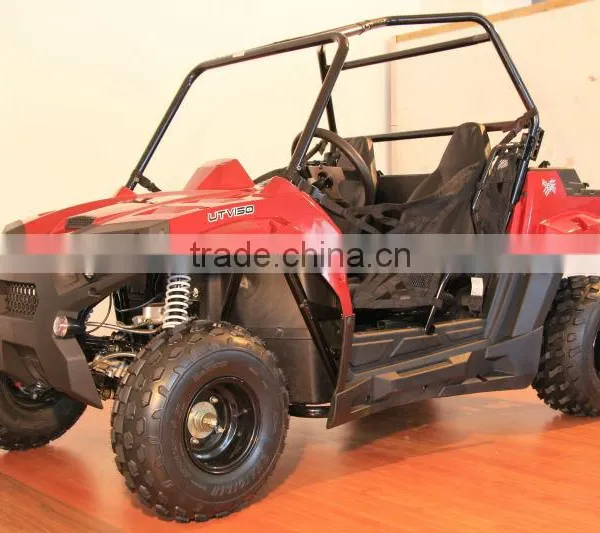

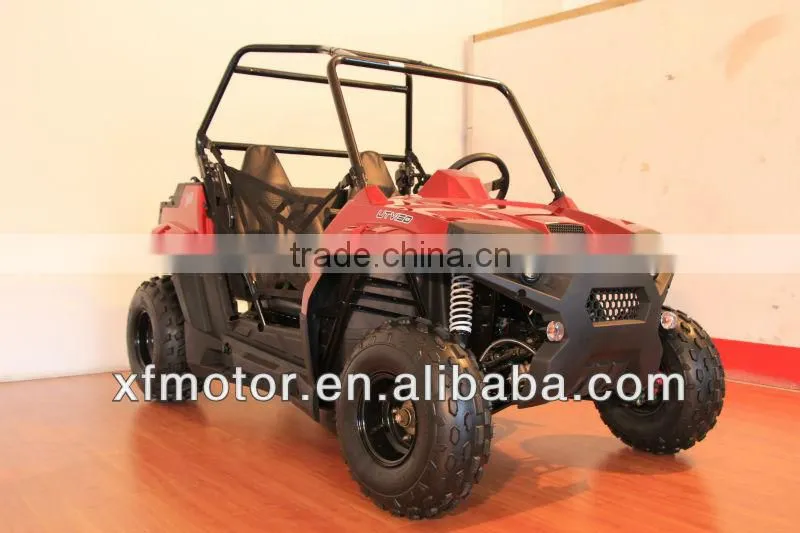

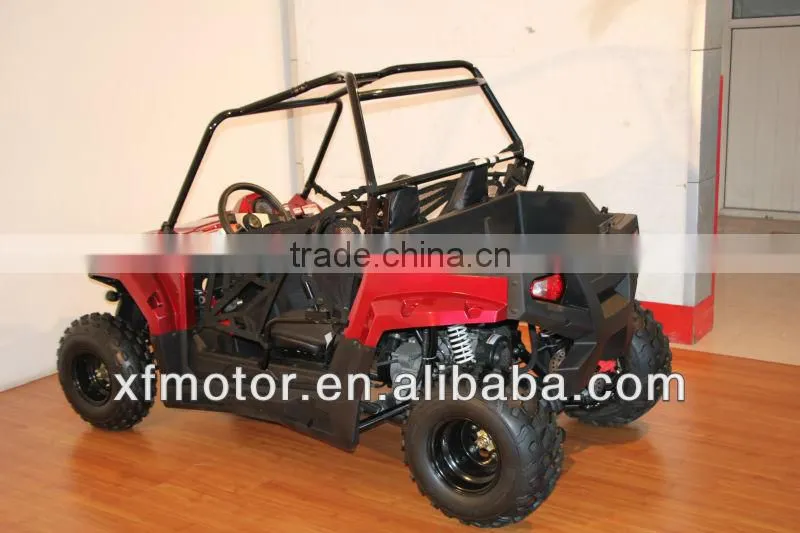

Utv 4x4

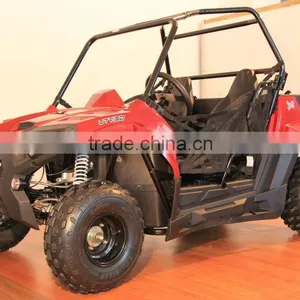

Utv 4x4 thumbnail-1
Utv 4x4 photo-1
Negotiable MOQ: 8 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
150cc
Engine Type:
4 Stroke
Contact Supplier Request Quote Chat Now
Shandong Pioneer Motorcycle Co., Ltd.
Gold Verified Supplier
5Yrs
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Displacement 150cc
Engine Type 4 Stroke
Transmission Type Automatic
Transmission System Chain Drive
Certification EPA
Brand Name PIONEER
Model Number UTV150

Specifications

utv 4x4
Single cylinder, 4-stroke, CVT
Electric starting
rear wheel drive

utv 4x4



150cc Air cooling engine
Single cylinder, 4-stroke, CVT
Electric starting
rear wheel drive



Item

Specification

Model name

UTV150

Engine type

Single cylinder, 4-stroke, CVT

Displacement

149.6CC

Bore×stroke

57.4X57.8

Compression ratio

9.5:1

Ignition

CDI

Cooling system

Air cooling

Starting system

Electric

Vehicle dimension(L×W×H)

2285mm x 1290mm x 840mm

Cargo bed(L×W×H)

410mm x 852mm x 220mm

Wheelbase

1650mm

Front tread

1020mm

Rear tread

965mm

Ground clearance

152mm

Seat height

500mm

Dry weight

245kg

Fuel capacity

9.5L

Cargo bed load capability

150kg

Towing capability

2000lb

Final Drive

Chain (rear wheel drive)

Brake system front/rear

Foot Activated,4 wheel hydraulicdisc

Suspension

F:Single A-arm   R:Swing arm

Steering

Gear box

Front tyre size

19×7-8

Front wheel size

8×5.5

Rear tyre size

20×10-9

Rear wheel size

9×8

Top speed

60km/h

Loading information

8  units/20″;   18  units/40″;

27   units/40HQ

Packing Size

2290mmx1300mmx855mm

Waterproof

0.2m

Max climbing gradient

15°

Min opernation temperature

-20°C(-4°F)

Max opernation temperature

40°C(104°F)

Max torque and rotate speed

9.8N.m(4000r/min)

Rated power and rotate speed

6.8kw(5500r/min)

 utv 4x4utv 4x4utv 4x4utv 4x4
