Specifications
towing tractor for airport:1.rated towing weight:7.3T
2.Maxlifting weight:1.5T
3.Maxlifting weight of full extending boom:8T

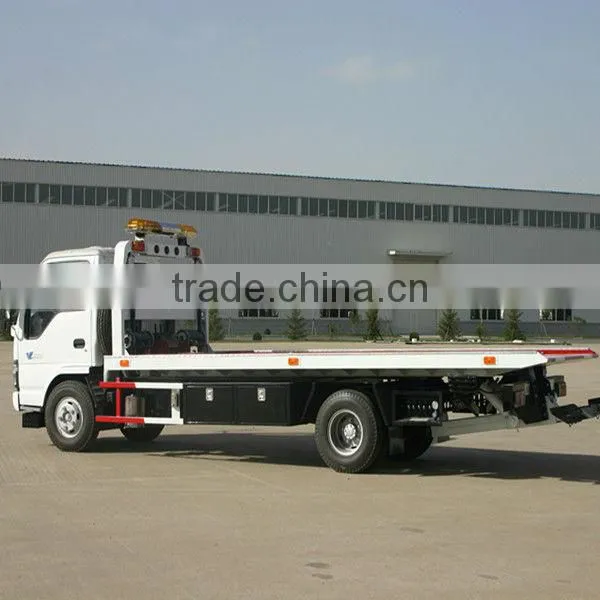

KaiFan Light-duty P Series (ISUZU) Towing Tractor For Airport
Working Condition:
1.Altitude: 0-4500m
2.Temperature: -35°C--+45°C
3.Relative humidity: 80%
4.Wind force: ≤8degree
Working Range :
KFM5072TQZ Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
Main Parameters
Items |
Unit |
Value |
|
Boom Structure |
Rated towing weight |
kg |
7300 |
Max. Lifting weight |
kg |
1500 |
|
Max. Lifting weight of full extending boom |
kg |
800 |
|
Effective length of boom |
mm |
1600 |
|
Extension traveling of boom |
mm |
1200 |
|
Elevation of boom (upper/ lower) |
° |
9~-10 |
|
Platform Structure |
Min. Elevation of full extending platform |
° |
8 |
Max. Loading of platform |
kg |
3000 |
|
External dimension of platform (length×width×height) |
mm |
5400×2140×57 |
|
Ground clearance of cage floor |
mm |
1014 |
|
Max. Pulling power of winch |
kg |
4000 |
|
Dia. Of steel cable |
mm |
10 |
|
Length of steel cable |
m |
25 |
|
Min. Speed of steel cable |
m/min |
4.5 |
|
|
Vehicle Parameters |
External dimension |
mm |
7460×2220×2460 |
Chassis model |
|
NKR77PLPACJAY |
|
Drive |
|
4×2 |
|
Axle base |
mm |
3815 |
|
The whole weight of empty load |
kg |
4170 |
|
Load of front axle of empty load |
kg |
1620 |
|
Load of rear axle of empty load |
kg |
2550 |
|
The whole weight of full load |
kg |
7300 |
|
Load of front axle of full load |
kg |
1950 |
|
Load of rear axle of full load |
kg |
5350 |
|
Wheel base (front/rear axle) |
mm |
1404/1425 |
|
Front suspension |
mm |
1015 |
|
Rear suspension |
mm |
2100 |
|
Approach angle |
º |
24 |
|
Departure angle |
º |
13 |
|
Max. Speed |
km/h |
≥95 |
|
Max. Grade ability |
% |
≥30 |
|
Min. Turning diameter |
m |
14.1 |
|
Min. Ground clearance |
mm |
190 |
|
Engine model |
- |
4KH1-TC |
|
Engine emission |
ml |
2999 |
|
Rated power |
kw/r/min |
96/3400 |
|
Max. Torque |
n·m/r/min |
280/1700 |
|
Fuel type |
|
Diesel |
|
Standard of emission |
|
EN III |
|
Tire size |
|
7.50-15,7.00-16 (option 7.50R15,7.00R16) |
|
Persons |
|
2 |
|
