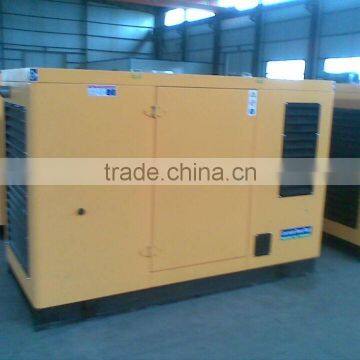

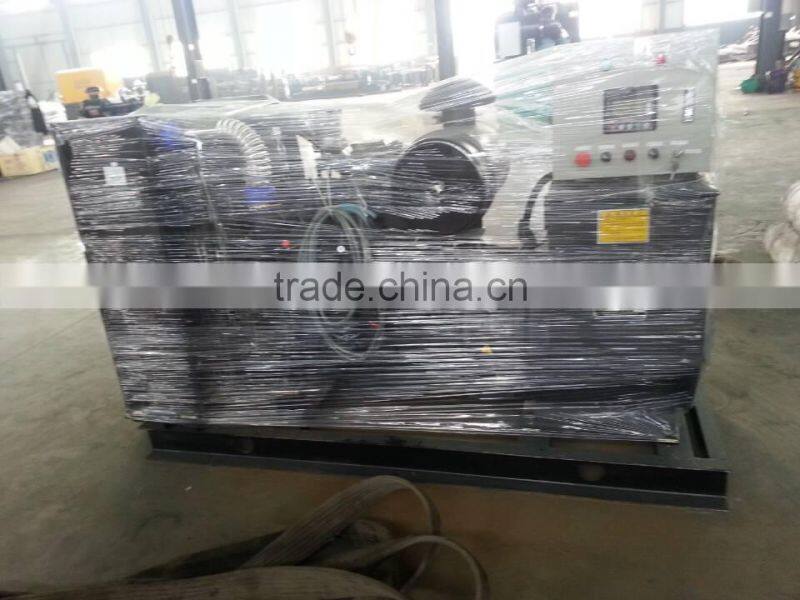

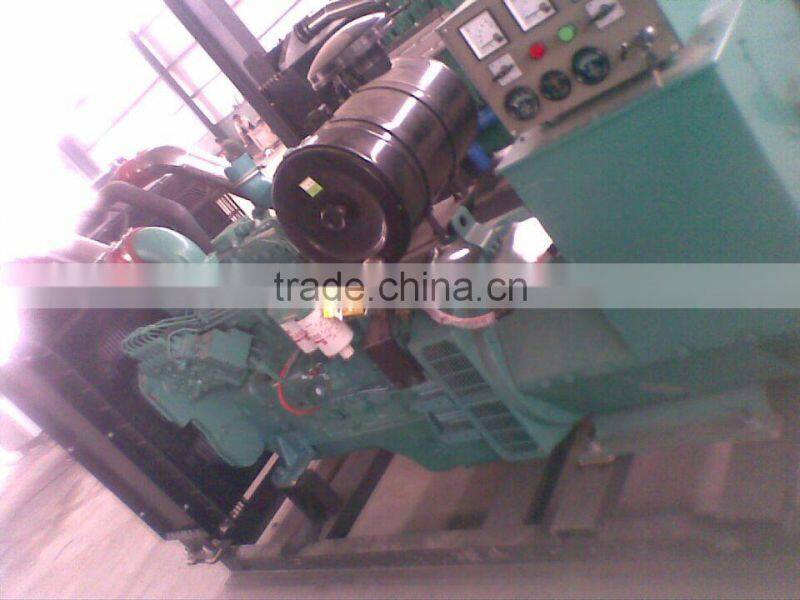

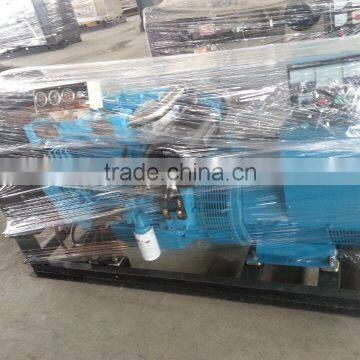

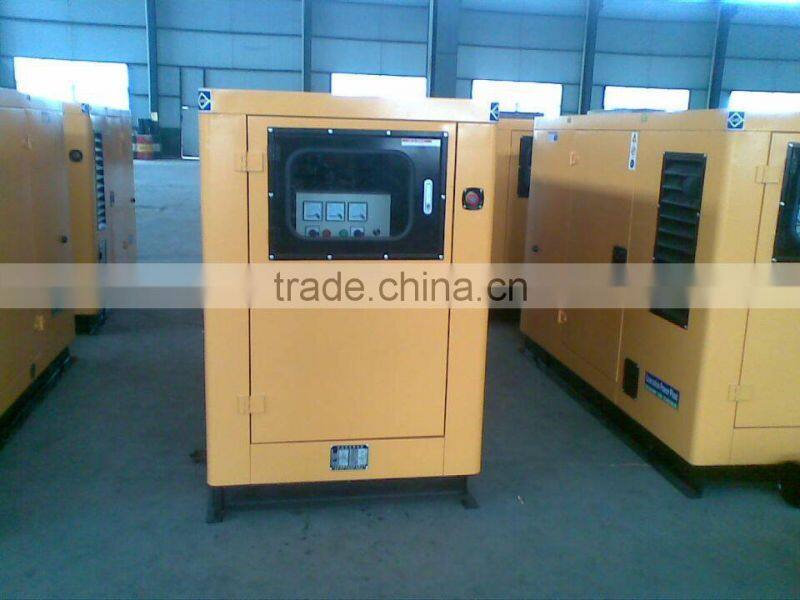

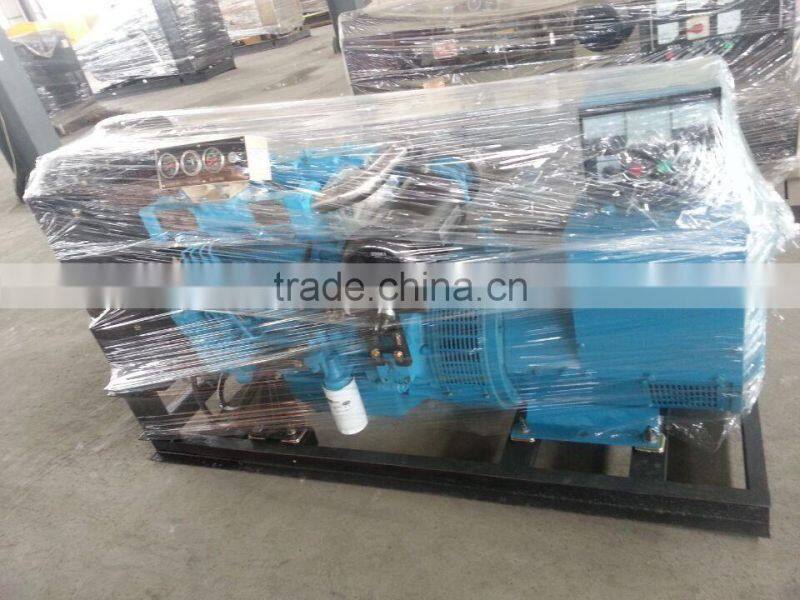

45KW Low Noise Power WEICHAI/YUCHAI Diesel Generator Set

Name: 45KW Low Noise Power WEICHAI/YUCHAI Diesel Generator Set
Brand: STAMFORD
SKU: 141684338
Availability: InStock

US$ 5,999 - 6,999 MOQ: 1 Set

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

STAMFORD

Model Number:

SDSTF-45KW

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name STAMFORD

Model Number SDSTF-45KW

Output Type AC Three Phase

Speed 1500r/min

Frequency 50HZ

Rated Power 45KW

Rated Voltage 230/400V

Rated Current 81A

45KW Low Noise Power WEICHAI/YUCHAI Diesel Generator Set

WEICHAI HUAFENG Diesel Generator Set DATA

Model	SDSTF-45kw
Output power (KW)	45
Rated voltage(V)	230/400
Rated current(A)	81
Rated frequency(Hz)	50
power factor	0.8
Steady state voltage regulation	≤±1%
The steady state frequency regulator	≤±1%
Stabilized voltage fluctuation rate	≤±0.5%
Voltage frequency volatility	≤±0.5%
Transient voltage regulation	-15%--+20%
Transient frequency adjustment rate	-10%--+10%
Voltage settling time	≤1S
Frequency stability time	≤3S
Power transmission method	electrical starting
Connection type	Single fulcrum steel plate connection
Waveforn distortion	sine wave, wave distortion<5%
Restrain radio interference	Phone influence coefficient TIF<50,Telephone harmonic coefficient THF<2%
External dimension(mm)	Naked generator sets size: 1880x720x1200 Low noise generator sets size:2400x1000x1560
Weight(kg)	850/900

DIESEL ENGINE

Model	PHF4056ZD1
Brand	WEICHAI HUAFENG
Structure	In-line 4 cylinder, four-stroke
Rated Power(KW)	56
Rotate speed (r/min)	1500
Number of cylinders	4
Speed regulation	mechanical speed governors
Starting mode	24VDC electrical starting, Equipped with silicon rectifier charging generator
Type of cooling	Water tank radiator, belt driving cooling fan, with Fan safety shield
Lubricating oil specification,grade	CD-40
Fuel specification,grade	national standard 0# diesel(Depending on local temperatures)
100% Load fuel consumption(g/kw.h)	≤200

GENERATOR

Model	SDSTF-45KW
Ways of excitation	Self excitation brushless(full copper)
Voltage regulating mode	AVR automatic voltage control
Nominal voltage(V)	230/400
Rated current(A)	81
Phase	3phase 4 wiring system
Number of poles	4
Level of protection	IP22
Insulation grade	H grade
No-load voltage adjusting range	≥±5%
