Home > Transportation > Trailer > Other Trailers > 12m Low-bed Semi-trailer

12m Low-bed Semi-trailer

Name: 12m Low-bed Semi-trailer
Brand: Sinotruk
SKU: 141684140
Availability: InStock

US$ 12,500 - 15,800 MOQ: 1 Set

Key Specifications

Get Latest Price

Max Payload:

300000

Size:

12,000x3000x1000

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port in China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Max Payload 300000

Size 12,000x3000x1000

Place of Origin Shandong, China

Brand Name Sinotruk

Specifications

Length 12000mm
Width 3,000mm
Height 1,000mm

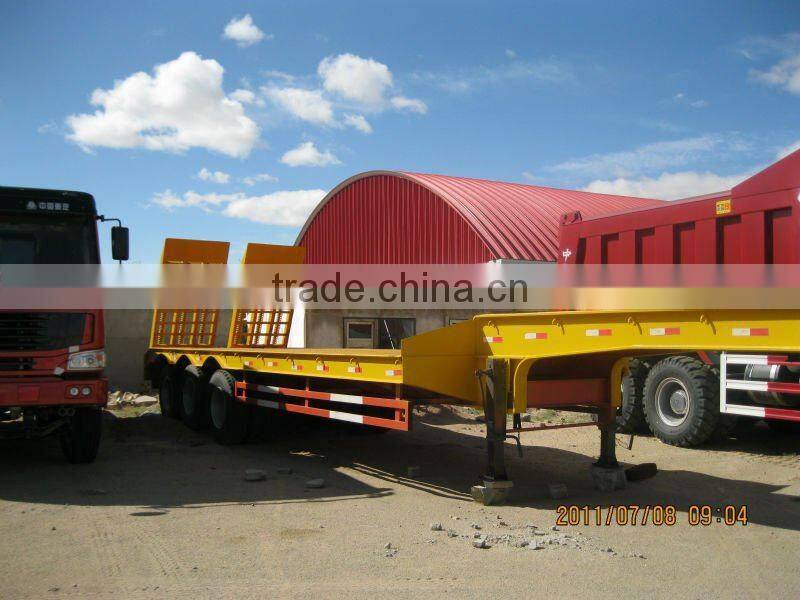

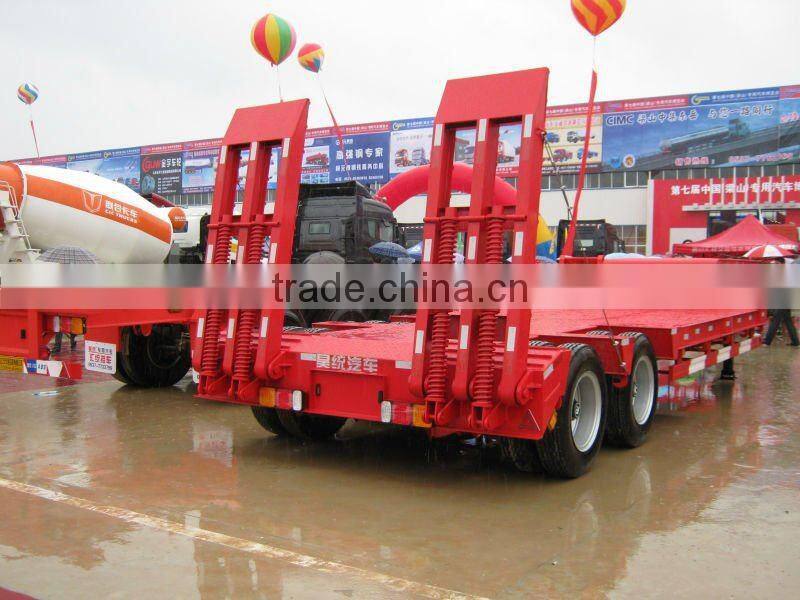

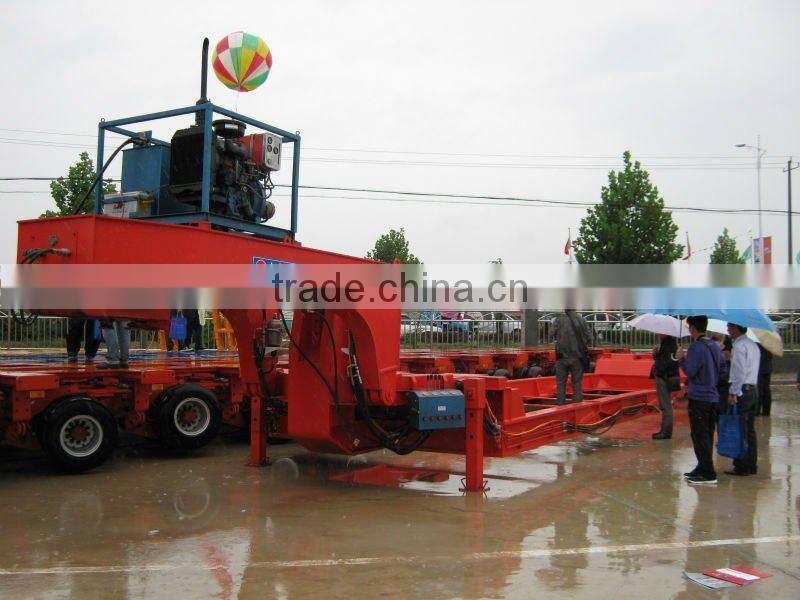

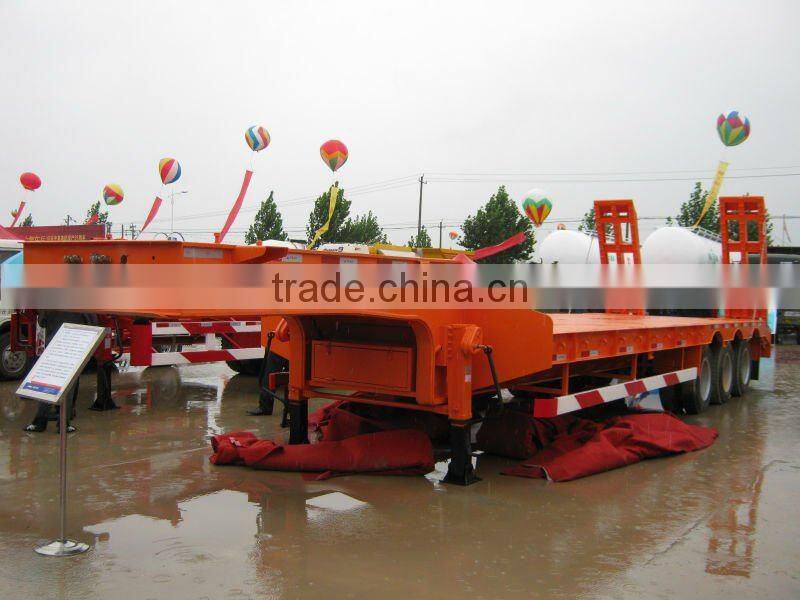

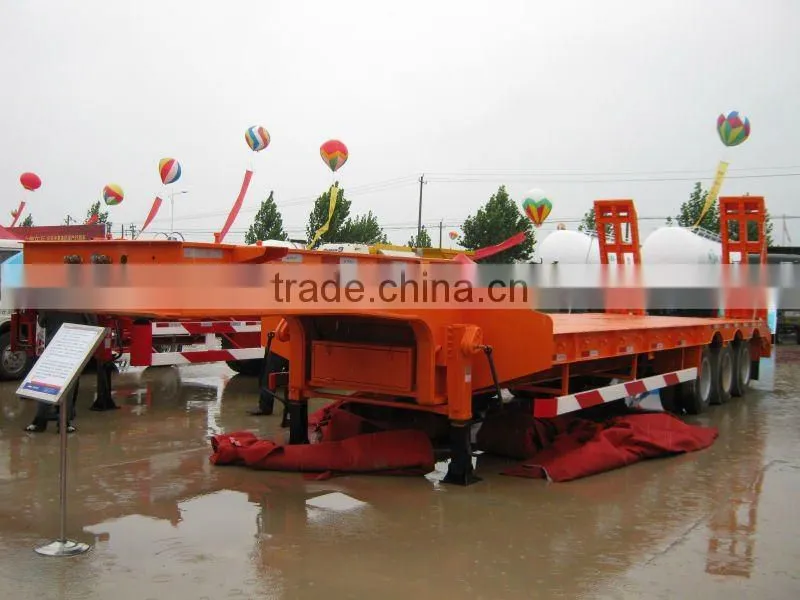

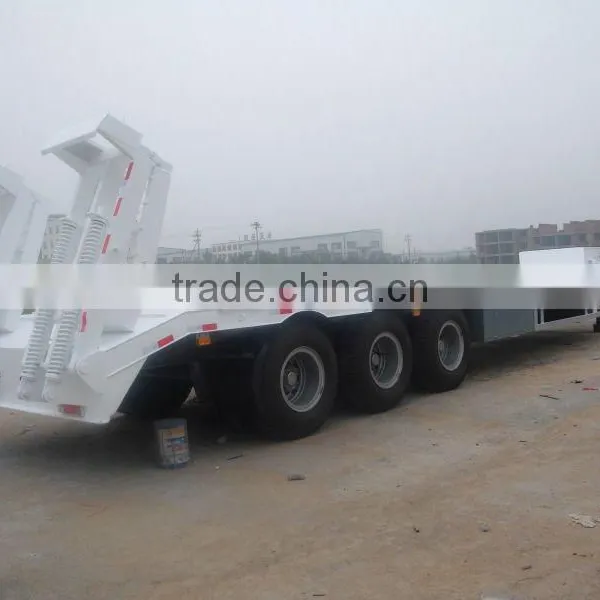

12mlow-bed semi-trailer

Widely used for agricultural equipments such as excavators, harvester and planter to climb onto the trailer from the rear ramps, which can be either manual or automatic cylinder-operation.

Dimension
Length	12,000mm
Width	3,000mm
Height	1,000mm
Kingpin position	500mm
Wheel base	10,500+1,310+1,310mm
Wheel track	865mm
Weight
Curb weight	12,000kg
Loading capacity	28,000kg
Gross weight	40,000kg
Frame
Main rail	500mm
Top flange	*16200mm**
Bottom flange	*20200mm**
Web	12mm
Main rail center	1,615mm
Coaming	22# channel
Kingpin size	90# Standard
Floor	3mm checker plate
Landing leg	Domestic brand 28T
Painting	Yellow
Suspension system
Suspension type	Rigid suspension
Axle	Argo bogie - three lines six axles
Rim	6.5-16 Qty: 24
Tire	Double coin 8.25R16 Qty: 24
Braking system
Braking type	Air braking
Electrical system
7-pin socket	24V
Lamps	Standard
Accessory
Side guard	Standard
Toolbox	On gooseneck
D-ring	28 pieces
Flash alarm	Two near rear ramps
Options	Electric engine pump, deck extension and HYD ramps

Overall dimension(mm)	13000×3000×3280	Gross weight(Kg)	39550
King pin	#90	Rated loading capacity(Kg)	30000-55000
Approach/departure angle	-/15	Curb weight(Kg)	9550
Front/rear suspension(mm)	-/1670	Supporting leg	2 / JOST
Axle	3	Tyre	12
Leaf spring	-/10/10/10,-/7/7/7	Axle load(kg)	*-/240003**
Axle space(mm)	8110+1310+1310	Axle specification	Dong Feng/ Fuwa / BPW
Tyre size	8.25R20 16PR, 8.25R20 14PR	Rear wheelbase(mm)	2180/2180/2180
Deck ground clearence	1150mm/880mm	Suspension	Air spring chamber
