Home > Transportation > Truck > Dump Truck > Howo Series 336 Hp 6X4 Sinotruck Dump Truck

Howo Series 336 Hp 6X4 Sinotruck Dump Truck

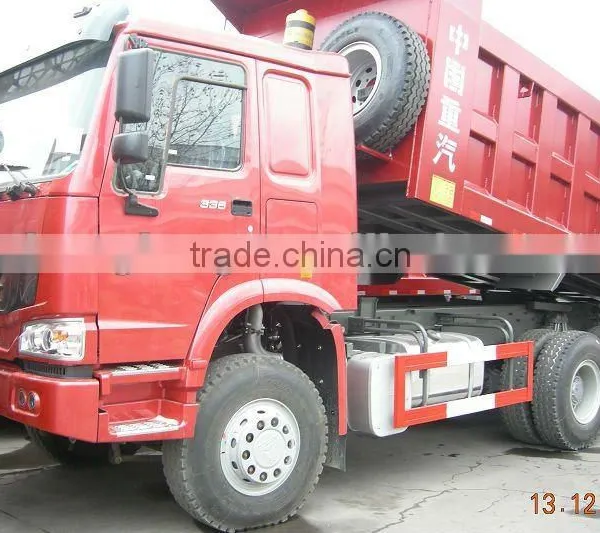

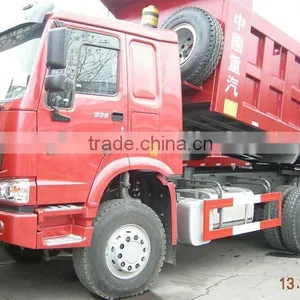

Howo Series 336 Hp 6X4 Sinotruck Dump Truck photo-1
US$ 35,990 - 39,990 MOQ: 1 Set
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Capacity (Load):
21 - 30t
Horsepower:
251 - 350hp
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Drive Wheel 6x4
Capacity (Load) 21 - 30t
Horsepower 251 - 350hp
Condition New
Transmission Type Manual
Emission Standard Euro 2
Fuel Type Diesel
Engine Capacity 6 - 8L
Gross Vehicle Weight 32000
Place of Origin Shandong, China
Brand Name SINOTRUCK
Model Number ZZ3257N3647B /NOB(H7/336/K36/6X4)
Dimensions (L x W x H) (mm) 8214x2496x3370mm;

Specifications

Engine:CNHTC brand WD615.69, 336hp,
EruoII emission standard

Howo Series 336 Hp 6X4 Sinotruck Dump Truck  (H7/336/K36/6×4)

Engine:CNHTC brand WD615.69, 336hp,

EruoII emission standard

4-stroke direct injection diesel engine

6-cylider in-line with water cooling,turbo-charging and intercooling

Maximum output:336HP(247KW) at 2200rpm according to DIN

Maximum torque:1350     Nm at 1300-1600rpm

Displacement:9.726L

Bore:126mm

Stroke:130mm

Steering:ZF power steering,model ZF8098,hydraulic steering with power assistance

Cab:Stardard cab,all-steel forward control,55°hydraulically tiltable to the front,2-arm windscreen wiper system with three speeds,Iaminated windscreen with casted-in radio aerial,hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,with heating and ventilating system,exterior sun visor,adjustable roof flap,stereo radio/cassette recorder,safty belts,adjustable steering wheel,air horn,air-conditioner,with 4-point support fully floating suspension+shock absorbers



HOWO 6×4 Dump Truck(H7/336/K36/6×4)

Engine:CNHTC brand WD615.96, 336hp

Transmission:9 speed

Steering:ZF8098 hydraulic steering with power assistance

Cab:HW70 standard cab,, air conditioner, no bunk

Rim/Tyres:12.00-20 bias tyre

Brake:NO ABS system

Carriage Internal Dimensions:5400×2300x 1500mm

Steel thickness of Carriage:Floor: 8mm, Side:4mm

Hydraulic Lift of Carriage:F model (ventral lift)

English panel

Color: howo red (optional)

Whole truck dimensions: 8214x2496x3370mm;

Dead weight:13060

Gross vehicle weight:32000

Fuel Tank: 300L
