HOWO 6x4 290hp Dump Truck ZZ3257M3241

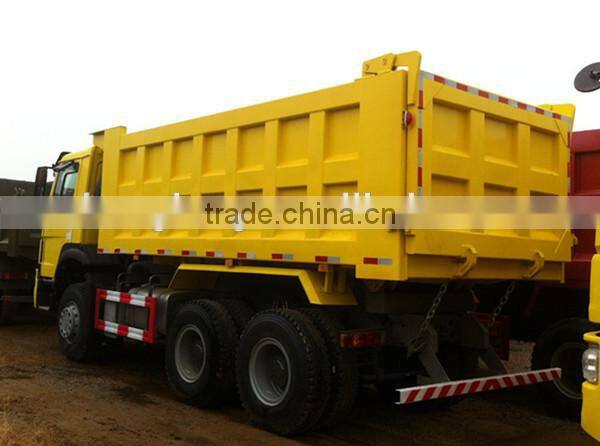

HOWO 6x4 290hp Dump Truck ZZ3257M3241 photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Drive Wheel:
6x4
Horsepower:
251 - 350hp
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Drive Wheel 6x4
Horsepower 251 - 350hp
Condition New
Transmission Type Automatic
Place of Origin Shandong, China
Brand Name SINOTUCK
Model Number ZZ3257M3241
Dimensions (L x W x H) (mm) 7934x2496x170

HOWO 6x4 290hp Dump Truck ZZ3257M3241



HOWO HEAVY DUTY TRUCK TECHNOLOGY PROMOTION

Adopting the most nowadays internatinally advanced engine and transmission assembly technique route, i. E. High torque common trail engine of broad speed belt+manual and automatic transmission (SMART SHIFT) + small speed ratio driving bridge. This brings chinese trucks into epochal automatic shift stage and makes the fuel consumption 3-5% lower than that of manual shift

1. Oil Saving---two kinds of technology route (electric control common rail and EGR), engine characteristic performance curve
Improvement, entire car optimizing assembly, AMT automatic transmission case, empty / full load switch, the latest streamline driving cab reducing wind resistance effectively, standard tractor reducing self weight by 200--500kg, and etc.
2. Safety---disc brake, tubeless tire, exhaust valve brake technique application, rear axle brake shoe widening, and etc.
3. Driving comfort---AMT automatic transmission case, quatre suspension driving cab, disc brake solving brake sway in case of over load, and etc
4. Reliability---all the assembly has passed extremely harsh condition experiments and the verification of over 2 years in bad use conditon.
5. Low application cost---large use quantity, complete service and accessory networks and low price.

HOWO 6x4 290hp Stock Dump Truck descriptions & specifications

Item

 Descriptions & Specifications

Main model

HOWO 6×4 Dump Truck ZZ3257M3241 (LHD)

Engine

Brand

SINOTRUK



Model

WD615.87



Type

 6-cylinder in-line with water cooling,

turbo-charging and inter-cooling



Horse Power(HP)

290HP



Emission standard

Euro II

Cabin

Model

HOWO 70



Type

Standard cabin, no sleeper,

adjustable steering wheel, VDO panel,

 safe-belt with 2 locks

Transmission

HW15710,10 speeds, 2 Reverse ;HW50 power takeoff

Front axle

HF9 ,drum brake

Rear driving axle

HC16(ration:5.73)

Steering system

ZF8098 steering gear box, ZF power steering pump

Brake system

Driving brake: dual circuit compress air brake; parking brake:

spring energy, compressed air operating at rear wheel; auxiliary:

EVB+engine exhaust

Electric system

CAN bus control , voltage:24V; alternator: 1540W; starter: 7.5KW; battery:

12V/165Ah, 2pcs

Vehicle Dimensions

Overall size (L x W x H)

7934×2496×3170 mm



Axle base

3225+1350 mm



Number of axles

3

Weight in KGS

Gross vehicle weight

25000kg



Rated loading weight

12460kg

Carriage

Carriage Internal Dimensions

5400×2300x 1500mm



Steel thickness of Carriage

Floor: 8mm, Side:6mm



Hydraulic Lift of Carriage

F model (ventral lift)

Max.driving speed

75 km/h

Rim/Tyres

315/80R22.5 Tubeless tires

Fuel tank (L)

300L

Color

 howo white



 HOWO 6x4 290hp Dump Truck ZZ3257M3241

  HOWO 6x4 290hp Dump Truck ZZ3257M3241

You can optional:
SINOTRUK SERIES TRUCK:
HOWO Dump truck, 4x2, 6x4, 8x4
HOWO Tractor truck, 4x2, 6x4
HOWO Cargo truck, 4x2, 6x4, 8x4
HOWO Concrete mixer truck, 7m3, 9m3, 12m3
HOWO Water tank truck, Oil tank truck
HOWO Sewage suction truck, compressed garbage truck
HOWO Truck mounted crane, 5t, 10t, 20t
HOWO Semi-trailer: Low-bed, container transport, box, vehicle transport, tanker
XCMG SERIES CONSTRUCTION MACHINE:
XCMG Truck Crane, 25ton, 30ton, 50ton
XCMG Truck Mounted Crane 5t, 10t, 20t
XCMG Wheel Loader, 3ton LW300F, 5ton, ZL50G
XCMG Compactor, Motor Grader etc.
