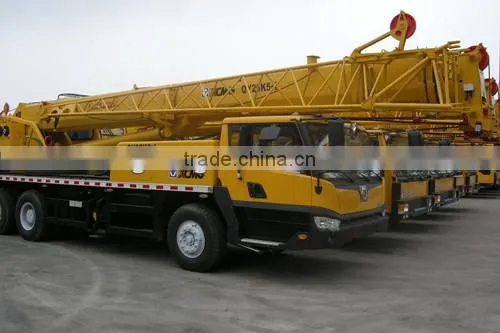

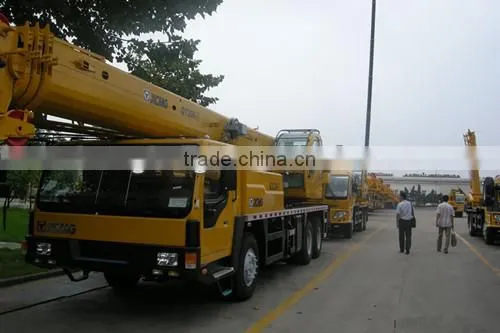

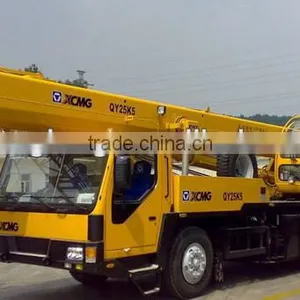

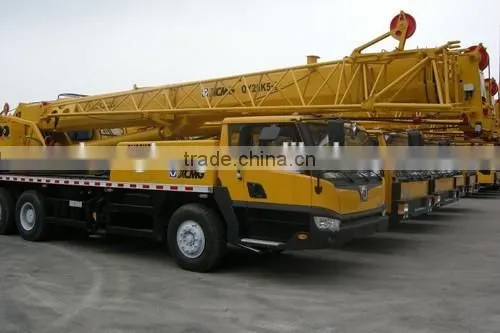

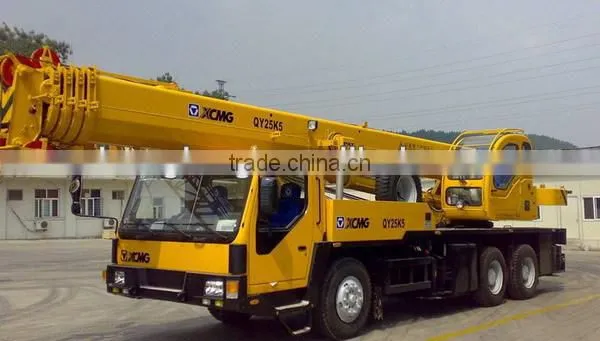

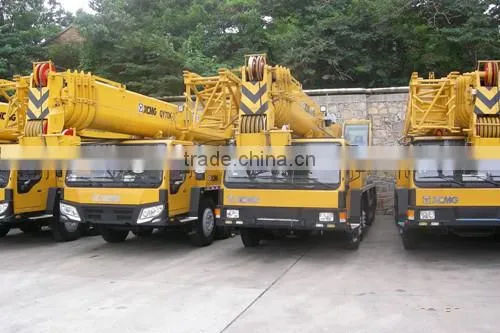

25 Ton XCMG Truck Crane XCMG QY25K5 Truck Crane

Name: 25 Ton XCMG Truck Crane XCMG QY25K5 Truck Crane
Brand: XCMG
SKU: 141683158
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

truck crane

Rated Loading Capacity:

25 ton truck crane

Jinan Shanglong International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application truck crane

Rated Loading Capacity 25 ton truck crane

Rated Lifting Moment crane

Max. Lifting Load 25t truck crane

Place of Origin Shandong, China

Brand Name XCMG

Model Number QY25K5 truck crane

25 ton XCMG truck crane /XCMG QY25K5 truck crane

Product Description

Feature of 25 ton truck crane xcmg truck crane QY25K5

Leading performance: the boom length in full extension is 39.5m, the performance leading in 5%.

The grade ability is 40%, which make the machine have good road adaptability. truck crane

•Truck crane unique U boom and plug-in boom head make the load-carrying capacity more balanced, and lift more smoothly.truck crane

•The unique stretch and retract technique prevents the misoperation; the stretch and retract of the boom is safer crane

•The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.truck crane

•Six unique technologies supply the quality assurance, and make the products keep a high value.truck crane

•The innovative jib system adopts embedded block, truck crane 25ton truck crane

Parameter of 25 ton xcmg truck crane QY25K5 truck crane

Dimension	Unit	QY25K5 truck crane
Overall length	mm	12300
Overall width	mm	2500
Overall height	mm	3350
Weight
Total weight in travel	kg	31750
Front axle load	kg	6550
Rear axle load	kg	25200
Power
Engine model		SC8DK280Q3	WD615.329
Engine rated power	kW/(r/min)	206/2200	213/2200
Engine rated torque	N.m/(r/min)	1112/1400	1160/1400
Travel
Max. travel speed	km/h	80
Min. turning diameter	m	22
Min. ground clearance	mm	260
Approach angle	°	16
Departure angle	°	13
Max. grade ability	%	40
Fuel consumption for 100km	L	≈37
Max. rated total lifting capacity	t	25
Min. rated working radius	mm	3000
Turning radius at turntable tail	m	3.065
Max. lifting torque	kN.m	961
Base boom	m	10.4
Fully extended boom	m	39.5
Fully extended boom+jib	m	47.8
Longitudinal outrigger span	m	5.14
Lateral outrigger span	m	6
Boom luffing time	s	68
Boom full extension time	s	150
Max. swing speed	r/min	2.5
Max. speed of main winch (single rope) (no load)	m/min	125
Max. speed of aux. winch (single rope) (no load)	m/min	125
