Specifications
Axl:HC16, overall cast steel axle and Han Ruisen disconnect suspension, HF9 drumGearbox:HW15710.10 block transmission

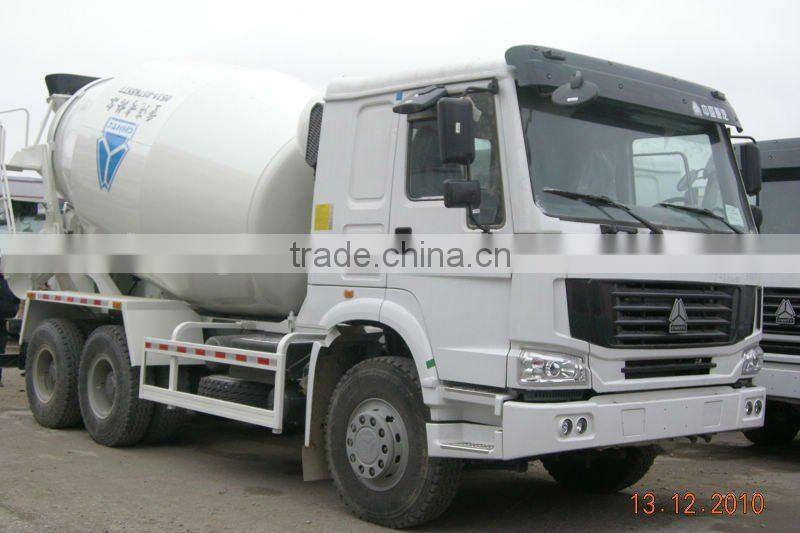

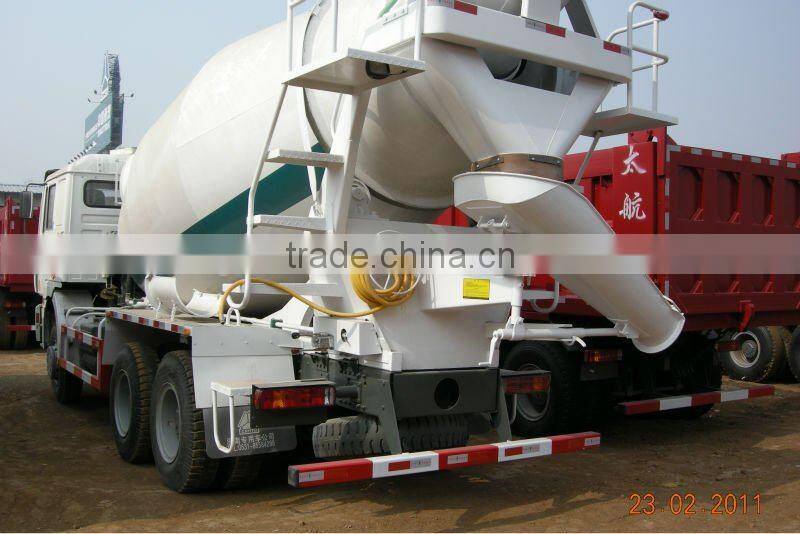

10 cube Sinotruk Howo Concrete Mixer truck
HW76 median and long cab are equipped with big wind deflector of 2m long and 1.6m wide; and the side wind deflector is optional, which can decrease the wind resistance efficiently to realize fuel saving effect.
New designed headlamp is harmonious with the cab molding and makes the cab more vivid. It adopts the international popular crystal lamp shell with high brightness, strong penetrability and long life (HID lamp is optional). The lamp cabin is rotatable so it is easy to be maintained.
Cabin | Chassis model: ZZ1257N4347C | ||
HW76 cab, with air condition. | |||
Vehicle Main Dimensions | L×W×H(mm) | 10240*2500*3990 | |
Wheel base(mm) | 4235+1350 | ||
Wheel track (mm) | 1840 | ||
Approach/Departure angle(°) | 19/27 | ||
Weight in KGS | GVW (kg) | 25000 | |
Loading Capacity (kg) | 15570 | ||
Front axles loading capacity | 1×7000 | ||
Rear axles loading capacity | 2×9000 | ||
Max.Drinving Speed (km/h) | 90 | ||
Engine | Brand | HOWO | |
Model | WD615.95 | ||
Horse Power(HP) | 336 HP/375HP | ||
Emission Standard | Euro II | ||
Axle | HC16, overall cast steel axle and Han Ruisen disconnect suspension, HF9 drum | ||
Gearbox | HW15710.10 block transmission | ||
Clutch | Reinforced diaphgragm clutch, diameter 430mm | ||
Steering Gear | ZF8098, original made in German.Power steering, hydraulic steering with power assistance. | ||
Fuel Tank(L) | 300L | ||
Tire | 12/12R/11/11R | ||
Brakes | Service brake: dual circuit compressed air brake;Parking brake: spring enengy, compressed air operating on rear wheels;Auxillary brake: engine exhaust valve brake | ||
Drum specifications | Mixing volume(m³) | 8/9/10/12/14 | |
Gradient of the drum(°) | 12°/13° | ||
Retational speed of the drum (r/min) | 0~14 | ||
Charging/Discharging rate (m³/min) | ≥3.0;≥2.1 | ||
Water supply system | water mode:air pressure | ||
HYD.drive system | Decelerator | Italy Bonfiglioli/577L (above 12m3 adopt 580L) | |
Motor | American EATON/5433-138 (above 12m3 adopt 6433—042) | ||
Pump | American EATON /5423-518 (above 12m3 adopt 6423—279) | ||
