Specifications
SINTRUK HOWO 8x4 Cargo Truck1.High load capacity, low fuel consumption.
2.Advanced technology.
3.Safe and reliabl

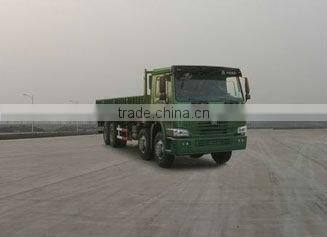

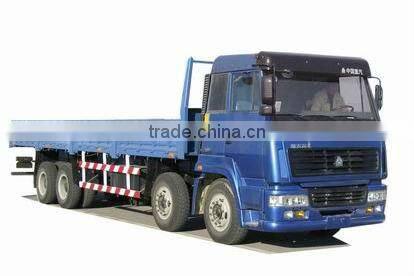

8x4 Diesel 290hp lengthen cabin Cargo Truck
Main cargo truck model |
ZZ1317M3861W |
|||||
Cabin |
Model |
HW76 |
Front/rear suspension |
mm |
1500/(2732/2305) |
|
Engine |
Model |
WD615.87 |
Wheelbase(front/rear) |
mm |
2022/1850 |
|
Rated power (kW/rpm) |
213/2200 |
Min.ground clearance |
mm |
267 |
||
Max.torque (Nm/rpm) |
1160/1100-1600 |
Approach/departure angle |
° |
16/(15/20) |
||
Discharge (L) |
9.726 |
Max.speed |
km/h |
102 |
||
Rear driving axle |
|
HW 1697 |
Max.climbing capacity |
% |
50 |
|
Steering system |
|
ZF8098 |
Min.turning circle |
m |
24 |
|
Tyre |
|
12.00-20;11.00-20 available |
Cargo box inside size |
mm |
8480*2326*600 |
|
Fuel tank capacity |
L |
400 |
Cargo box volume |
mm |
11.8 |
|
Payload |
kg |
13040/10910 |
Cargo box height avilable |
m^3 |
800(15.7) |
|
Gross vehicle weight |
kg |
31000 |
Remark |
|
WD615.62 available |
|
Rated loading weight |
kg |
17830;17700 available |
Chassis size |
mm |
10755*2496*3025 |
|
Overall size |
mm |
11182*2496*3115 |
Axle base |
mm |
1800+3775+1400 |
|
1. Multiple security and reliability represent it's leading position in heay-duty truck industry in China.
2. The tank body uses the latest design concept, the whole body adopts the lightweight structure and streamlined design, and is made of pollution, and high safety.
3. Equipped with Hayward hydraulic systerm it is the latest product with the features of value for money and security and reliability in recent times.
If you want to know more , welcome to contact us:
/
Phone: 86 15165120181
alibaba: cn209754450
