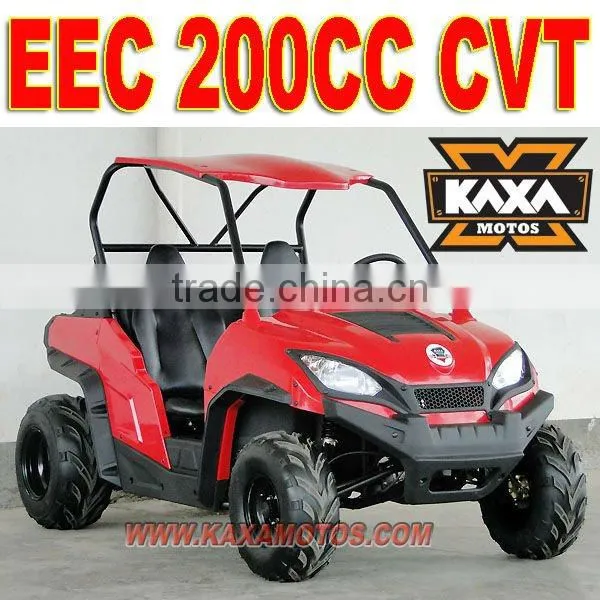

EEC 200cc Vehicle UTV

Specifications

Kids UTV 200cc EEC/COC
Automatic CVT Oil Cooled + Reverse
Hydraulic Disc Brakes
8"/10" Off Road Tyres
Max 11HP & 60KM/H

This vehicle has EEC/COC approved for on road legal use in Europe.

ENGINE
Engine Type: 200cc Automatic CVT with reverse, Single Cylinder, Oil-Cooled, 4-Stroke
Max Power: 7.6kw/7000  r/min
Max Torque: 10.2N.m/5000  r/min
Bore x Stroke (mm): 57.4x57.8
Displacement (cc): 168.9cc/200
Compression Ratio: 9.5:1
Ignition Type DC: C.D.I
Carburetion Type: PD24J
Maximum Speed(km/h): 60 km/h
Starter: Electric starter



TRANSMISSION
Transmission Type: Automatic CVT F/N/R
Primary Drive (Rear Wheel): Chain
Reverse: Yes

WHEEL & TIRES
Front Tire: 19 x 7 - 8
Rear Tire: 20 x 10 - 10



BRAKES
Front Brake Type: Twin Hydraulic Disc Brakes
Rear Brake Type: Single Hydraulic Disc Brake

SUSPENSION

Front Suspension: Twin Hydraulic Spring Shocks
Rear Suspension: Twin Hydraulic Spring Shocks

TECHNICAL SPECIFICATIONS
Vehicle Dimensions (mm): 2140 x 1200 x 1450
Ground Clearance (mm): 200
Wheelbase (mm): 1700
Minimum Turning Radius (mm): 4000
Net Weight (kg): 220
Fuel capacity (L): 8



SEATS
Seat Height (mm): 540
Number of Seats: 2



LIGHTS
Headlight: Yes
Turning Light: Yes
Brake Light: Yes
Horn: Yes



COLOR
Standard Colors: Red, Blue, Black, Army Green, Orange, Yellow and White.



LOADING
Packing Size (mm): 2260 x 1350 x 840

Container Quantity
1 x 20'FT Container: 12PCS
1 x 40'HQ Container: 30PCS
