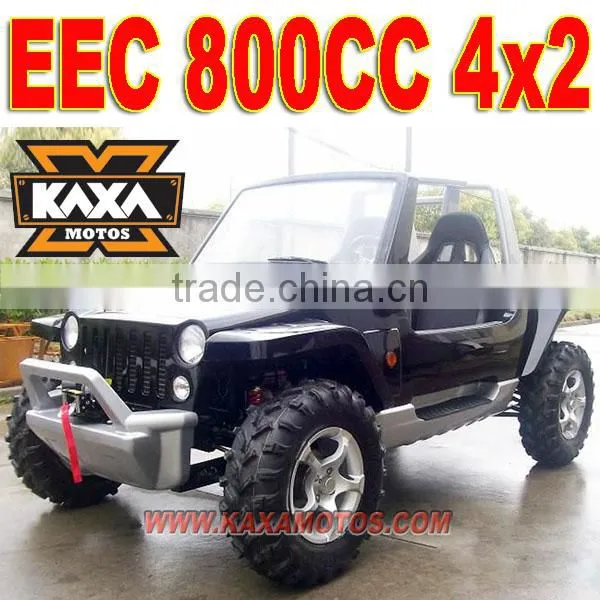

ATV 800cc

ATV 800cc thumbnail-1
ATV 800cc photo-1
US$ 5,500 - 6,500 MOQ: 2 Units
Key Specifications
Get Latest Price
Brand Name:
Kaxa Mots
Place of Origin:
Zhejiang, China
Model Number:
KXU-13
Contact Supplier Request Quote Chat Now
Zhejiang Kaxa Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Kaxa Mots
Place of Origin Zhejiang, China
Model Number KXU-13
Transmission Type Automatic

Specifications

CHERY Engine Manual Clutch 4 Speed
Shaft Drive 4x2WD
Max 53HP & 85km
Steel Body for Heavy Duty use
Independent Suspension

Specification:
Vehicle Dimension: 3130 x 1620 x 1545 mm
Wheelbase: 2180mm
Front Track: 1340mm
Rear Track: 1350mm
Ground Clearance: 240mm

Engin Type: CHERY Brand L3, 12 valves, DOHC
Engine capacity: 800cc
Bore Stroke: 72mm X 66.5mm
Corrected compression ratio: 9.5
Max out put power: 39kw/6000rpm
MaX Torque: 70Nm/3500-4000N.m/r/min
Starting: Electric, <10s
Ignition: ECU
Lubrication: SAE 10W/30 SF API
Transmission: Manual Clutch 4 forwarder gears With reverse
Maximum load: Double seats/50Kg
Fuel tank: 23L
Climbing: 20-25
Top speed: 85KM/h (or limited as customers require)
Front, Rear brake: Hydraulic disc, right foot control
Front/rear tire: AT27x8-14 / AT27x11-14
Front/rear Suspension: Independent Dual A-Arm
Final Drive: Shaft Drive

Carton dimensions: 2950 x 2115 x 895mm
N.W.: 550kg
G.W.: 640kg
Qty/20GP: 4 units
Qty/40HQ: 11 units

This vehicle has EEC/COC certificate for road legal use in Europe.

Available options for this vehicle as follows,so you can choose it freely.
1). Colors: Buick red/Ferrari red/orange: 80 USD (White/black: free)
2). Winch: 100 USD (Mile marker winch: 180 USD)
3). Spare wheel with support: 180 USD
4). Cab enclosure including roof and doors: 80 USD
5). Memory stick stereo system with bass sub and dash speaker: 80 USD
6). Stainless Steel muffler: 60 USD (Steel one is standard piece)
7). Towing ball: 10 USD
8). Towing ball with cable: 35 USD
9). Sun-F brand tires: 130 USD; Wanda brand tires: 130 USD



ATV 800ccATV 800ccATV 800ccATV 800ccATV 800ccATV 800cc

ATV 800ccATV 800ccATV 800ccATV 800ccATV 800cc

ATV 800ccATV 800ccATV 800ccATV 800cc
