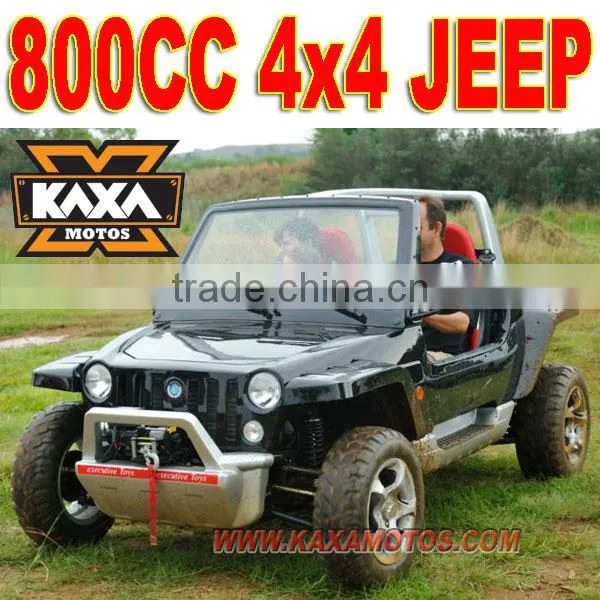

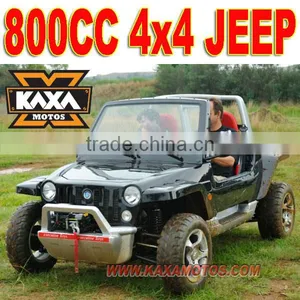

Help Center800cc UTV
Related Products
Specifications
CHERY Engine Manual Clutch 5 SpeedShaft Drive 4x4WD
Max 53HP & 85km
Steel Body for Heavy Duty use
Independent Suspension
Specification:
Vehicle Dimension: 3130 x 1640 x 1550 mm
Wheelbase: 2215mm
Front Track: 1330mm
Rear Track: 1365mm
Ground Clearance: 250mm
Engin Type: CHERY Brand L3, 12 valves, DOHC
Engine capacity: 800cc
Bore Stroke: 72mm X 66.5mm
Corrected compression ratio: 9.5
Max out put power: 39kw/6000rpm
MaX Torque: 70Nm/3500-4000N.m/r/min
Starting: Electric, <10s
Ignition: ECU
Lubrication: SAE 10W/30 SF API
Transmission: Manual Clutch 5 forwarder gears With reverse
Maximum load: Double seats/50Kg
Fuel tank: 23L
Climbing: 20-25
Top speed: 85KM/h (or limited as customers require)
Front, Rear brake: Hydraulic disc, right foot control
Front/rear tire: AT27x8-14 / AT27x11-14
Front/rear Suspension: Independent Dual A-Arm
Final Drive: Shaft Drive
Carton dimensions: 2950 x 2115 x 895mm
N.W.: 655kg
G.W.: 745kg
Qty/20GP: 4 units
Qty/40HQ: 11 units
Available options for this vehicle as follows,so you can choose it freely.
1). Colors: Buick red/Ferrari red/orange: 80 USD (White/black: free)
2). Winch: 100 USD (Mile marker winch: 180 USD)
3). Spare wheel with support: 180 USD
4). Cab enclosure including roof and doors: 80 USD
5). Memory stick stereo system with bass sub and dash speaker: 80 USD
6). Stainless Steel muffler: 60 USD (Steel one is standard piece)
7). Towing ball: 10 USD
8). Towing ball with cable: 35 USD
9). Sun-F brand tires: 130 USD; Wanda brand tires: 130 USD
