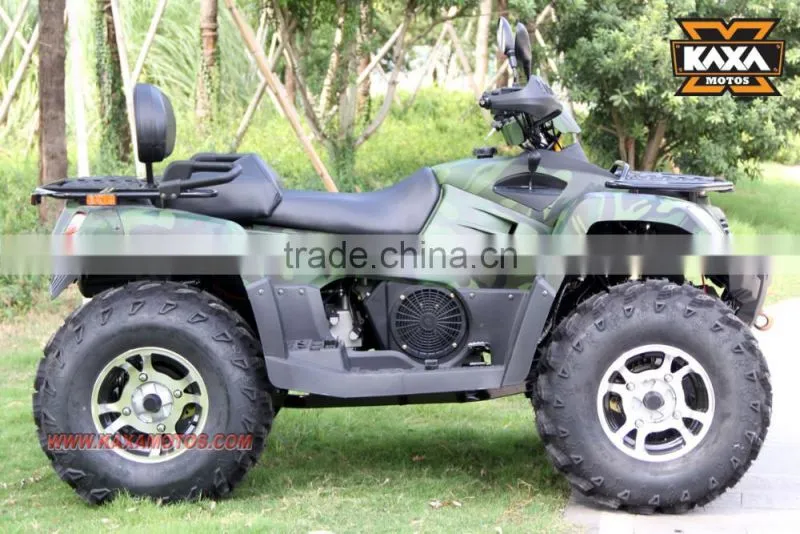

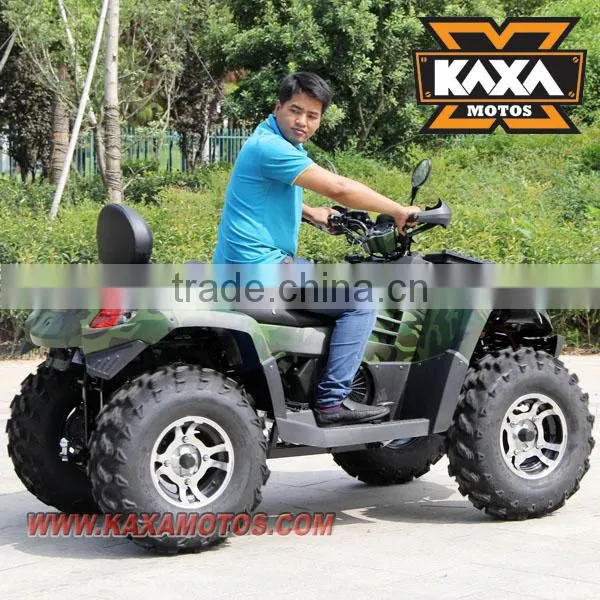

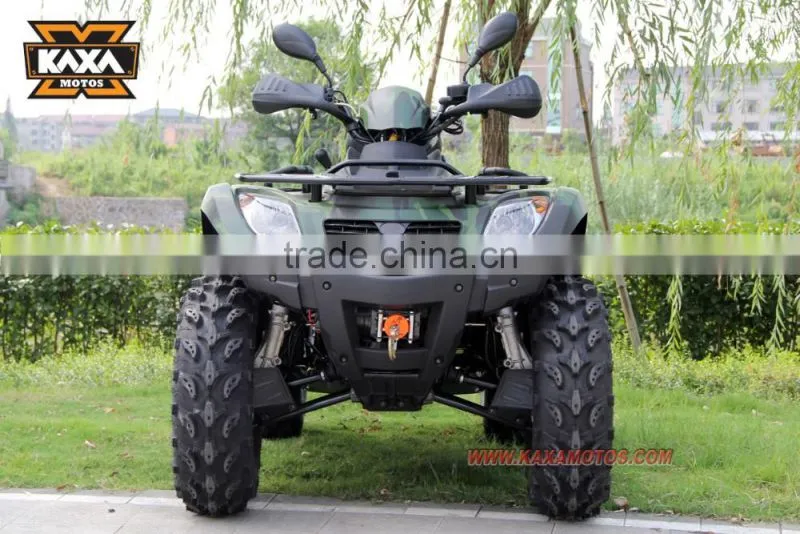

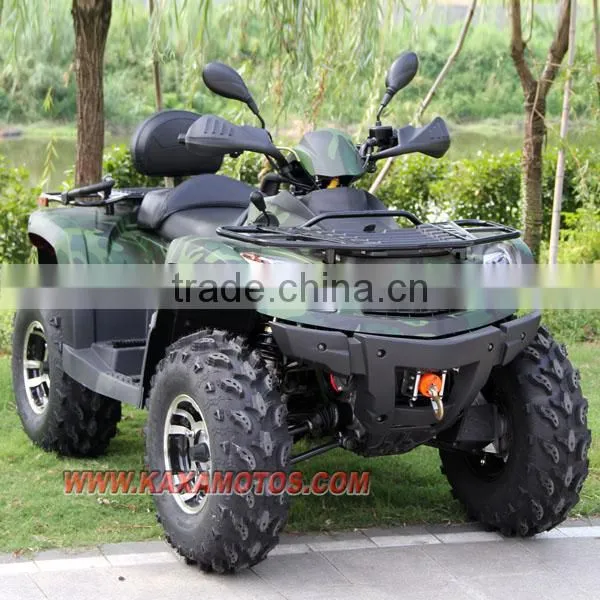

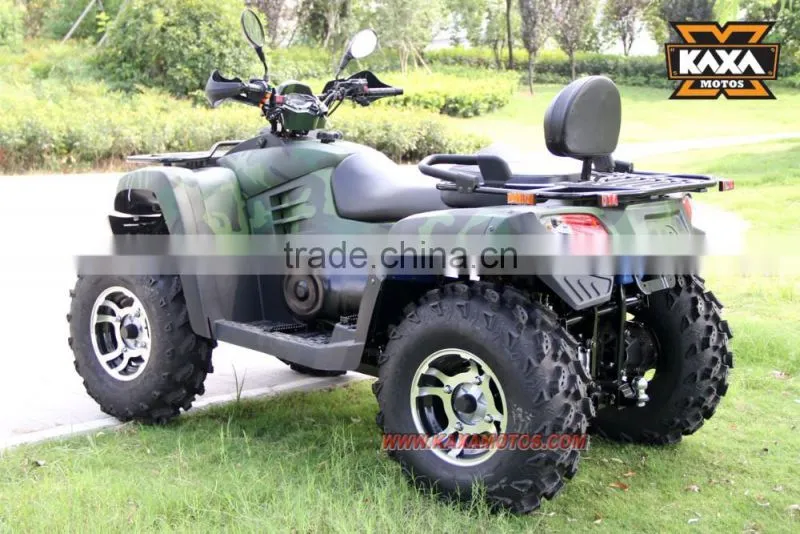

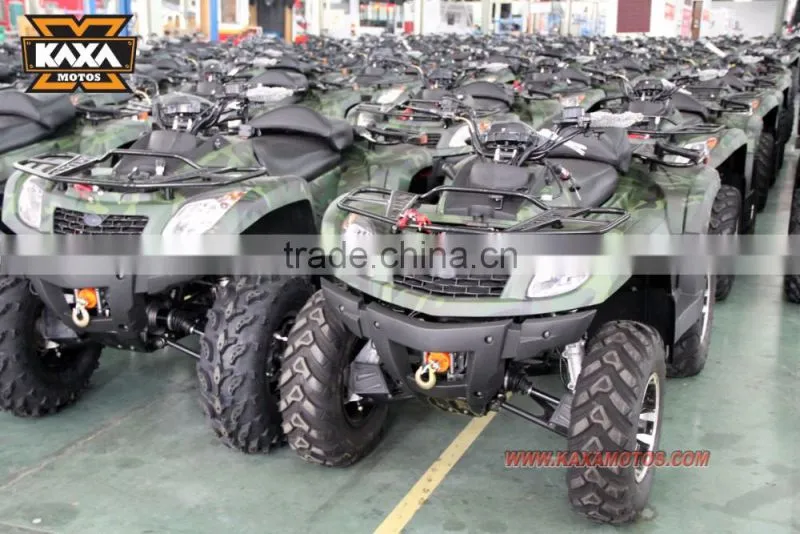

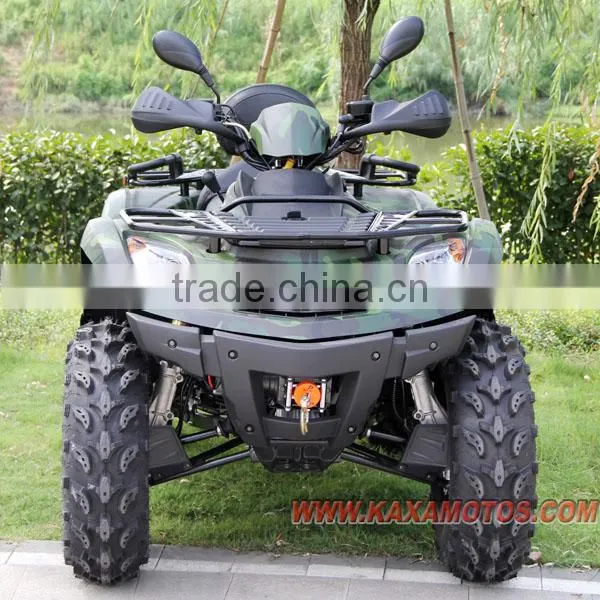

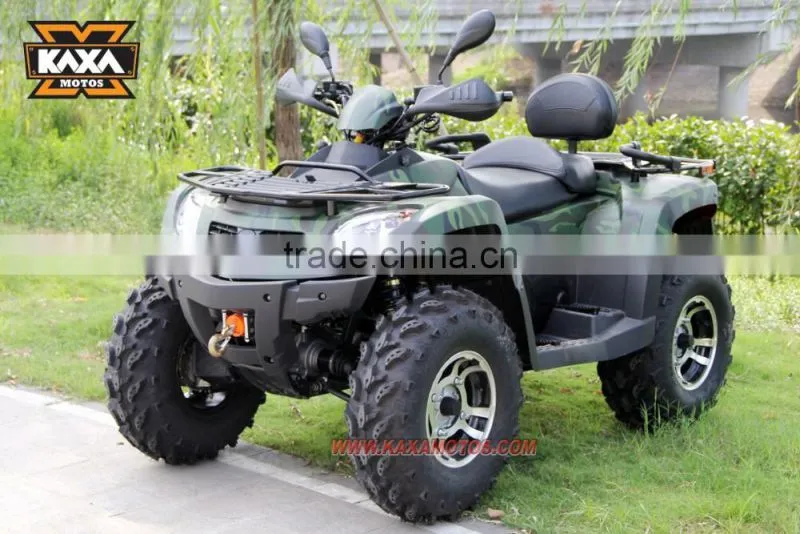

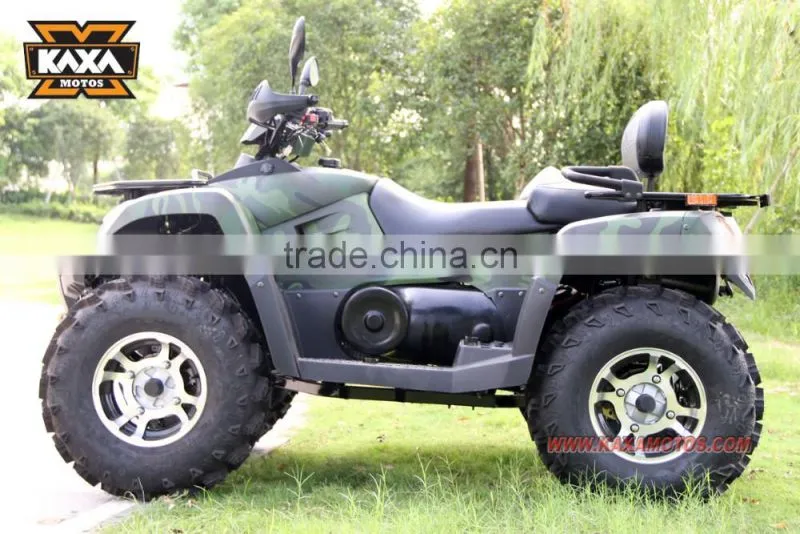

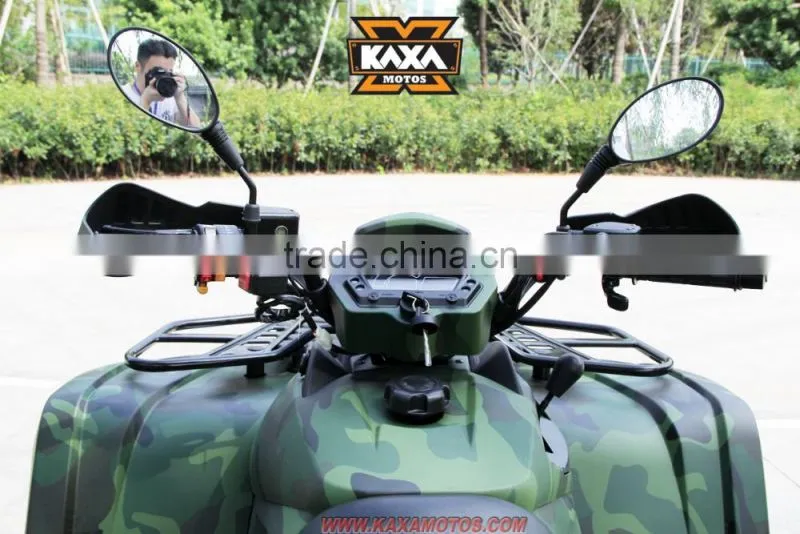

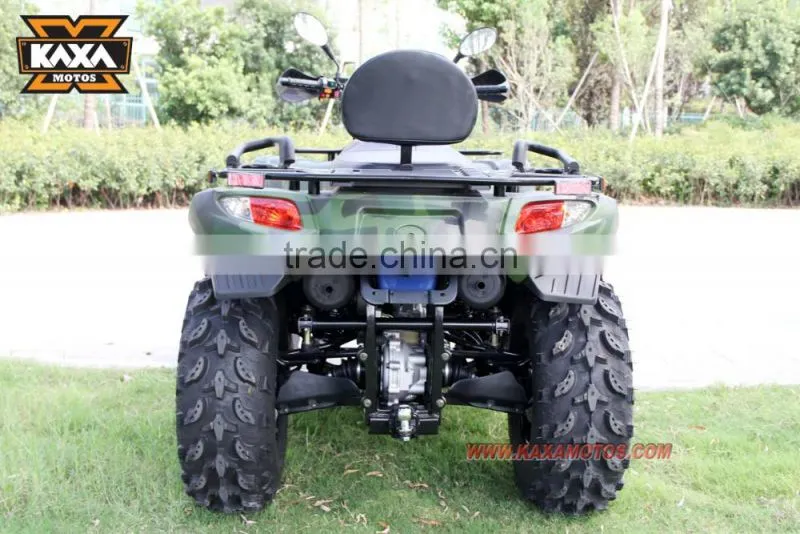

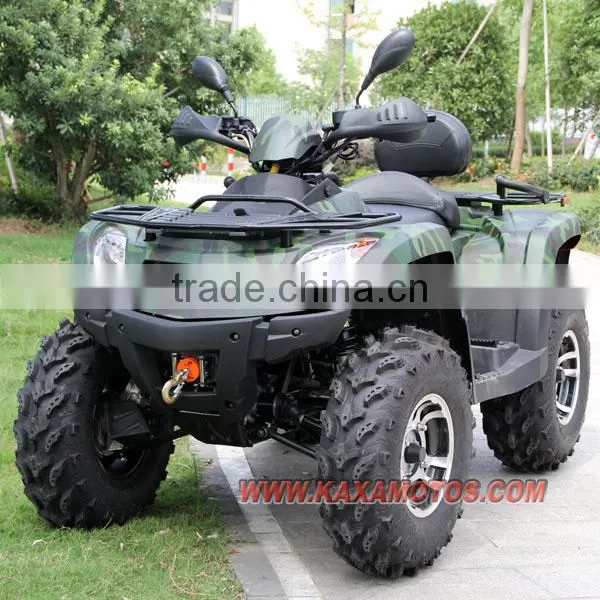

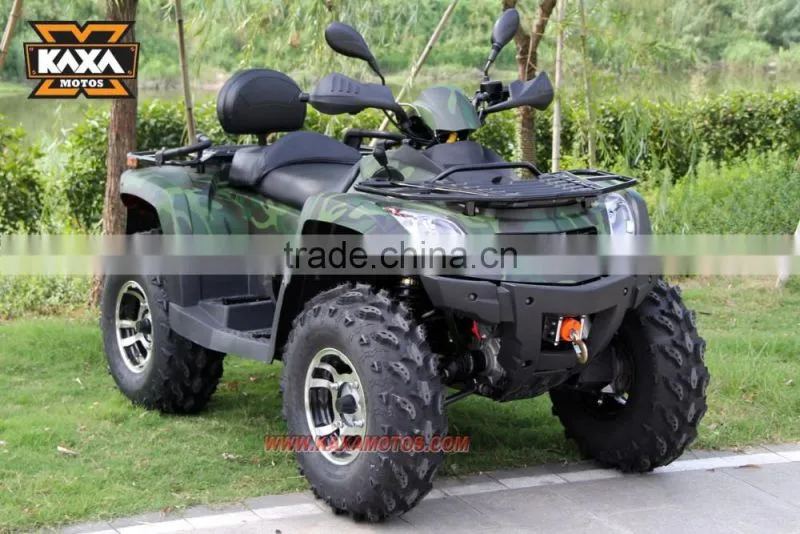

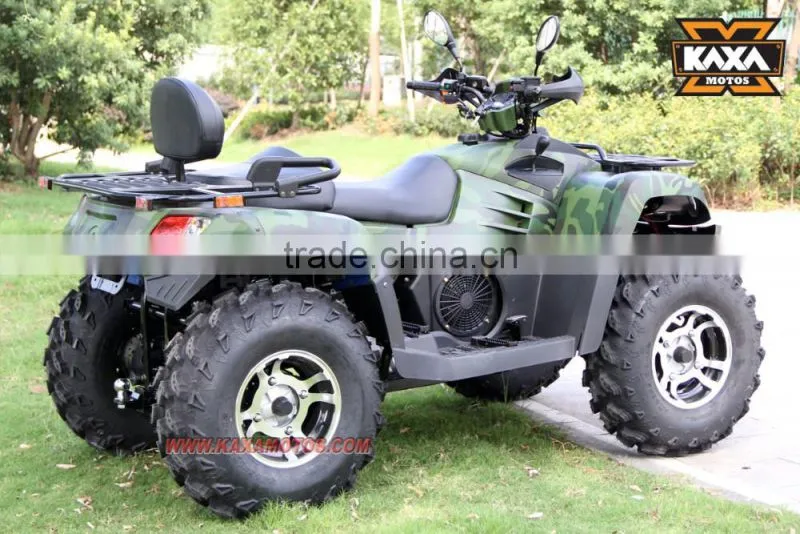

900cc Diesel 4x4 ATV China

SPECIFICATION

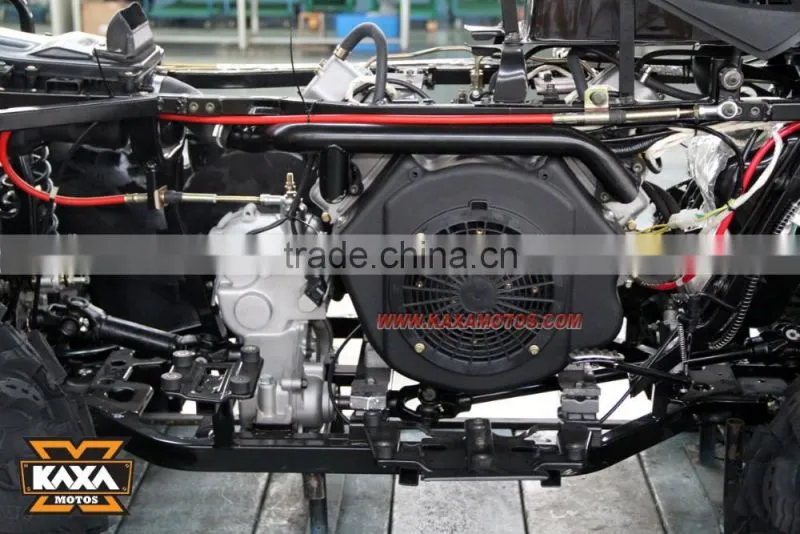

ENGINE
Type: 870ml, V-Twin cylinders, 4 strokes, air cooled
Fuel Type: Diesel
Max. Power: 20HP, 14KW/3,600rpm
Max. Torque: 45N.M/2,600rpm
Tranmission: V-Belt automatic CVT (R/N/H)
Driving: Shaft drive 4x4 / 4x2 switchable
Max speed: 60KM/H
Fuel capacity: 12.5 L
Noise at 7m(dB): <86
Starting System: Electric start
Fuel supply system: Pump

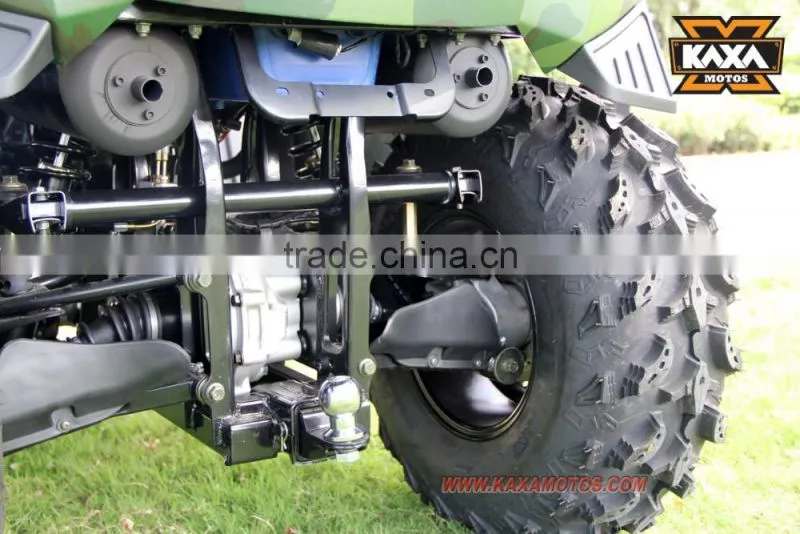

CHASIS
Suspension: Front: Macpherson Independent; Rear: Double Wishbone Independent
Brakes Front/Rear: 4-Wheels hydraulic disc brakes
Brake distance: 7m / 30km/h
Wheels: Front: AT26x9.00-12; Rear: AT26x11.00-12
Shock absorber(F/R):Spring and Damp Shock Absorbor

Battery: 12V/36AH
Transmission oil: 0.8L

DIMENSIONS
L x W x H: 2,260 x 1,180 x 1,270mm
Wheelbase: 1,460mm
Seat Height: 1000mm
Ground Clearance: 300mm
Turning Radius: 3,500mm
Net Weight: 355KGS
Carton size: 2310 x 1320 x 870mm

FCL QUANTITY
1x20FT FCL: 8 PCS
1x40HQ FCL: 25 PCS

Free Normal Colors: Red, Black.
Single Colors +$35: Blue, Orange.
Camo Colors +$60: Army Khaki Camo, White Maple Leaf Camo, Yellow, Maple Leaf Camo.

OPTIONAL ACCESSORIES:
1). Electric Winch: +US$100.00/set.
2). Remote Control: +US$25.00/set.
3). Camo Colors (Green Camo, Maple Leaf Camo): +US$60.00/set.

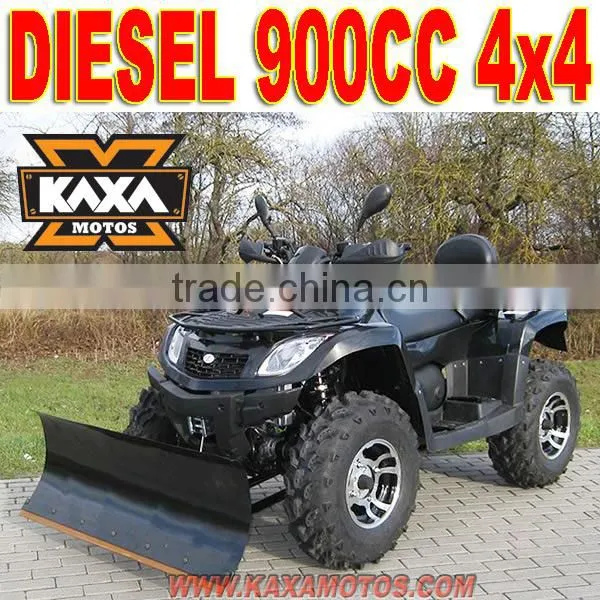

4). Snow Plow: +US$180.00/set.
