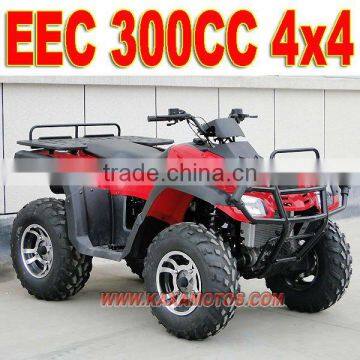

EEC 350cc ATV 4x4

300cc ATV 4x4WD with EEC Approved for on road legal use in Europe.

ENGINE TYPE: 300cc Automatic CVT, 4 Stroke, Water Cooled
MAX.POWER(KW/rpm): 14KW/7000rpm
MAX.TORQUE(NM/rpm): 20N.M/5500rpm
MAX.SPEED: 75KM/h
CYLINDER: Single Cylinder
BORE STROKE: 72.5mm x 66.8mm
DISPLACEMENT: 276cm
COMPRESSION RATIO: 10.3:1
CARBURETOR: CVK052
LUBRICATE: Combined force-feed and splash lubrication
AIR FILTER TYPE: Dry Air Filter Net
SPARK PLUG: DR8EA
STARTING:  Electric Start
IGNITION: C.D.I
STARTING PROCEDURE: Start Electric Lock, Hold brake ,Press Start Switch
GEARSHIFT: Manual
SHIFT SWITCH: Switch for 2WD and 4WD
TRANSMISSION: Automatic CVT with H/L/N/R
FINAL DRIVE SYSTEM: Shaft/4WD
BRAKE FRONT: Hydraulic twin disc brakes
BRAKE REAR: Hydraulic twin disc brakes
PARKING DEVICE: Mechanical brake lock on rear disc
BRAKE DISTANCE: 7m/30km/h
FRONT SUSPENSION: Independent suspension
REAR SUSPENSION: Independent suspension
SHOCK ABSORBER(F): Double
SHOCK ABSORBER(R): Double
BATTERY: 12V/14AH
ENGINE OIL: 1.5L
TRANSMISSION OIL: 0.8L
REAR OIL: 0.3L
FUEL: 90# unleaded gasoline
FUEL CAPACITY: 12.5L
TURNING RADIUS: 3280mm
MAX.LOAD(kgs/lbs): 156kg
FRONT TIRE: 25 x 8-12
REAR TIRE: 25 x 8-12
WHEEL MATERIAL: STEEL
OVERALL: 2016 x 1180 x 1237mm
CARTONE SIZE (L/M/H): 2280 x 1290 x 870mm
WHEELBASE(mm): 1271mm
SEAT HEIGHT(mm): 895mm
GROUND CLEARANCE: 183mm
NET WEIGHT(kgs/lbs): 267kgs

COLOR CODE Red, Black, Orange, Blue and Green.

1 x 20'FT container: 8pcs
1 x 40'HQ container: 25pcs

Noted: The standard vehicle come with the trailer ball.

Available options as follows,so you can choose it freely.
1). Aluminium Alloy Wheels: + US$100.00/unit.
2). Electric Winch: + US$50.00/unit.
3). Mirrors, Horn and Turning Lights: + US$50.00/unit.
4). Snow Plow: + US$180.00/unit.
