800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800)

800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-1
800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-2
800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-3
800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-4
800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-5
800cc Chery EFI Engine 4x4 UTV/manual Gears UTV(TKU800) photo-6
US$ 5,700 - 6,100 MOQ: 1 Unit
Key Specifications
Get Latest Price
Type:
800CC
Fuel:
Other, gasoline
Transmission Type:
Manual
Payment & Shipping
Payment Methods:
Port of Shipment:
upon customer request
Delivery Detail:
Delivery time depends on order quantity.
Type 800CC
Fuel Other, gasoline
Transmission Type Manual
Place of Origin Zhejiang, China
Brand Name TUOKAI
Model Number TKU800

800cc chery EFI engine 4wheels UTV

4WD/2WD Switchable

manual gears 800cc UTV with Reverse.

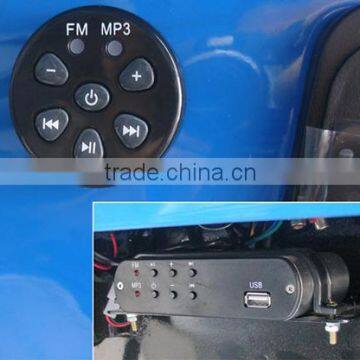

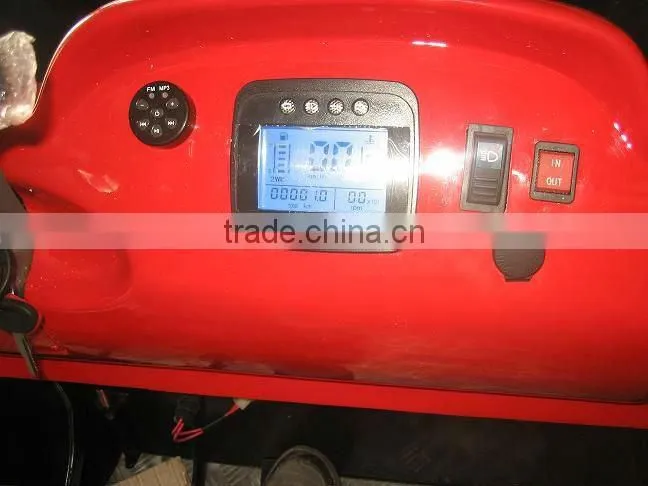

with CD player standard.

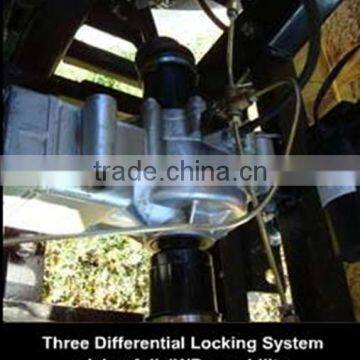

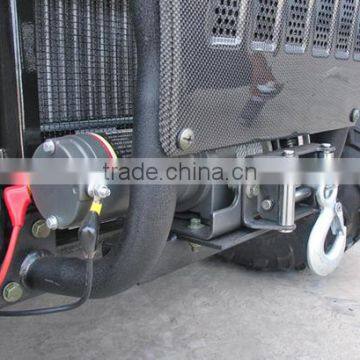

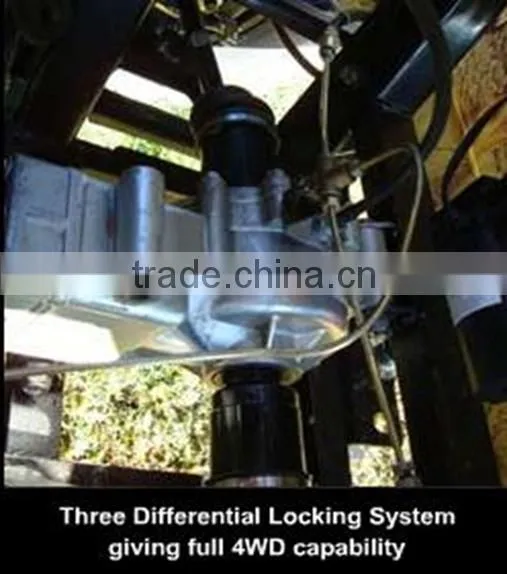

standard with alloy rims, winch, electric hoist ,differential with lock!



specification:

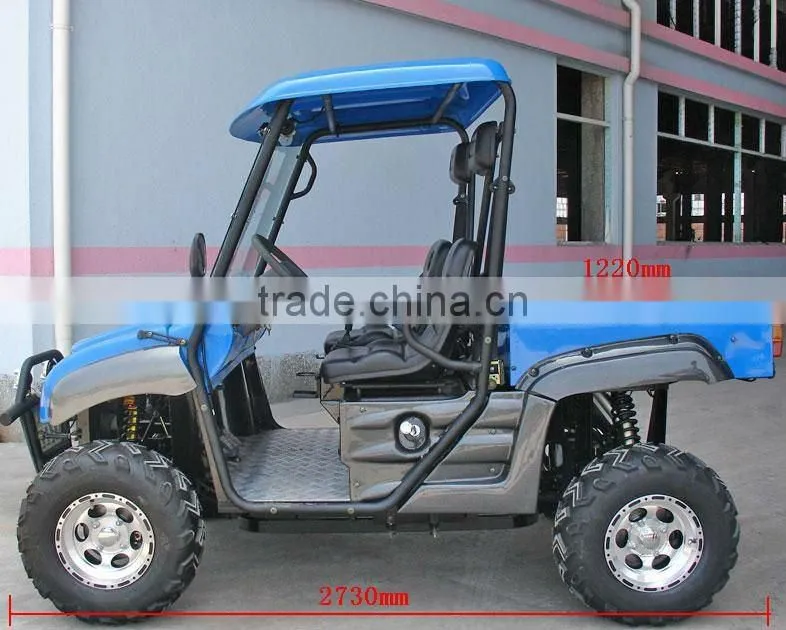

WHOLE MACHINE DIMENSIONS
Overall Length : 2700mm
Overall Width:  1450mm
Overall Height : 1830mm
Wheelbase  :             1750mm
Front Track : 1450mm
RearTrack : 1450mm
Ground  Clearance:250mm
ENGINE,Chery 812cc
Type  :   3 cylinders,4-stroke,liquid-cooled
Bore x Stroke :  66.5mm x 72mm
Displacement   :812cc
Compression ratio : 9.5:1
Max Power   :    39/6000(kw/r/min)
Maximum Torque :  70 N.m /(3500~4000rpm)
Starting   :  Electric
Ignition  : C.D.I
Lubrication   :  Force & Splash
Transmission: Manual clutch,5 shift/reverse
Driving wheel: 4 wheel drive and 2 wheel drive selectable
Suspension,front/rear: Front shock absorb with reservior suspension,rear spring suspension
Brakes,front/rear:Hydraulic disc brake both front and rear
Tires,front/rear: 25*10-12 both front and rear
Lubricate oil   : SAE-15W/30
CAPACITIES
Turning radius :  157.5 in(4000mm)
Fuel tank   : 25.0L
Engine oil  :2900ml
Coolant   :    4000ml
Starting   :    <5s
Climbing  :   20°-35°
Battery    :   12V36Ah
Head Light  :  12V  80W/Both
Tail Light :  12V 52W/Both
Fuse     : 35A
Max speed  :  110 km/h
CHASSIS
Front, Rear brake  :  Hydraulic disc, right foot control
Front tire      :      25×10-12
Rear tire      :      25×10-12
Front Suspension   :   Independent Dual A-Arm
Rear Suspension  :   Independent Dual A-Arm
Drive Train     :    2WD/4WD  Shaft
TIRE PRESSURE
Front   :  205kpa 2.1kg/cm2 30psi
Rear   :  205kpa 2.1kg/cm2 30psi
WEIGHT
Max load capacity  : 800kg
Net Weight  :  565kg
CONTAINER LOADS
20’ CONTAINER:6PCS
40’ HQ CONTAINER:14 PCS




800cc Chery EFI engine 4x4 UTV/manual gears UTV(TKU800)800cc Chery EFI engine 4x4 UTV/manual gears UTV(TKU800)800cc Chery EFI engine 4x4 UTV/manual gears UTV(TKU800)

Optinal trailer:

800cc Chery EFI engine 4x4 UTV/manual gears UTV(TKU800)800cc Chery EFI engine 4x4 UTV/manual gears UTV(TKU800)
