Help CenterDual Blue LED Backlit Laser Etched 3-Pin Rear Differential Lock Car Rocker Switch DC 12V 20A / 24V 10A
Related Products
-
7/8inch Motorcycle Motorbike Handlebar Headlight Fog Spot Light On Off SwitchUS$ 1 - 100MOQ: 50 Units -
Brand New Waterproof 6 Gang Led Boat Marine Rocker Switch Panel RVUS$ 1 - 100MOQ: 50 Units
-
Waterproof Carling Style Spot Light Rocker Switch 12V 20A / 24V 10A 5 Pin ON-OFF for Car Boat Trailer ( Red / Blue LED Light )US$ 1 - 100MOQ: 50 Units
-
Side Mirror Switch Without Floding for Audi A4 S4 B6 A6 Quattro Q7 R8 TT RS4 2001-2012 4F0959565 / 4F0959565US$ 1 - 100MOQ: 50 Units
-
New Mirror Switch Headlight Window Switch Set for Jetta MK5 Passat B6 VW Golf MK5 6 Tiguan 5ND 959 565A 5ND 959 857US$ 1 - 100MOQ: 50 Units
Type:SPST
Electrical:ON-OFF
Pin:3
Epath Ltd. Promise: 1. All products are brand new from hi-tech factory directly. so we can sell them at wholesale price. 2. Before shipped out the products, we will test it and do a double check, so we can ensure product quality. 3. All the products are guaranteed by 1 year warranty which for repair, return or replacement. If you have any using problem or unsatisfactory with our products, please do not hesitate to contact us, we will consult the issues with sincerity. so please rest assured to do shopping in our shop. |

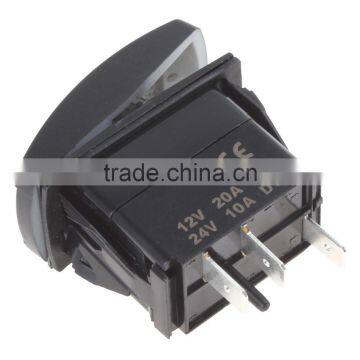

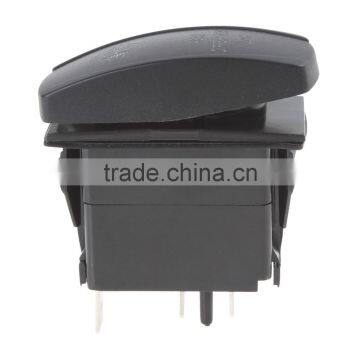

Dual Blue LED Backlit Laser Etched 3-Pin Rear Differential Lock Rocker Switch
Rear differential lock 3-Pin SPST ON/OFF dual blue LED indicator rocker switch. Laser etched into the switch face to ensure long image life and more importantly it allows you to see the switch name in the dark when it lights up; It comes with 2 independently controlled blue LED indicator lights, lower LED illuminates tet when vehicle is on for visibility, upper LED illuminates the legend when pressed ON.
Main Features:
- Single pole single throw On-Off switch
- Black hard surface rocker
- Laser etched rear differential lock
- Rated to 20A at 12V or 10A at 24V
- Dual blue LED lights. Both LEDs have separate grounds
- Upper light is activated when switch is on
- Lower light is activated when dash lights are on
- Specifications:
- Features:
- Single pole single throw On-Off switch
- Black hard surface rocker
- Laser etched rear differential lock
- Rated to 20A at 12V or 10A at 24V
- Dual blue LED lights. Both LEDs have separate grounds
- Upper light is activated when switch is on
- Lower light is activated when dash lights are on - LED Light Color: Blue
- LED Qty: 2
- Type: SPST
- Electrical: ON-OFF
- Pin: 3
- DC 12V / 20A, 24V / 10A
- Material: ABS & Environmental anti-retardant materials
- Color: Black
- Size (L W): 46 24mm
- Package Weight: 26g
- After Sales Service: 1 Year Warranty
- EPC_CEC_933
- Package Include:
- 1 Rear Differential Lock Rocker Switch
