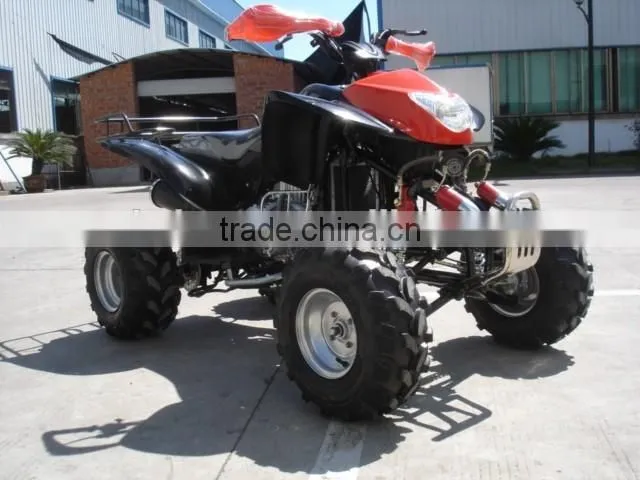

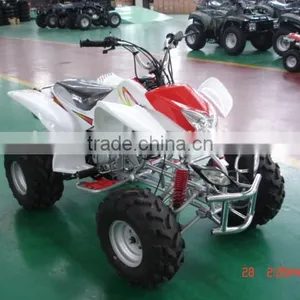

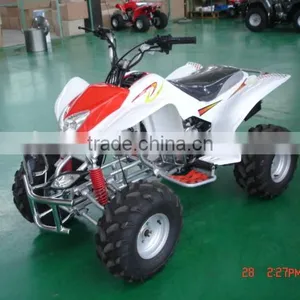

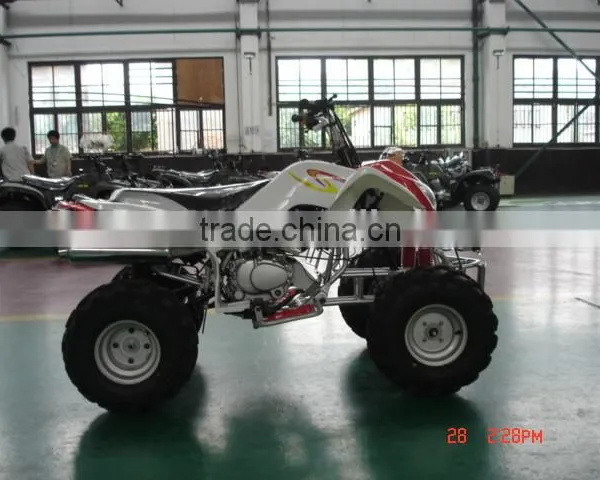

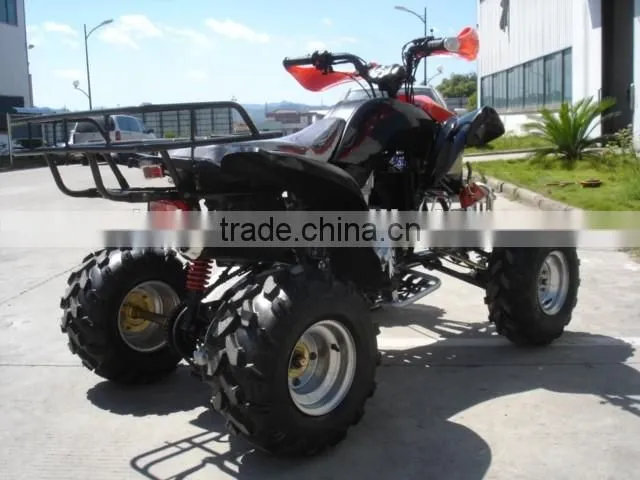

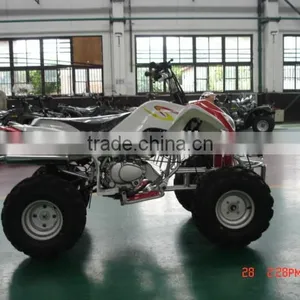

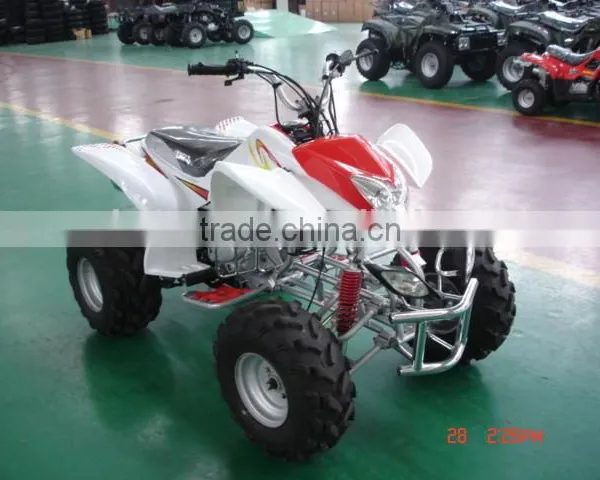

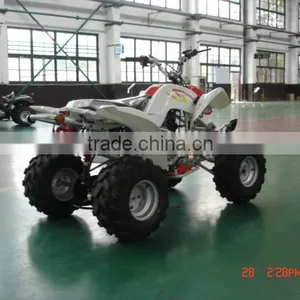

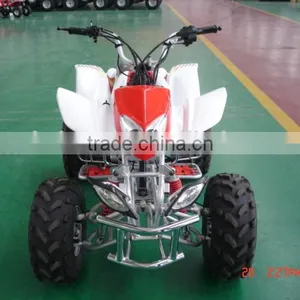

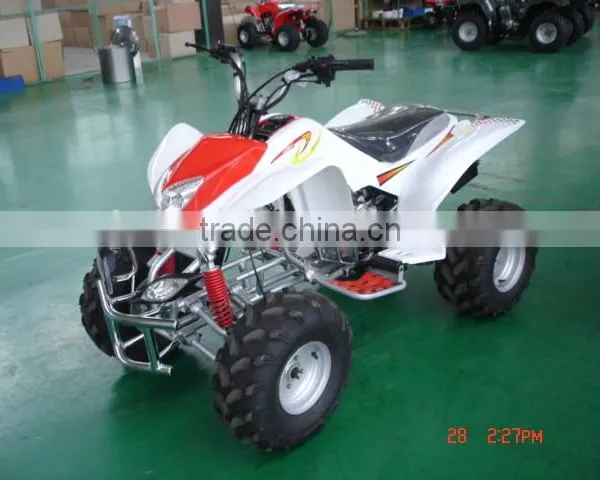

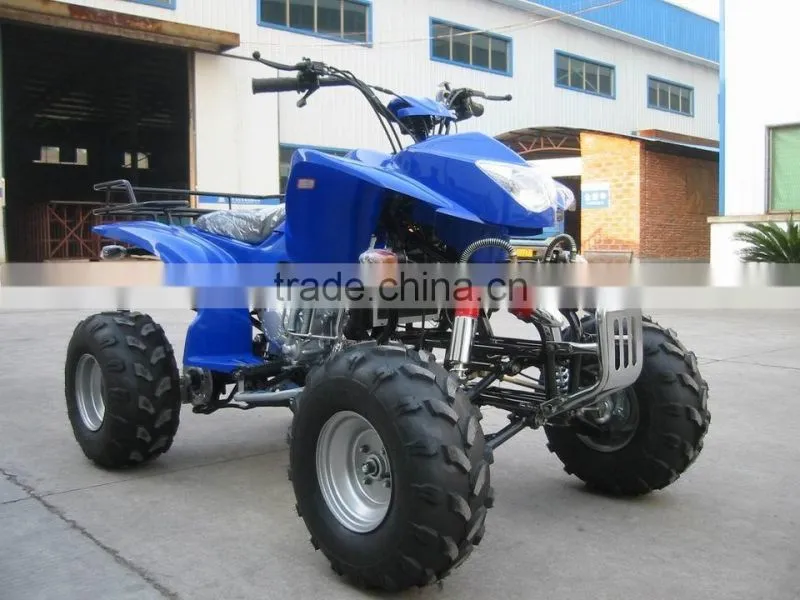

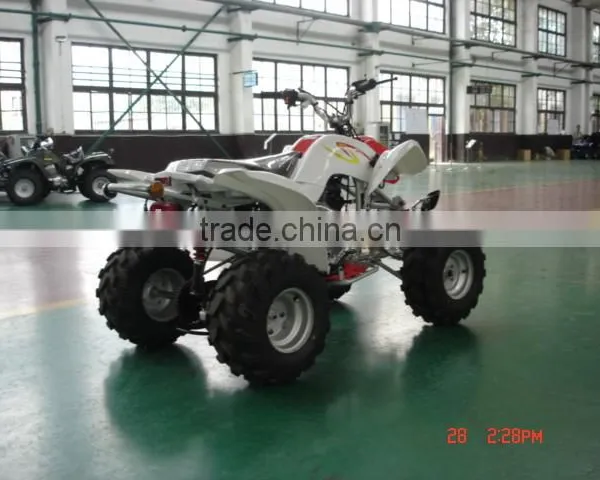

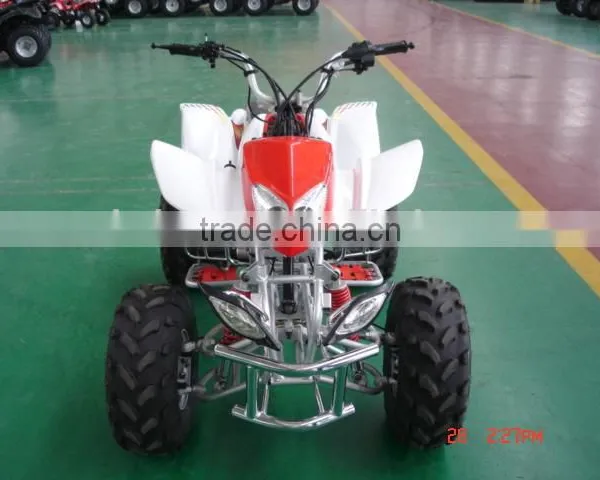

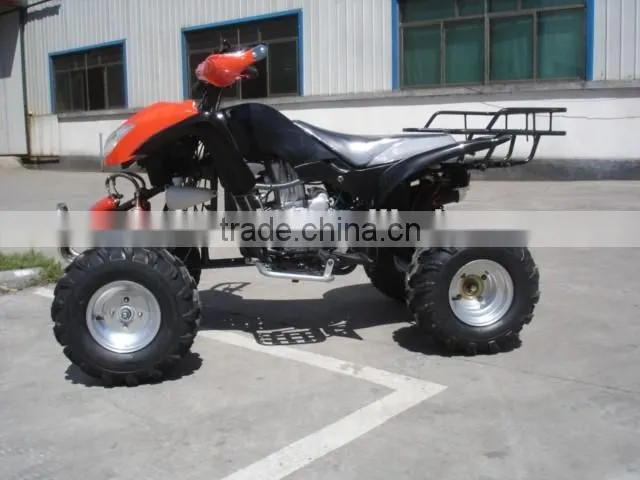

200cc 4 Stroke ATV Sports Style(TKA200-C)
200cc 4 stroke, air-cooled, sports ATV(TKA200-C)
| Engine Type | 4 stroke, air-cooled,4 forward gear |
| Cylinder Arrangement | horizontal single |
| Final Drive | chain drive |
| Bore x Stroke(mm) | 52.4 x 49.50 |
| Piston Displacement(cc) | 196 |
| Compression Ratio | 9:1 |
| Maximum Power(kw/r/min) | 5.5kw/8000r/min |
| Max Torque(N.m/r/min) | 6.6N.m/6000r/min |
| Starter Sytem | electric |
| Lubricaiton oil | injection |
| Trasmission | 4 forward gear with reverse |
| Overall LxWxH(mm) | 1484x865x953 |
| Wheel Base(mm) | 980 |
| Seat Height(mm) | 660 |
| Ground Clearance(mm) | 108 |
| Parking Brake | mechanical lock |
| Brake(Front/Rear) | front/dual sealed drum;rear;hydraulic disc |
| Tire, Front | 19x7-8 |
| Tire, Rear | 18x9.5-8 |
| Ignition Type | CDI |
| Fuel Tank Capacity (L) | 7.8 |
| Engine Oil Capacity(L) | 1.6 |
| Front Suspension | double a arm suspension |
| Rear Suspension | swing arm |
| Max Speed(km/h) | 75 |
| Mini Turing Radium(mm) | <1650 |
| Max. Load Capacity(kg) | 90 |
| Battery Specifiction | 12V12Ah |
| NW(kg) | 145 |
| GW(kg) | 175 |
| Quantity of Loading | 20'ft/30pcs 40'hq/66pcs |
Send Inquiry to This Supplier
