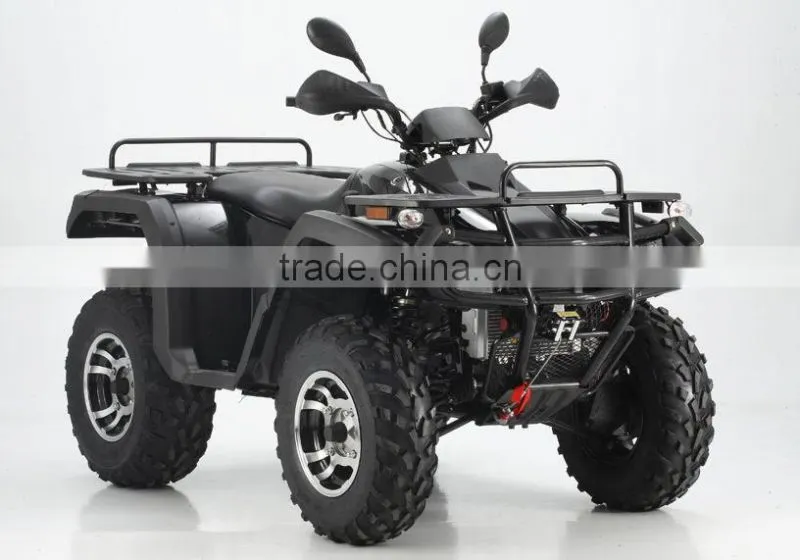

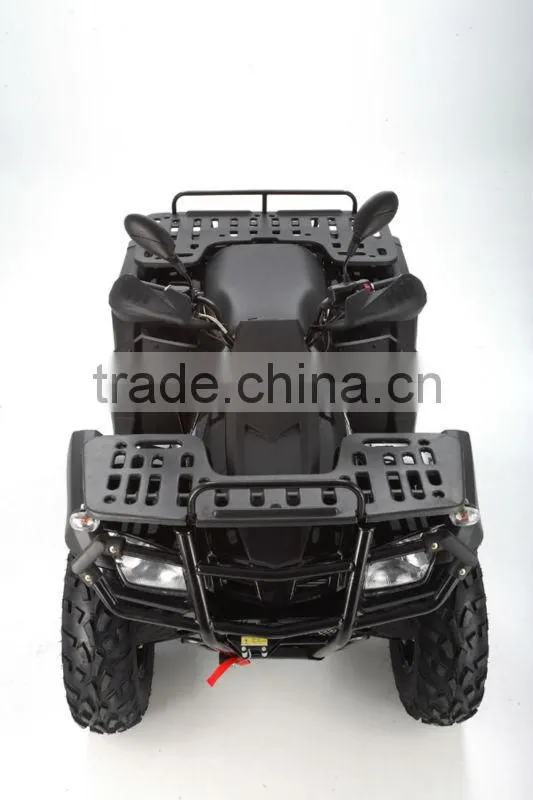

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B)

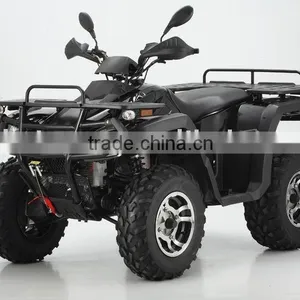

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) thumbnail-1

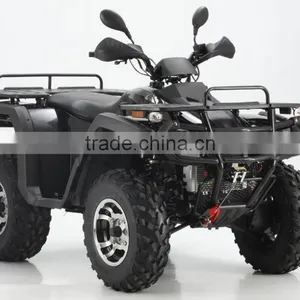

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) thumbnail-2
300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) thumbnail-3

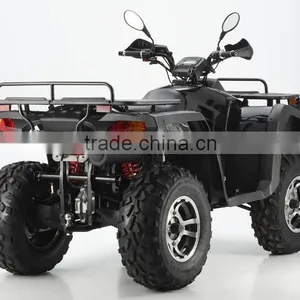

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) thumbnail-4
300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) thumbnail-5
300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) photo-1

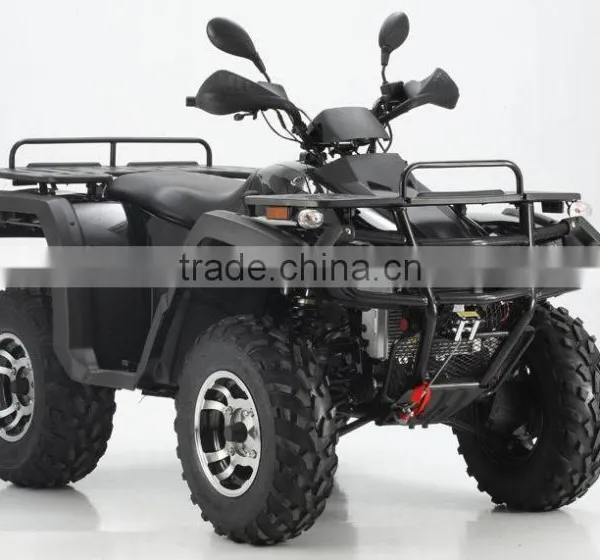

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) photo-2

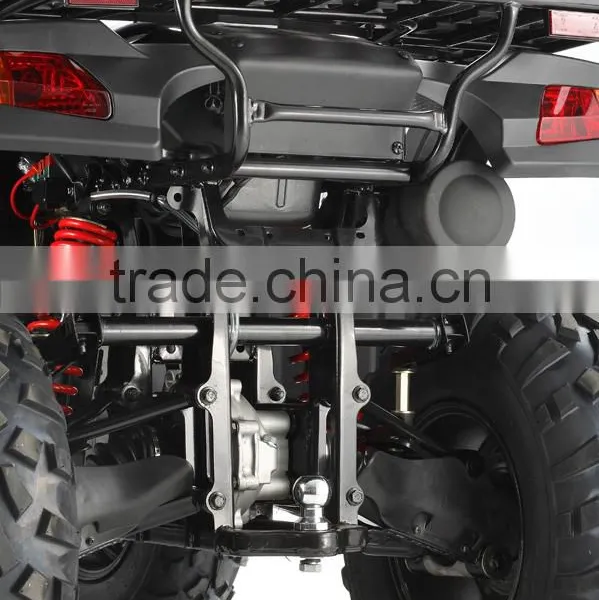

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) photo-3

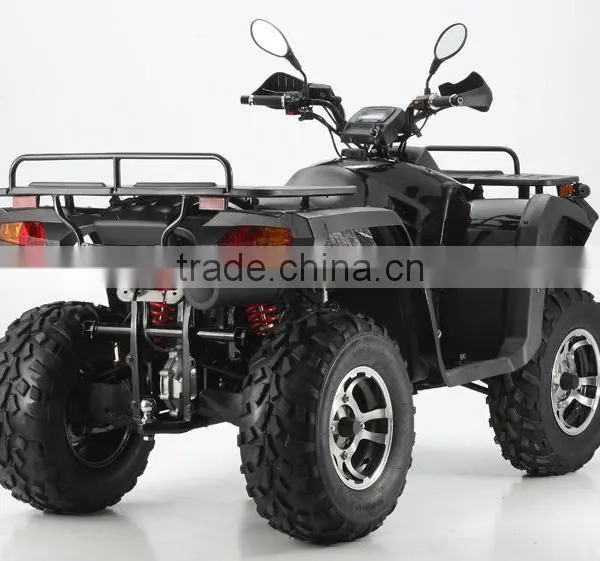

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) photo-4

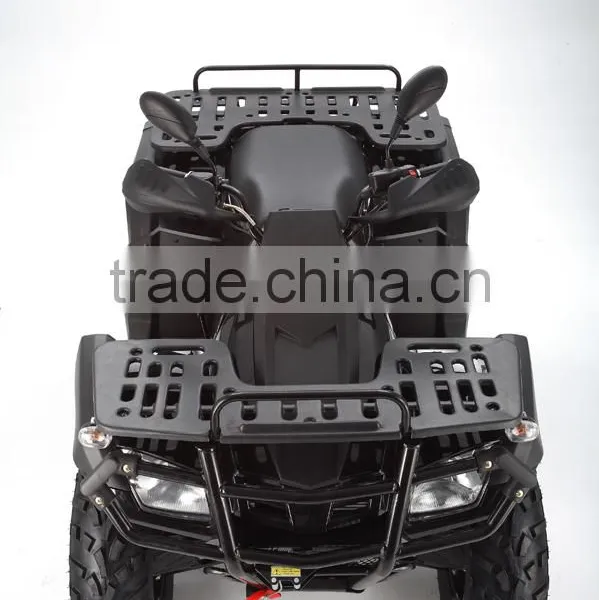

300cc 4WD Aluminium Wheels Quad/ EEC ATV(TKA300E-B) photo-5
US$ 2,300 - 2,800 MOQ: 4 Units
Key Specifications
Get Latest Price
Fuel:
Gas / Diesel
Displacement:
>300cc, 300cc
Engine Type:
4 Stroke, 4 Stroke
Contact Supplier Request Quote Chat Now
Ningbo Tuokai Sports Vehicle Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Fuel Gas / Diesel
Transmission Type Other, Automatic, Automatic
Transmission System Shaft Drive
Certification Other, ECE, EEC
Brand Name TUOKAI
Model Number TK300E-B



300cc 4WD aluminium wheels quad
disc brake,
automatic 4x4 drive, shaft transmission
handbar protector
water-proof cables

4wheels independent suspesion





300cc eec atv
300cc eec quad
300cc atv
300cc china atv
300cc CVT atv

Engine Type Single cylinder, four-stroke,Water Cooled
Displacement 276cm3
Bore & Stroke 72.5mmx66.8mm
Start C.D.I
Alternator Direct Current
Carburetor CVK052
Compression Ratio 10.3:1
Spark Plug  A7RTC
Average Consumption 4.5L/100km at 50km/h
Fuel Type  93# unleaded gasoline
Engine Machine Oil SAE15W/40SG
Air Filter Dry Air-Cleaner Net
Transmission By Axle
Transmission Mode Mechanical
Clutch Automatic centrifugal clutch
Max Power (kw/rpm) 11/6000
Max Power (hp/rpm) 15/6000
Max Torque (Nm/rpm) 19/5000
Max Speed 65km/h
Speedometer/Odometer/Chronometer NJJPY
Front Suspension Double Wishbone
Rear Suspension Single Wishbone
Front Shock Absorber Double
Rear Shock Absorber Single
Brake Front Disc brake
Brake Rear Disc brake
Brake Parking Y
Brake Distance 7m/30km/h
Front Shield Y
Wheel Base 1271mm
Seat Height 895mm
Ground Clearance 183mm
Turning radius 3280mm
Front wheels 6.0x12
Rear wheels 7.5x12
Front tire 25x8-12
Rear tire 25x10-12
Length/Width/Height 2016mm/1180mm/1237mm
Tank Capacity  14.5L
Machine Oil Capacity 1.6L
Max Load capacity 156kg
Capacity of Tow 200kg
Net weight / Gross weight 303kg
Ignition Electric T.C.I
Battery 12V/14AH
Horn n.a
Headlight 35W
Lamp 35W
Halogen lamp n.a
Brake Light 21W
Remote Control Alarm 12V 0.5W
Electric Lighter n.a
Ignition Security Bolt n.a
Red, green, black Red, green, blue ,orange, black, camo
Owner’s Manual YES
Parts’ Manual YES
Owner’s Manual NO
Parts’ Manual NO
Tool Kit YES
Description CARTON
Net weight / Gross weight 303kg
Units per packing  piece
Capacity Container 20 Ft 8PCS
Capacity Container 40 Ft 18PCS
Capacity Container 40 Ft HQ 27PCS

300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)

 300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)300cc 4WD aluminium wheels quad/ EEC ATV(TKA300E-B)
