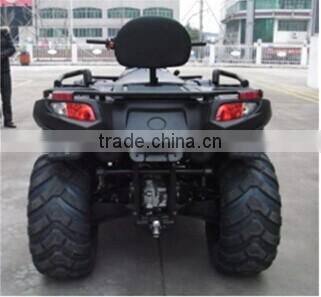

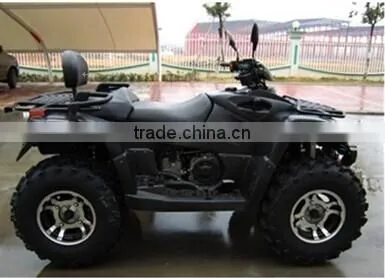

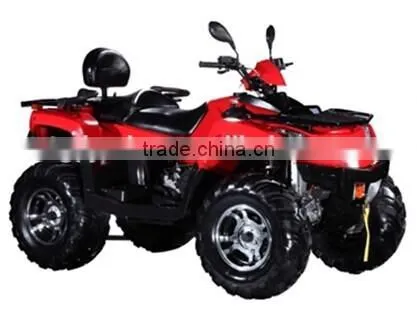

550cc High Quality Atv for Sale

YTA550E specification

ENGINE TYPE 4 Strokes, Water-cooled

MAX.POWER (KW/rpm)   25KW/6000rpm

MAX.TORQUE (NM/rpm) 45N.M/5000rpm

MAX.SPEED 75KM/h

CYLINDER NO.:  Double Cylinder

BORE STROKE 72.5mm x 66.8mm

DISPLACEMENT    552cm

COMPRESSION RATIO     10.3:1

CARBURETOREFI

LUBRICATE   Separated pressure

AIR FLTER TYPE Dry Air-Cleaner Net
SPARK PLUG A7RTC

STARTING C.D.I.: Electric Start

STARTING PROCEDURE Open ignition, Brake, Press on Switch GEARSHIFT   By hand

TRANSMISSION: Shaft Axle

BRAKE FRONT/REAR     Disc Brake/Disc Brake.  BRAKE DISTANCE 7m/30km/h

FRONT/REAR SUSPENSION Double Wishbone/Double Wishbone

SHOCK ABSORBER (F/R) Double/Double

BATTERY 12V/18AH

ENGINE OIL 1.5L

TRANSMISSION OIL 0.8L

REAR OIL 0.3L

FUEL  93# Unleaded Gasoline

FUEL CAPACITY    24L

TURNING RADIUS 3520mm

MAX.LOAD (kg/lbs) 156kg

FRONT TIRE      25x8-12

REAR TIRE  25x10-12

OVERALL Dimensions: 2265x1150x1260mm

CARTONE SIZE (L/M/H) 2280x1290x870mm

PACKAGE40HQ`(SET)      27pcs

WHEELBASE (mm) 1440mm

SEAT HEIGHT (mm) 930mm

GROUND CLEARANCE   183mm

NET WEIGHT (kg/lbs)

AVAILABLE COLOR:  Red, Black

- LOADING CONTAINER: 8pcs/20GP, 25pcs/40HQ

- FOB China USD4450.00/pc (based on FCL)

- OPTIONAL: REMORT CONTRAL AND MP3 + $ 45.00/pc
