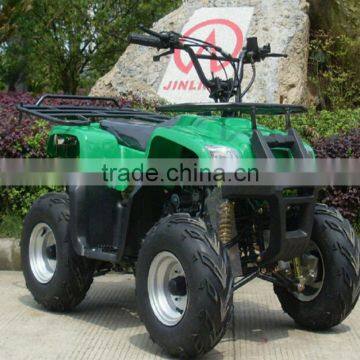

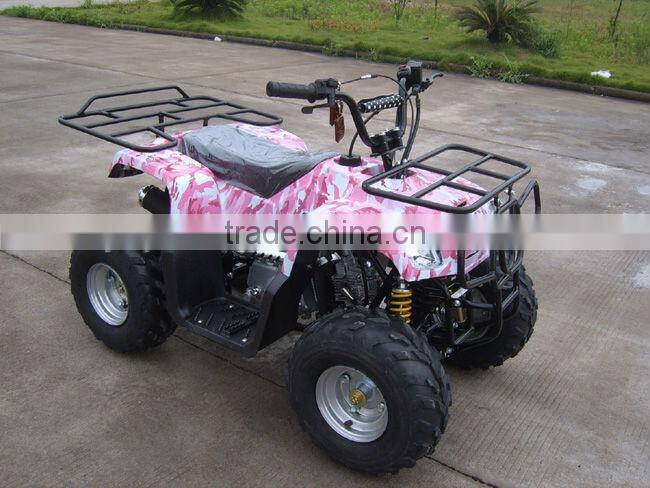

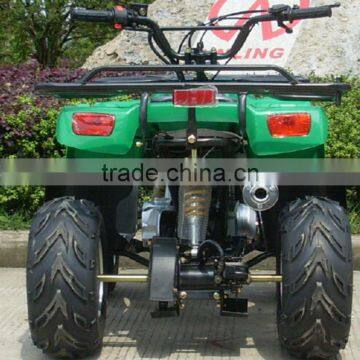

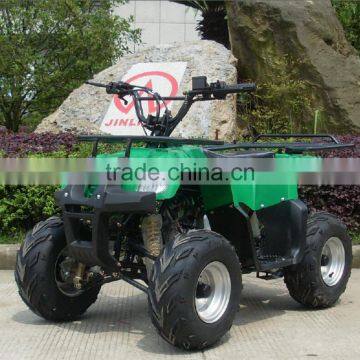

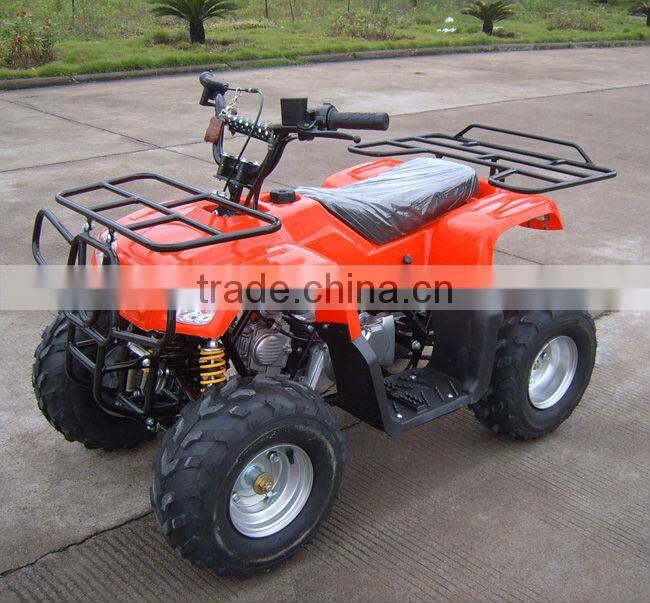

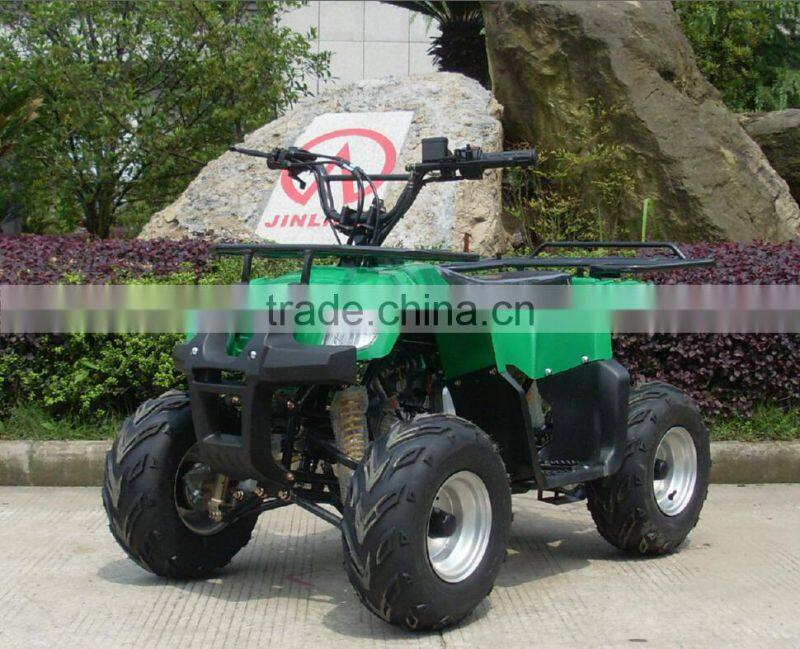

Help Center(JLA-08-04) 2017 New Buggy 49cc Mini Atv for Kids
Related Products
-
(JLA-08-02) Kids Atv , ,quad Bike 50cc /70cc/110cc Cheap Kids Atv for SaleUS$ 1 - 2MOQ: 10 Units -
(JLA-02-01) Kids 50cc Atv,loncin Atv,quad Bike EecUS$ 280 - 360MOQ: 10 Units
-
(JLA-07-07) 2017 Atv Kids 50cc Kids Gas Powered Mini Jeep for SaleUS$ 295 - 368MOQ: 20 Units
-
110cc/125cc Atv,quads for Sale,cheap Atv Quad Dune Buggy Military Vehicles(JLA-11-2)NegotiableMOQ: 20 Units
-
50cc /70cc Kids Automatic Atv Kart Quad Bike for Kids Sale(JLA-07-06)US$ 320 - 380MOQ: 10 Units
50cc automatic atv for chlidren
1. engine type :50cc/70cc/90cc/110cc,4 storke
2. bore and stroke :39x41.4/47x41.4/47x49.5/52.4x49.5
3. compression rating :8.8:1
4. max torque :4.2Nm/5000rpm , 4.2Nm/5000rpm, 5.2Nm/5000rpm, 5.5Nm/5000rpm
5. max power :3.0Kw/8500rpm/ ,3.0kw/7500rpm,3.3kw/7500rpm,3.6kw/7500rpm,
6. ignition type :CDI
7. transmission :automatic/(4-speed,semi-automatic),chain
8.Brake (Front/Rear):No/Disc
9. starting system :Electric start
10. battery spec :12V,4AH
11. front suspension details :double A x swing arm
12. rear suspension details :mono shock swing arm
13. front tire spec : 16X8-7 or 145/70-6
14. rear tires spec : 16X8-7 or 145/70-6
15. vehicle dimensions :138x75x90cm
16. wheel base :880mm
17. seat height from ground :60cm
18. ground clearance :100mm
19. load capacity :75kg
20. fuel tank capacity :3.2L
21. gross weight in carton :94kg
22. net weight :78kg
23. packing size:132x76x62cm
Conveyance:
Qty/20' GP:38 units
Qty/40' GP: 76 units
Qty/40' HQ: 108 units
(JLA-08-04) buggy 49cc mini atv for kids
(JLA-08-04) buggy 49cc mini atv for kids
1. All of the ATV Frame is use the 2.5mm seamless steel pipe ligt arc welding,production by our factory workeshop.reliable and stability.
2. All of the ATV engine is come from original engine factory. have not the renovation engine.
3.Each one ATV come out from factory, All must go through rigorous drive testing.To ensure the quality of each ATV.
4.We have one Professional team to do the after-sales service, Provide the solution to solve your worries on the ATV problems.
(JLA-08-04) buggy 49cc mini atv for kids
1. For the sample: we can delivery the sample at the first order. but need add some sample fee to balance the export cost in Chinese custom.
2. The ATV(Quad) Color can choose by yourself on the ordinary colors,Also can do the custom-made
3. Shipping:General by the sea shipping, port to port. can't do the door to door.
4. The Package: The bike have been 90% assembled, with the accessory kit can be do rapid assembly. Don't need professional tools and mechanic.
5. Delivery: we have no stock, all of these ATV is production by the order, Just for one order, the production time general will take about 15-20days.
6. If for the EEC Model, can delivery the COC certificate for you registration, Also can delivery the Certificate Of Origin(CO).
7. Warranty: Engine and the Frame is one year, the other if not Artificial damage is 5 months. The spare parts also can order from us.
(JLA-08-04) buggy 49cc mini atv for kids
JLA-08-04 has a sophisticated quality testing, high reliability and cost performance. And the structure is simple, reasonable, safety. It’s also has a fashion and cool appearance .it can satisfied your different interests. (If you want, we can give the different colors and accessories for your choices)
