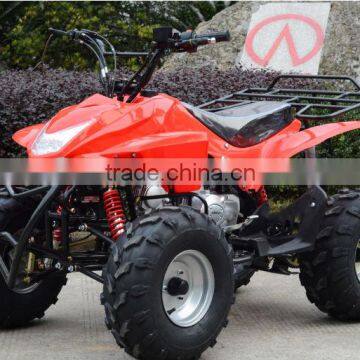

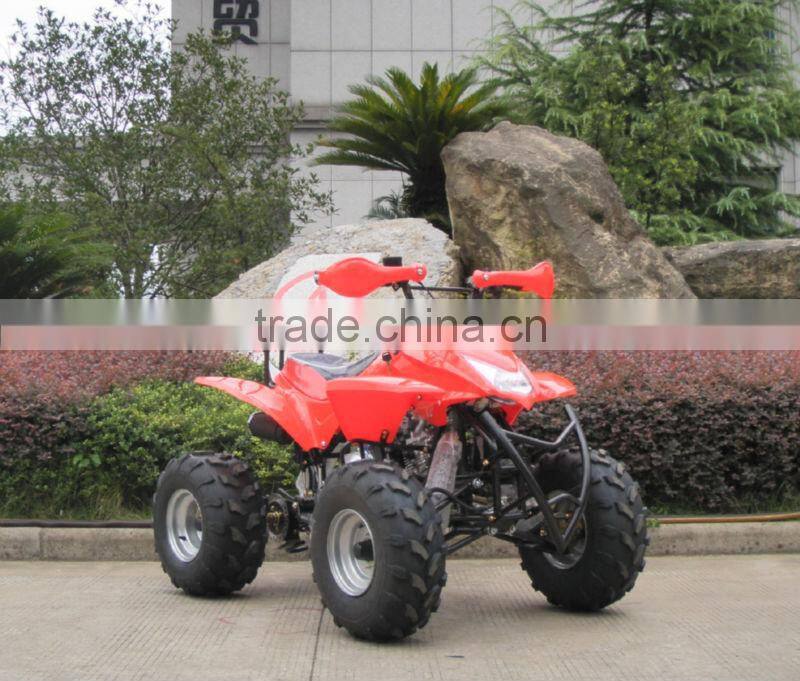

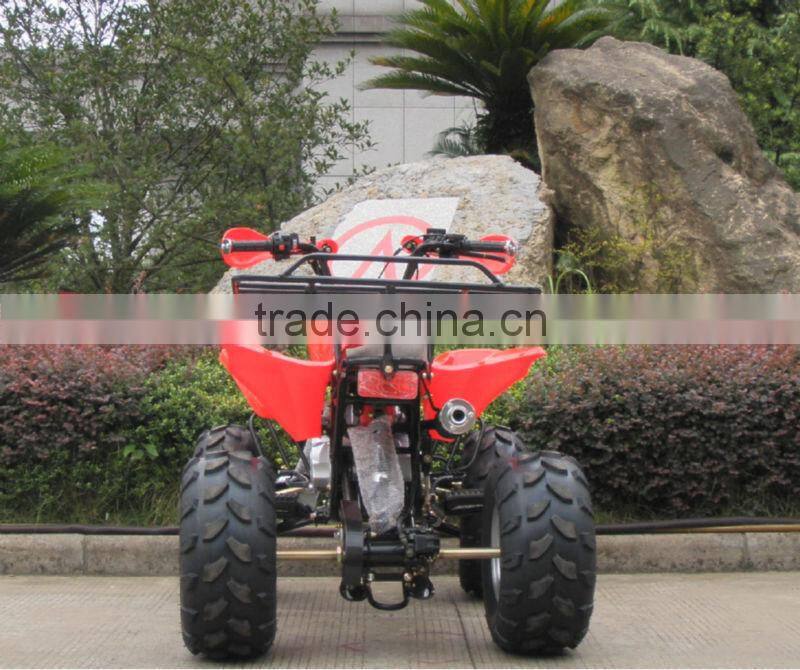

Quad ATV kids 50cc 110cc quad atv 4 wheeler
110cc 4 stroke air cooled Engine,
Chain drive,Automatic clutch,Drum/Disc
CE 6-7-8 road wheel,Wide front A-ARM
CE
----------------------------------------------------------------------------------------------------------------------------------
Features:
This Quad ATV kids 50cc 110cc quad atv 4 wheeler is jinling JLA-07-05 50CC,110CC 4x2. Bayou's are wonderful ATVs.
They are adult sized ATVs . These ATVs have a super reliable 4 stroke, air cooled engine with electric start and reverse.
The transmission is a 3+1 speed foot shift unit so while you do have to shift with your foot you do not have to use a clutch.
----------------------------------------------------------------------------------------------------------------------------------
Specification:
110CC Quad ATV kids 50cc 110cc quad atv 4 wheeler JINLING JLA-07-05
| IDENTIFICATION | |||
| 1.Model No. | JLA-07-05-7A-90 | JLA-07-05-7A-110 | JLA-07-05-7A-125 |
| 2.Warranty | one year for engine, 6months for other parts | ||
| 3.Approval | CE | CE | CE |
| ENGINE | |||
| 4.Cylinder | Single | Single | Single |
| 5.Cooled System | Air | Air | Air |
| 6.Engine Stroke | 4 Stroke | 4 Stroke | 4 Stroke |
| 7.Bore*Stroke(mm) | 47×49.5mm | 52.4×49.5mm | 55.5X49.5mm |
| 8.Displacement(ml) | 90cc | 110cc | 125cc |
| 9.Max.power(kw/rpm) | 3.3kw/7500rpm | 3.6kw/7500rpm | 6.8kw/7500rpm |
| 10.Max.torque(n.m/rpm) | 4.3Nm/5000rpm | 5.2Nm/5000rpm | 8.6Nm/5000rpm |
| 11.Ignition Type | CDI | CDI | CDI |
| TRANSMISSION | |||
| 12.Transmission Type | Automatic,chain | Automatic,chain | Automatic,chain |
| 13.Primary Drive(Rear Wheel) | Chain 4x2 | Chain 4x2 | Chain 4x2 |
| 14.Reverse | No | No | No |
| 15.Max Speed(km/h) | ≥50 | ≥50 | ≥50 |
| WHEEL | |||
| 16.Front wheel | 16x8-7 | 16x8-7 | 16x8-7 |
| 17.Rear wheel | 16x8-7 | 16x8-7 | 16x8-7 |
| SUSPENSION | |||
| 18.Front Suspension | Double A-Swing Arm | Double A-Swing Arm | Double A-Swing Arm |
| 19.Rear Suspension | Mono Shock Swing Arm | Mono Shock Swing Arm | Mono Shock Swing Arm |
| BRAKE SYSTEM | |||
| 20.Front brake | Drum | Drum | Drum |
| 21.Rear brake | Disc | Disc | Disc |
| 22.Braking distance | 8m(30km/h) | 8m(30km/h) | 8m(30km/h) |
| TECHINCAL SPECIFICATIONS | |||
| 23.Product Dimensions(mm) | 1520x860x910mm | 1520x860x910mm | 1520x860x910mm |
| 24.Ground Clearance(mm) | 100mm | 100mm | 100mm |
| 25.Wheelbase(mm) | 880mm | 880mm | 880mm |
| 26.Mini Turning Radius(mm) | 2800mm | 2800mm | 2800mm |
| 27.Gross weight(kgs) | 90.5 | 90.5 | 90.5 |
| 28.Net weight(kgs) | 83 | 83 | 83 |
| 29.Fuel Capacity(L) | 3.2 | 3.2 | 3.2 |
| 30.Fuel consumption | 2.8L/100KM | 2.8L/100KM | 2.8L/100KM |
| SEAT | |||
| 31.Seat Height(mm) | 590 | 590 | 590 |
| 32.Number of Seats | 1 | 1 | 1 |
| COLOR | |||
| 33.Standard Color | Red/Yellow/Blue/Green/Black/White | ||
| 34.Optional Color | Green camo,Yellow camo,Snow Camo,Metallic,Carbon | ||
| LOADING | |||
| 35.Packing Size(mm) | 1250x760x660 (Steel frame inside,carton outside) | ||
| 36.Quantity | 20FT:36PCS; 40FT:81PCS; 40HQ:108PCS | ||
| PRICE | |||
| 37.MOQ | 1X20FT | 1X20FT | 1X20FT |
