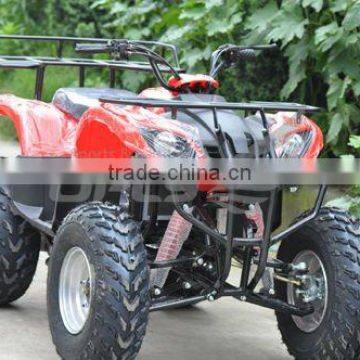

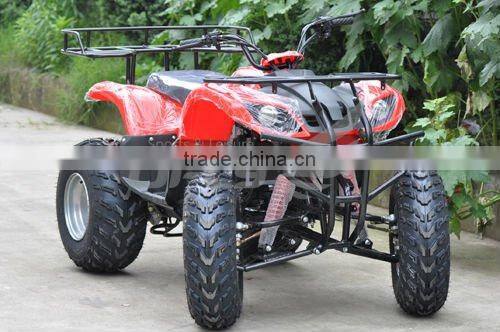

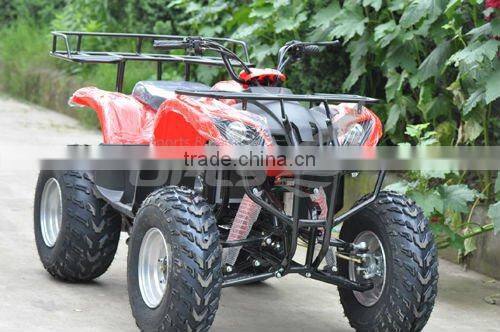

200CC ATV Equipped With Powerful Water Cooling Engine

Specifications

ATV

CE Approved 200CC ATV Equipped with Powerful Water Cooling Engine

AT2007

Key Specifications:

1. Wheel number: 4
2. Piston Displacement: 200cc
3. Fuel Tank: 4.5 liters
4. Fuel Type: unleaded gasoline with octane no. 91 or higher
5. Engine type: single cylinder, water-cooled
6. Starting system: electric
7. Drive train: chain
8. Ignition method: CDI
9. Output: max. 10.0kW/7,500rpm
10. Torque: 13.5N.m/6,500rpm
11. Brakes: front: drum, rear: disc
12. Transmission: four gears with reverse and manual clutch
13. Wheel Side: front: 21 x 7-8, rear: 20 x 9.5-8
14. Reserve: inner reverse gear
15. Min. ground clearance: 125mm
16. Max. load: 100kg/220lbs
17. Max. speed: >60km/h,37miles/h
18. Climbing ability: <20 degrees
19. Wheelbase: 1,050mm
20. Seat height: 780mm

Package: Carton Packing

1. Net weight: 165kgs/363Ibs
2. Gross weight: 175kgs/385Ibs
3. Carton size: 168X96X88CM
4. Container: 14pcs/20ft; 28pcs/40; 42pcs/40HQ

Special Features:

l         Chain Driving power Transmission

l         CDI Ignition mode

l         Powerful water cooling engine

Minimum Order quantity: 5pcs
