Specifications

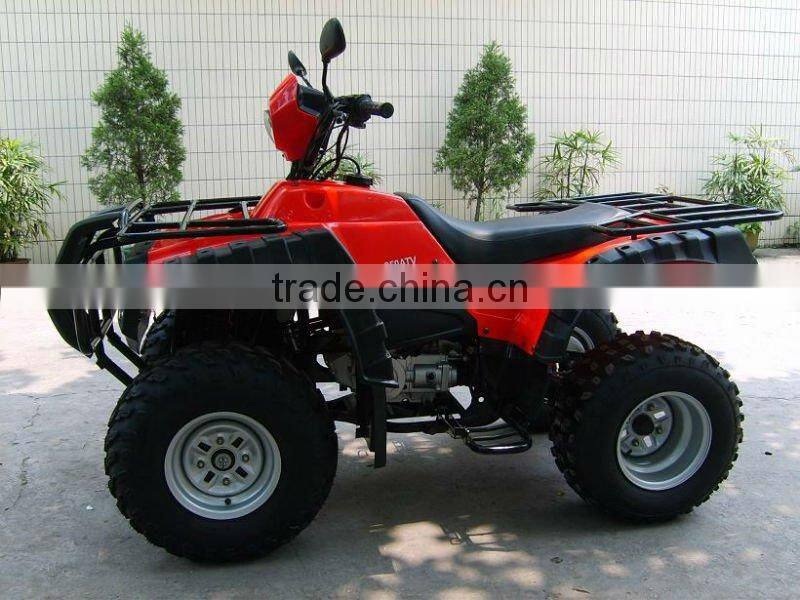

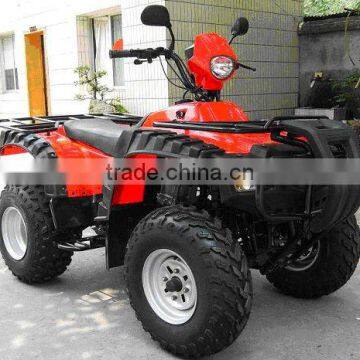

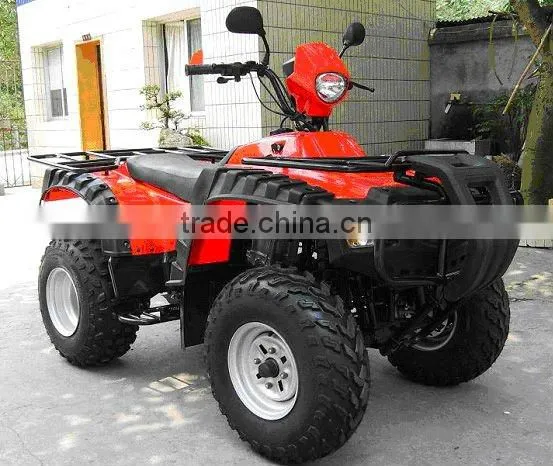

Water Cooling 4-Stroke 300cc Engine ATV with Shaft Drive Power Transmission

WZAT3002

Key Specifications:

1. Wheel number: 4
2. Piston Displacement: 300cc
3. Fuel Tank Volume: 12 liters
4. Fuel Type: Pure oil
5. Ignition method: CDI
6. Start mode: Electric Recoil Backup
7. Battery: 12V-14Ah
8. Engine type: 4-stroke, Water-Cooled, Single Cylinder
9. Compression ratio: 8.9:1
10. Max speed: >70km/h;43miles/h
11. Standard loading capacity: >165kgs/360Ibs 2 persons
12. Brake: Front: disc brake; Rear: drum brake
13. Shock suspensions: front: lead arm; rear: swing arm
14. Transmission: 4 Forward,1 Reverse
15. Lubrication method: Pressure/split
16. Wheel size: front: AT 23x7-10;  rear: 22x10-10
17. Overall dimensions: 1880x1040x1140mm
18. Minimum ground clearance: 200mm
19. Wheelbase:1040mm
20. Seat height(from ground): 810mm
21. Min Turning Radius: 2900mm
22. Climb capability: ≥35 degree
23. Parking brake: mechanical lock

Package:

1. Net weight: 240kgs/528Ibs
2. Gross weight: 340kgs/748Ibs
3. Color available: red, blue, light green, black
4. Container: 11pcs/20ft; 24pcs/40; 36pcs/40HQ

Special Features:

l         Water Cooling Engine

l         Shaft Drive Power Transmission

l         Stable quality
