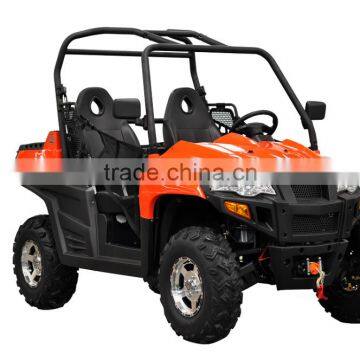

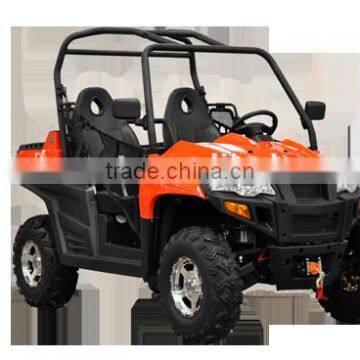

800cc Eec Road Legal Racing Buggy UTV 4x4

FOB Price

Negotiable / Unit

16 Units(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

ENGINE
engine type	twin v-type cylinder,8 valve
engine cooling system	water cooled
compressional ratio	0.417361111
displacement	800CC
Bore×Stroke	91×61.5
culutch type	CVT
CVT specification	0.6-2.7
gear ration	H:1.7315-7.7919,L:3.1754-14.2892,R:3.2703-14.7164
front axle differential(Y/N)	Y
rear axle differential(Y/N)	Y
gas supplying system type	electric inject
cargo box dimension	1100×580×215
frame structure	steel plate & tube combined
engine power	41KW/6800RPM
engine torque	91N.M/4250RPM
FRAME
length	2670mm
width	1345mm
height	1900mm
wheelbase	1895mm
ground clearance	320mm
front wheel treat	1100mm
rear wheel treat	1150mm
external diameter,front wheel	635mm
external diameter,rear wheel	635mm
unloaded weight(fuel , oil,tools,cooling liquid included)	510kg
loaded weight (unload wieight,cargo,drive,passenager included)	810kg
towing capacity	550kg
Battery capacity	32Ah
minimum turning radius	4000mm
Max.travel ,front tyre	120mm
Max.travel ,rear tyre	120mm
front suspension type	independ dual cross arm
rear suspension type	independ dual cross arm
front shock absorber type	hydraulic spring combined type
rear shock absorber type	hydraulic spring combined type
front tyre size	25×8-12
rear tyre size	25×10-12
front rim size	6.0×12
rear rim size	7.5×12
Packing Size	230014501260mm
Loading Quantity	4pcs/20'GP; 8pcs/40'GP; 16pcs/40'HQ
