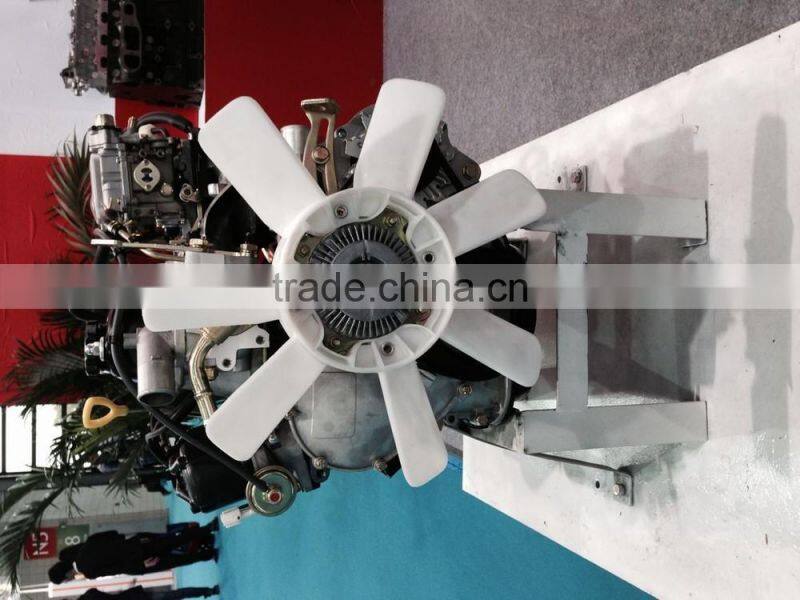

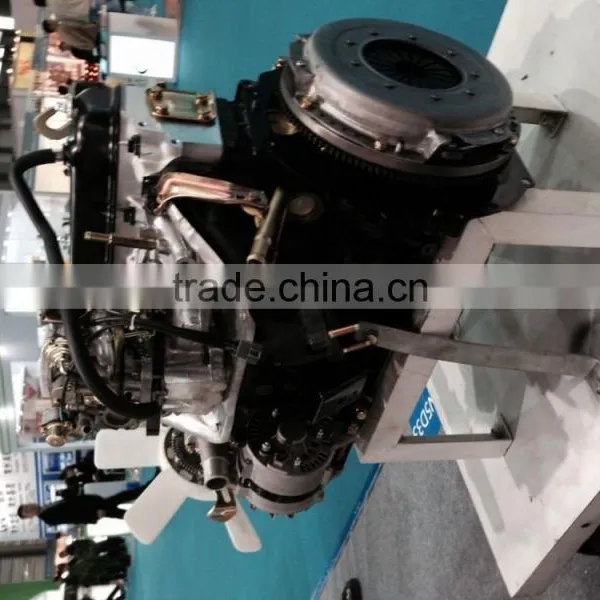

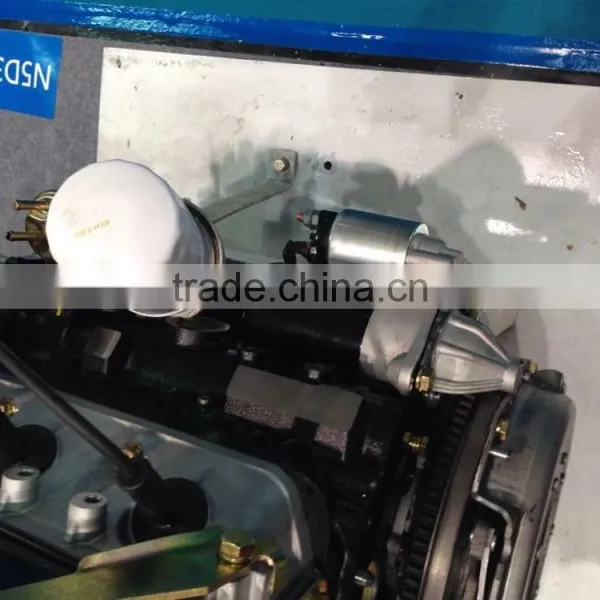

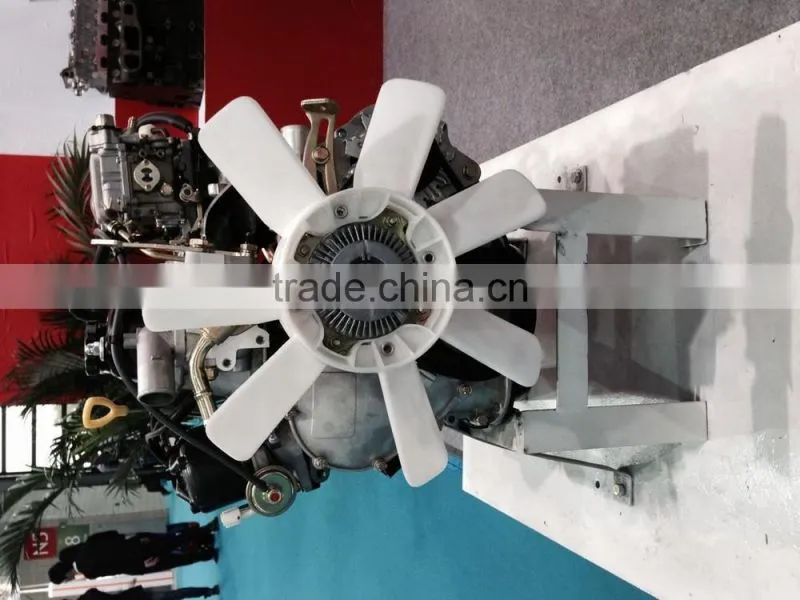

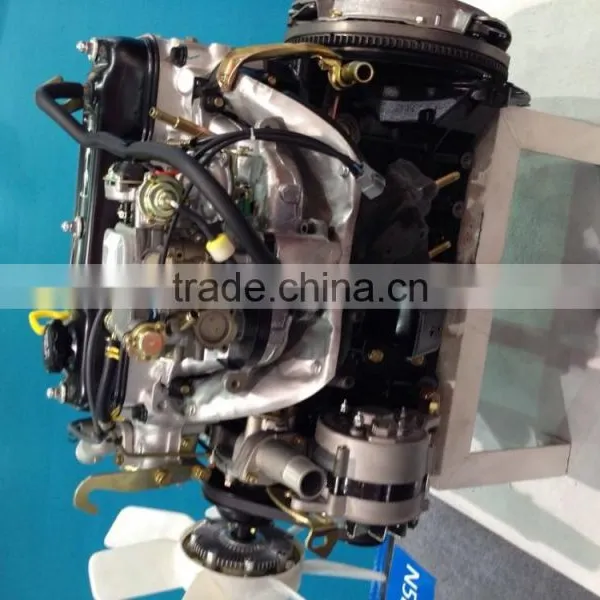

TOYOTA 4Y Engine Assembly 4Y-EFI 4Y Gasoline Engine

Negotiable MOQ: 10 Units (Price negotiable depending on order volume and customization)

Key Specifications

Type:

Gas / Petrol Engine

No. of Cylinders:

4 Cylinder

Power:

58kw

Shanghai Junbo Industrial Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Type Gas / Petrol Engine

No. of Cylinders 4 Cylinder

Power 58kw

Displacement 2.237 L

Brand Name OEM

Model Number 4Y

Warranty 1 Years

Parameters:

Model: 4Y Petrol/CNG, 4Y Petrol/LPG
Type: 4 stroke, water cooling, inline, wedge shape combustion chamber
Cylinders: 4
Bore: 91mm
Stroke: 86mm
Displacement: 2.237 L
Power/rpm: 58kw/4, 200-4,600rpm (CNG), 63kw/4, 200-4,600rpm (LPG)
Idle speed/rpm: 750 ± 50rpm
Max. torque/rpm: 150N.m/2,800-3,200rpm (CNG) 165N.m/2,800-3,200rpm (LPG)
Fuel supply: Carburetor, petrol/CNG carburetor, petrol/LPG
Mixer venturi or proportional
Fuel RON 90 ( GB484) & CNG RON 90 (GB484) & LPG
Min. fuel consumption Petrol d295g/kw.h, CNG d8.3m3/100km Petrold295g/kw.h, LPG d7kg/100km
Oil SAE 15W40, special for CNG
Oil consumption d 0.8 %
Piston average speed 13.19m/s
Crankshaft rotation ( facing to flywheel) anticlockwise
Compression ratio 8.8
Ignition order 1-3-4-2
Distributing: Intake in advance: 12°, Intake in lag: 48° , Exhaust in advance: 54°, Exhaust in lag: 10°
Cooling centrifugal water pumped cycling
Lubricating: pressed and splashed
Starting: electric starter
