Help Centera Series of Chinese Manufacturer Tricycle Gear Box Reverse Device for 3 Wheels Motorcycle
Related Products
-
Factory Made Grey 200cc Cargo Tricycles Reverse GearboxUS$ 20 - 30MOQ: 10 Pieces -
Zongshen Grey Best Seller 200cc Reverse Gear DeviceUS$ 20 - 27MOQ: 100 Sets
-
Adult Tricycle With Front Fork Reverse Gearing Device AssemblyUS$ 20 - 27MOQ: 100 Sets
-
High Performance Three Wheel Motorcycle 200cc Reverse GearboxUS$ 20 - 30MOQ: 10 Sets
-
Tricycle Reverse Gear 150cc DeviceUS$ 20 - 30MOQ: 100 Sets
Specifications
1.Material: Reverse device case: Al Alloy(ADC-12)2.Used for 50ml--300ml engine;
3.Engraved character.

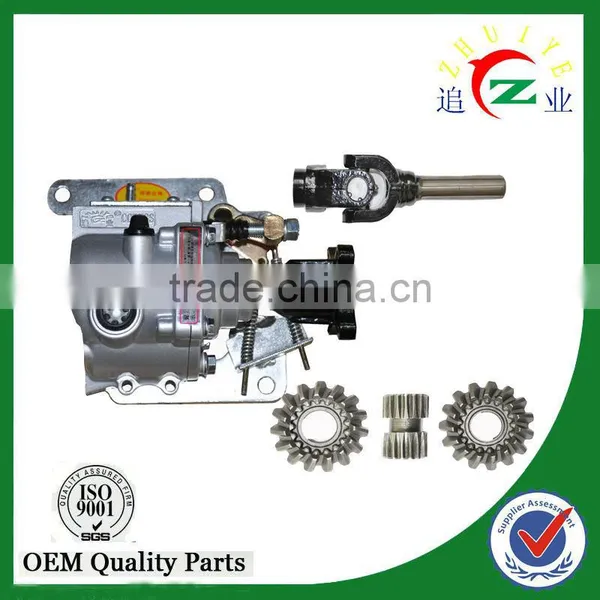

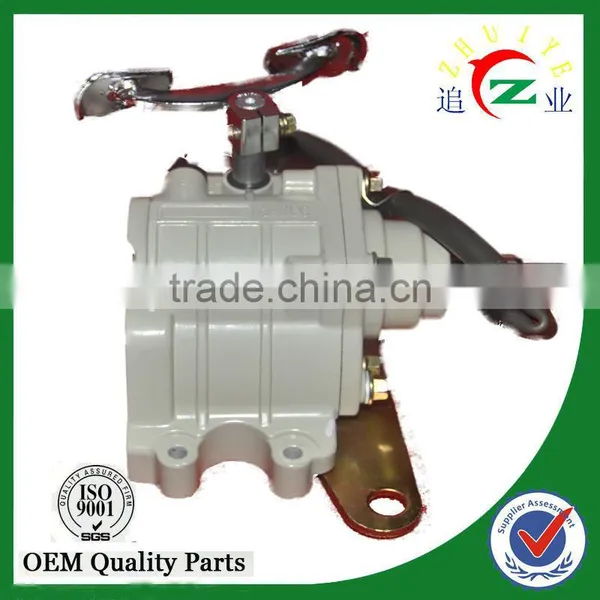

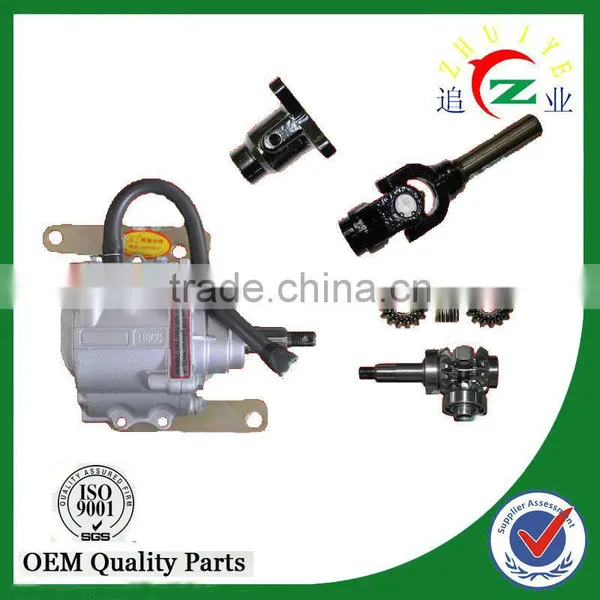

Chinese manufacturer tricycle gear box reverse device for 3 wheels motorcycle
Description | series tricycle gear box |
Ratio | 12:15/11:14 |
Power input spline | 17*14*4 |
Power output spline | 20*17*4/17*14*4 |
Bearing | 6205/6009 |
Gear material | 20CrMnTi |
Reverse device case material | Al Alloy(ADC-12) |
Lubricating oil | GL-5 |
Gear modulus | 4mm |
Brand | Xianyou |
Application | Tricycle,ATV etc. |
Packaging | Carton, wooden case etc. |
Payment terms | T/T, L/C, D/P etc. |
110cc and 125cc series reverse device
It can be installed on 110cc/ 100cc engine of motorcycle, electromobile,
sightseeing vehicle, ATV etc., shifting gear by pedal and internal gears
are meshed through involute spline.
200cc and 300cc series reverse device
Motorcycle 200cc reverse device with pedal installs pedal in the middle
and adopts intermediate shifting gear mechanism, flexible and reliable.
Active tooth adopts 30mm diameter one with module 4 mm, which
effectively enhances the bearing capacity of the reverse device and the
life of gear. Active tooth adds a retainer ring, which effectively prevents
the active gear moving. Meanwhile, reverse device shell adopts a new
strengthening design, which effectively increases the strength of reverse
device shell.
Packaging details
1. Anti-rust paper, box, carton, wooden case
2.Custom packaging according to your specifications
our shipment
we adopt the container to ship by sea. the picture is as below:
OUR COMPANY
detail information
Our Company Name | Chongqing Xianyou Technology Development Co., Led. |
Established Time | founded in 1998 |
Our Company Character | specialized in machinery research, development and manufacture , high-tech Enterprise |
Our Factory Produce | all kinds of gears, gear box, rear axle for tricycle |
Our Award | in 2002 the gold medal of China quality “Wan Li Xing” in 2009 obtained the national high and new technology enterprisecertificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions |
Patents | 18 national patents |
Hardware Facilities | We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment |
Production capacity
| reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets. |
1.our office and factory
2.Factory equipments about Gear machine
3.Factory equipments about reverse gearbox
3.our Field (product pictures)
we mainly produce the gear, reverse gearbox, rear axle ,transmission ect.
Certificate
Contact information
Name: Gordon Yu
Company: Chongqing Xianyou Technology Development Co., Ltd.
Website: /article.asp?5
TEL: 0086--023--18323080259
Skype:gordon.yu7
