200cc Tricycle Reverse Gearing Device With a Fork

200cc Tricycle Reverse Gearing Device With a Fork thumbnail-1
200cc Tricycle Reverse Gearing Device With a Fork thumbnail-2
200cc Tricycle Reverse Gearing Device With a Fork thumbnail-3
200cc Tricycle Reverse Gearing Device With a Fork thumbnail-4
200cc Tricycle Reverse Gearing Device With a Fork photo-1
200cc Tricycle Reverse Gearing Device With a Fork photo-2
200cc Tricycle Reverse Gearing Device With a Fork photo-3
200cc Tricycle Reverse Gearing Device With a Fork photo-4
US$ 20 - 30 MOQ: 100 Sets
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
201 - 250cc
Contact Supplier Request Quote Chat Now
Chongqing Xianyou Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Motorized
Displacement 201 - 250cc
Body Type Open
Certification Other, ISO BV
Brand Name Xianyou
Place of Origin Chongqing, China
Model Number 200cc

Specifications

1.High quality,Stable performance
2.Original factory price and quality
3.Special design for cargo tricycle

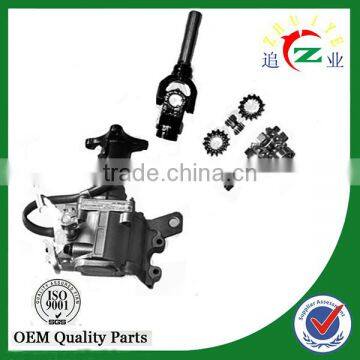

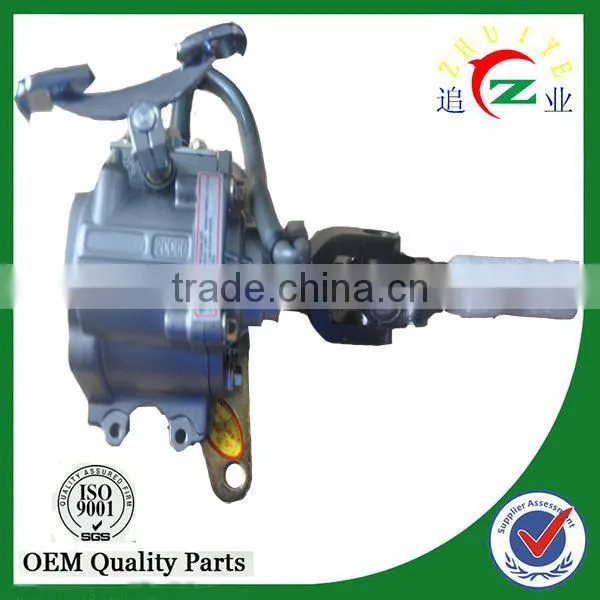

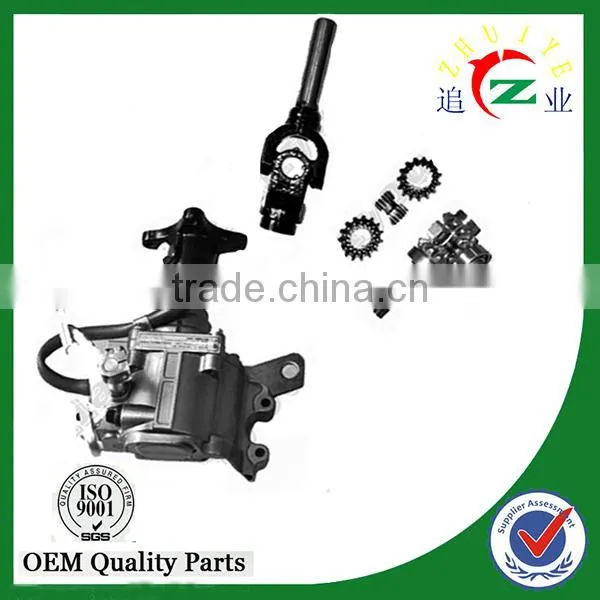

  200cc tricycle Reverse Gearing Device with a fork



1.Material of Reversing device case: Al Alloy(AOC-12) advantage: light, strong, durable, easy to process

Gear: 20CrMnTi

Lubricating oil: GL-5 adding anti freezing according to the climate

2.Used for 50ml, 70ml, 90ml,100ml, 110ml, 125ml engine;

3.Cooperatively use the structure of coupling spline

4.ISO 9001

5.Active gear has a diameter of 30mm, modulus of 4mm.

200cc tricycle Reverse Gearing Device with a fork

Brand Name

 Xianyou

Patent No.

ZL 98 2 28725.9

Applicable Vehicle

Tricycle; ATV

Quantity/1 month

60000 Sets

Input spline parameter

20*17*4

Out spline parameter

20*17*4

Speed ratio

1.27

Gear ratio

14:11; 15:12; 16:13

Material

ADC-12,20CrMnTi,Al alloy

MOQ

100 Sets

Packaging

antirust paper, carton, and wooden case or custom packaging according to your specifications.

Payment terms

D/P

Price: FOB

Delivery time

20 days or less, according to clients' quantity

Similar reverse gearing device

125cc reversing gear device; 110cc reverse gearing device; 200cc reverse device; 300cc reversing gearing device; 150 gearing device

200cc tricycle Reverse Gearing Device with a fork

200cc tricycle Reverse Gearing Device with a fork

Company information



Company Name Chongqing Xianyou technology development co., Led.
Established Time founded in 1998
Company Character Was specialized in pow machinery research, development
and manufacture high-tech Enterprise
Factory Produce reverse gear, used for the three wheeled motorcycle,
ATV, speedboat. We can produce rear axle for mini car e
and electric vehicl
Award in 2002-the gold medal of China quality “Wan Li Xing”
In 2009-obtained the national high and new technology enterprise
certificates issued by ministry of science and technology
In 2008-four product standards and Chongqing key new product and
excellent key new product certificate by chongqing two
diferent authority Official institutions
Patents 18 national patents
Hardware Facilities We have 2 assembly workshop, 2 machining workshop, a district- leve
l R&D center, 3 semi-automatic assembly lines, 60 sets of spiral
bevel gear milling machine, 20 sets of Case processing Machine, 8
sets automatic welding machine and 100 sets CNC machining equipment
Production capacity reverse gear annual output can reach 700,000 sets; rear
  axle can reach 81,000 sets; gear box can reach 827,000 sets.



200cc tricycle Reverse Gearing Device with a fork

200cc tricycle Reverse Gearing Device with a fork



 Factory equipments

Machine shops of gear, reverse gear, gearbox, rear axle

200cc tricycle Reverse Gearing Device with a fork200cc tricycle Reverse Gearing Device with a fork200cc tricycle Reverse Gearing Device with a fork200cc tricycle Reverse Gearing Device with a fork200cc tricycle Reverse Gearing Device with a fork

Packaging details and our shipment

1. Anti-rust paper, box, carton, wooden case

2. Custom packaging according to your specifications

200cc tricycle Reverse Gearing Device with a fork



Certificate

200cc tricycle Reverse Gearing Device with a fork200cc tricycle Reverse Gearing Device with a fork
