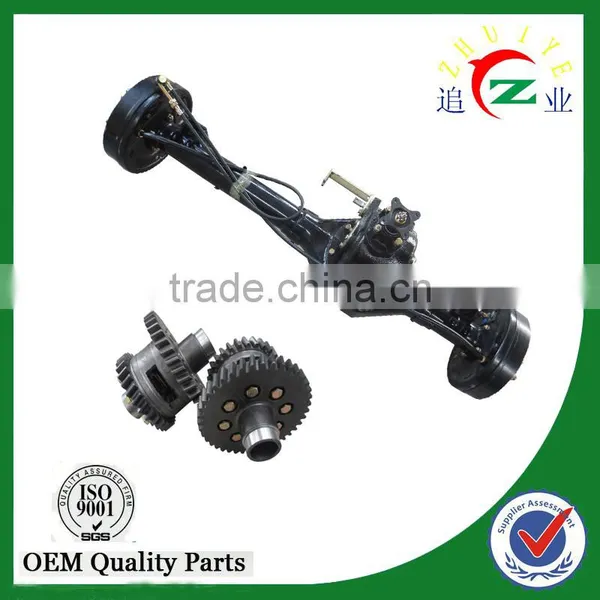

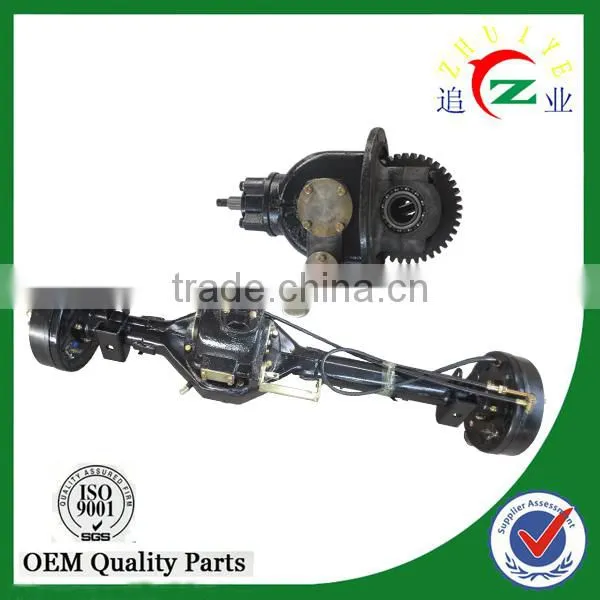

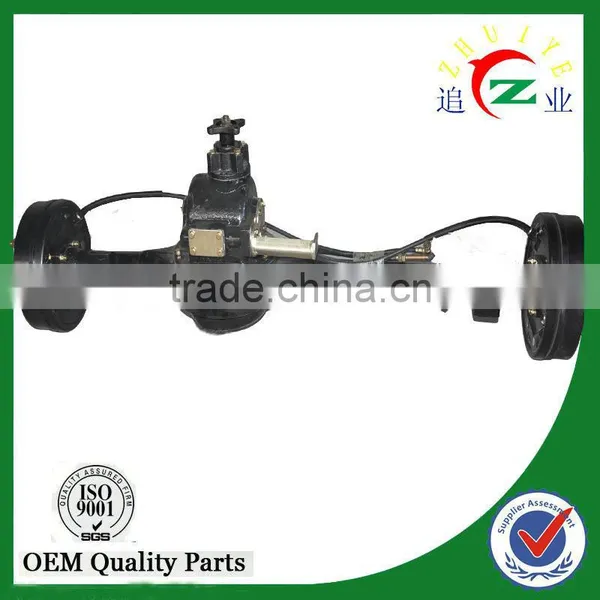

three wheeler motorcycle chassis parts heavy duty rear axle for cargo tricycle
| Description | three wheeler motorcycle chassis parts heavy duty rear axle for cargo tricycle |
| Structure | Full floating |
| Bearing | 32009 tapered bearing |
| Brake | Hydraulic brake |
| Length of rear axle | 1180mm 1148mm etc. (From hub to hub) |
| Ratio | High speed2.68 low speed6.25 |
| Input spline | 20*17*4 |
| Material | 60*4(GB/T8162-1999 seamless steel tube) |
| Rim lock bolt | 5-M14*1.5 right-and-left threaded |
| Rear axle tube | 60mm/65mm/75mm |
| Speed | 2 speed |
| PCD | 5*140 |
| Offset | 120mm |
| Delivery | Within 30days |
| Load capacity | <2T |
| Wheel hub diameter | 220mm |
| Net weight | 65kg |
| Fit engine | from 50cc--400cc |
| Brand | Xianyou |
| Differential case diameter | 180mm |
| Brand | Xianyou |
| Payment terms | T/T, L/C, D/P etc. |
|
1.Tricycle hydraulic brake full floating rear axle is specially designed for over loading tricycle or mini car; 2.Tricycle hydraulic brake full floating rear axle is equipped with 180mm diameter diffrential housing; 3.Tricycle oil brake full floating rear axle has two speed: high and low speed, providing vehicle enough power to run undervarious loadings and road conditions. 4.Rear axle tube adopts 70* 5seamless steel tube, greatly improving the driving axle bearing capacity. 5.Half shaft adopts full floating support form, greatly improving the traffic safety factor. |
Packaging details
1. Anti-rust paper, box, carton, wooden case
2.Custom packaging according to your specifications
our shipment
we adopt the container to ship by sea. the picture is as below:
OUR COMPANY
Our Company Name |
Chongqing Xianyou Technology Development Co., Led. |
Established Time |
founded in 1998 |
Our Company Character |
specialized in machinery research, development and manufacture , high-tech Enterprise |
Our Factory Produce |
all kinds of gears, gear box, rear axle for tricycle |
Our Award |
in 2002-the gold medal of China quality “Wan Li Xing” in 2009-obtained the national high and new technology enterprise certificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions |
Patents |
18 national patents |
Hardware Facilities |
We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment |
|
Production capacity
|
reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets. |
1.our office and factory
2.Factory equipments about Gear machine
3.Factory equipments about reverse gearbox
4.our Field (product pictures)
we mainly produce the gear, reverse gearbox, rear axle ,transmission ect.
