Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed

Chongqing Xianyou Technology Development Co., Ltd.
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed thumbnail-1
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed thumbnail-2
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed thumbnail-3
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed thumbnail-4
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed thumbnail-5
Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed photo-1

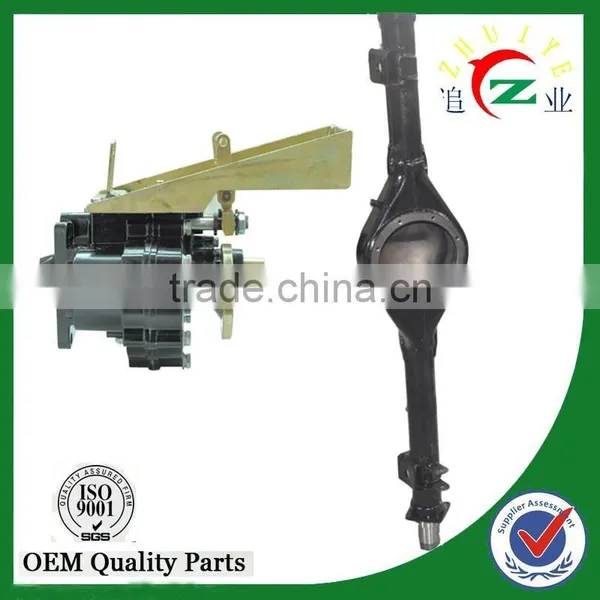

Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed photo-2

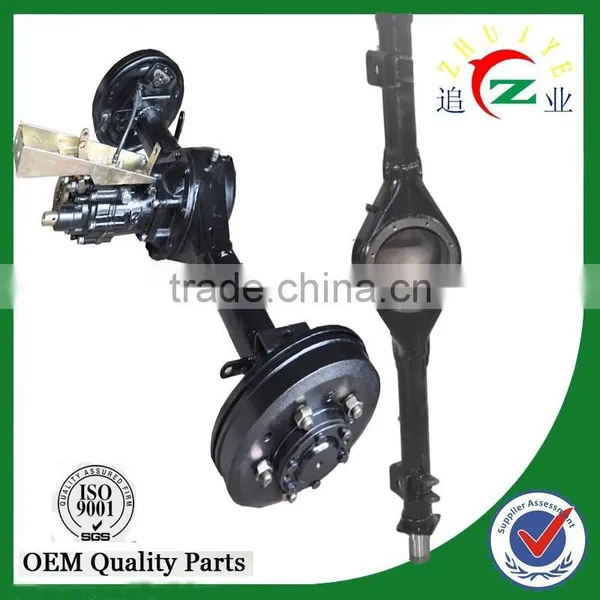

Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed photo-3

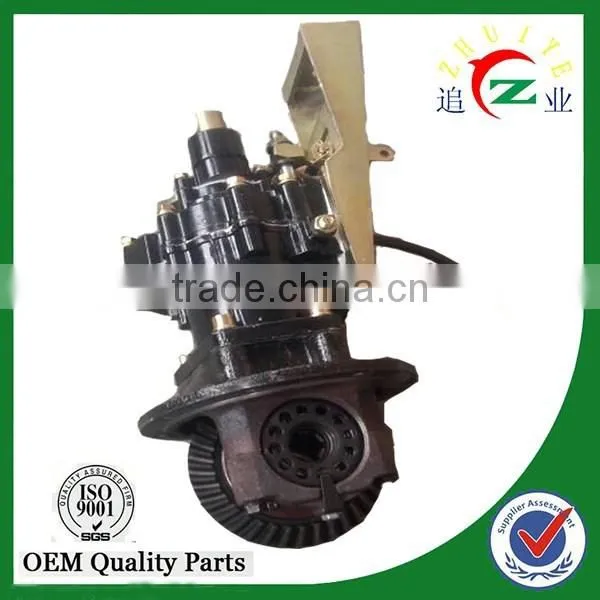

Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed photo-4

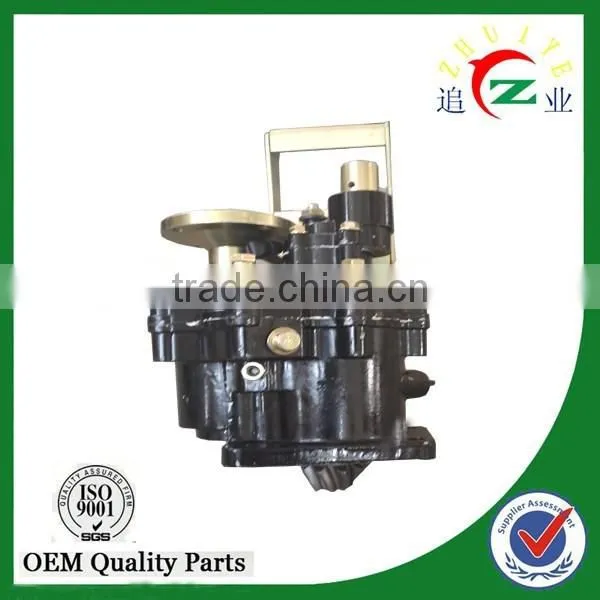

Tricycle Hydraulic Brake Full Floating UTV Rear Axle With Three Speed photo-5
Negotiable MOQ: 10 Sets (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Use For:
Cargo
Driving Type:
Motorized
Displacement:
> 250cc
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Use For Cargo
Driving Type Motorized
Body Type Open
Certification Other, ISO9001
Brand Name zhuiye
Place of Origin Chongqing, China
Model Number Full floating
Size Total 1180mm etc.

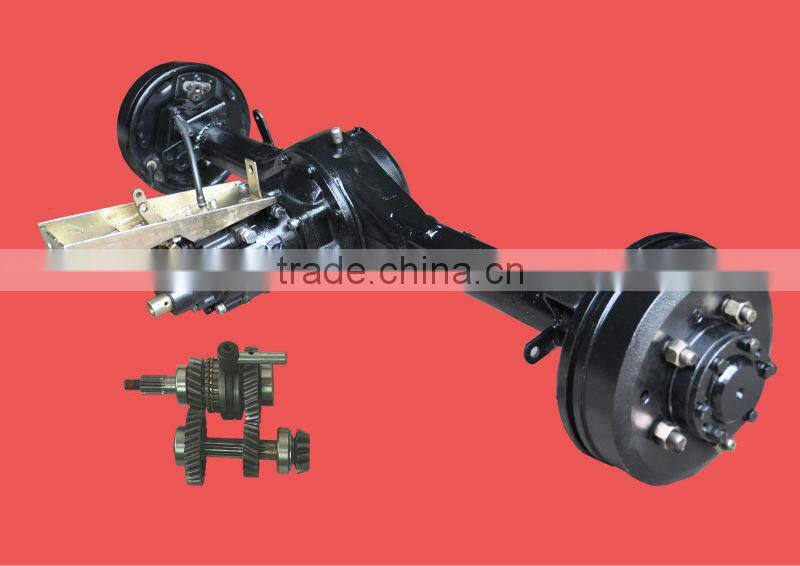

Tricycle hydraulic brake full floating UTV rear axle with three speed

Tricycle hydraulic brake full floating UTV rear axle with three speed

Structure

Full floating

Bearing

32009 tapered bearing

Brake

Hydraulic brake

Length of rear axle

1148mm, 1180mm,1270mm etc. (From hub to hub)

Ratio

Forward 3.16 , 6.39  reverse 6.6

Input spline

20*17*4

Material

60*4(GB/T8162-1999 seamless steel tube

Rim lock bolt

5-M14*1.5

Rear axle tube

60mm/65mm/70mm

Speed

3 speed

Incoterm

FOB etc.

Offset

120mm, 110mm, 115mm etc.

Delivery

Within 30 days

Load capacity

<=2T

Wheel hub diameter

 220mm

Net weight

50kg

Fit engine

from 50cc--400cc



Car standard rear axle ensures good power transmission;

rigid axle beam guarantees the safety and good performance on bumpy road.

Optional: the micro automobile hydraulic braking rear axle makes a sensitive

braking and ensures a safer driving.


Tricycle hydraulic brake full floating UTV rear axle with three speed

1.The rear axle has two forward and one reverse;

2.The rear axle is suitable for UTV, ATV and tricycle;

3.Low speed can make vehicles get more traction and climbing ability;

4.High speed can ensure the vehicle running speed requirements,

   improving the vehicle speed range;

5.The ton/km fuel consumption is decreased, reaching the "low carbon     effect" ;

6.Gearbox can shift forward and backward through a set of gears.

7.The operation is more comfortable and reliable with the  synchronizer.

8.Two cables

Packaging details

1. Anti-rust paper, box, carton, wooden case

2.Custom packaging according to your specifications



Tricycle hydraulic brake full floating UTV rear axle with three speed

our shipment

we adopt the container to ship by sea. the picture is as below:

Tricycle hydraulic brake full floating UTV rear axle with three speed



OUR COMPANY

Our Company Name

Chongqing Xianyou Technology Development Co., Led.

Established Time

founded in 1998

Our Company Character

specialized in machinery research, development and manufacture , high-tech Enterprise

Our Factory Produce

all kinds of gears, gear box, rear axle for tricycle

Our Award

in 2002-the gold medal of China quality “Wan Li Xing”

in 2009-obtained the national high and new technology enterprise

certificates issued by ministry of science and technology

in 2008-four product standards and Chongqing key new product and excellent key new product

certificate by Chongqing two  different authority Official institutions

Patents

18 national patents

Hardware Facilities

We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing

Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment

Production capacity



reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can

reach 827,000 sets.

 1.our  office and  factory

Tricycle hydraulic brake full floating UTV rear axle with three speed



Tricycle hydraulic brake full floating UTV rear axle with three speed

2.Factory equipments about  Gear machine

Tricycle hydraulic brake full floating UTV rear axle with three speed

3.Factory equipments about  reverse gearbox

Tricycle hydraulic brake full floating UTV rear axle with three speed



4.our  Field (product pictures)

we mainly produce the gear, reverse gearbox, rear axle ,transmission ect.

  Tricycle hydraulic brake full floating UTV rear axle with three speed
