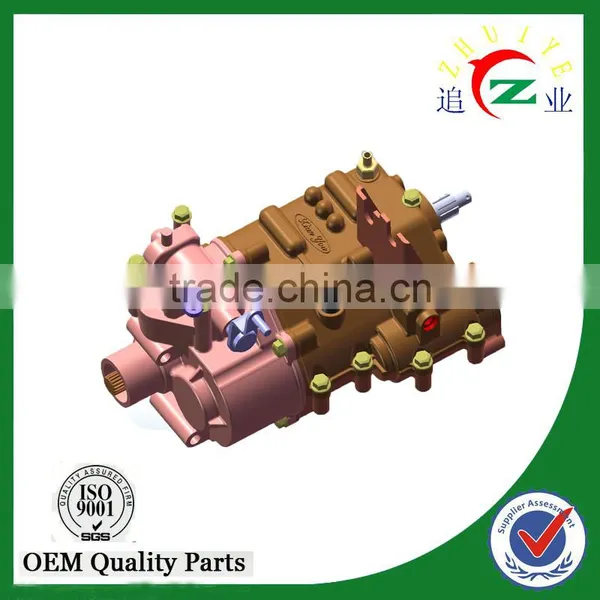

2016 factory heavy duty three wheeled vehicle transmission parts 5+2 gearbox
| Description | 2016 factory heavy duty three wheeled vehicle transmission parts 5+2 gearbox |
| Ratio |
Forward gear: 3.64 1.94 1.42 1 0.77 Reverse gear: 3.5
Vice shaft: 1.1
|
| Power input spline | 20*17*4 |
| Gear material | 20CrMnTi |
| Gear modulus | 3.5mm |
| Packaging | Carton, wooden case etc. |
| Payment terms | T/T, L/C, D/P etc. |
| Incoterm | FOB |
| Spline | rectangle |
| Speed | 5+2 |
| Brand | Xianyou |
| Payment terms | T/T, L/C, D/P etc. |
| Packing (pcs/ctn) | 1pc/ctn |
| N.W./G.W. (kgs/ctn) | 14kgs/ctn |
| Delivery (day) | Within 30days |
| Fit engine | 50--400cc |
| MOQ | 50 sets |
Advantage
5+2 gearbox is a synchronous and multi-function gearbox with 5 gears, developed on our rich experience of gearbox developing and research as well as analysis of tricycle and EV transmission system developing trend.
This gearbox aims to introduce car transmission to tricycle and EV. That’s to say power system, speed change system and transmission system all are single a unit. And engine is only a power take-off device without speed change system. In this way, engine life time is prolonged to decrease engine cost.
Packaging details
1. Anti-rust paper, box, carton, wooden case
2.Custom packaging according to your specifications
1.our company
Our Company Name |
Chongqing Xianyou Technology Development Co., Led. |
Established Time |
founded in 1998 |
Our Company Character |
specialized in machinery research, development and manufacture , high-tech Enterprise |
Our Factory Produce |
all kinds of gears, gear box, rear axle for tricycle |
Our Award |
in 2002-the gold medal of China quality “Wan Li Xing” in 2009-obtained the national high and new technology enterprise certificates issued by ministry of science and technology in 2008-four product standards and Chongqing key new product and excellent key new product certificate by Chongqing two different authority Official institutions |
Patents |
18 national patents |
Hardware Facilities |
We have 2 assembly workshop, 2 machining workshop, a district- level R&D center, 3 semi-automatic assembly lines, 60 sets of spiral bevel gear milling machine, 20 sets of Case processing Machine, 8 sets automatic welding machine and 100 sets CNC machining equipment |
|
Production capacity
|
reverse gear annual output can reach 700,000 sets; rear axle can reach 81,000 sets; gear box can reach 827,000 sets. |
2.our office
3.our equipment
4.our feild
5.our certificate
