US$ 95,000 - 110,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 3
Payment & Shipping
Payment Methods:
Port of Shipment:
Main ports in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HOWO Street SprinklerUS$ 35,000 - 58,000MOQ: 1 Unit -
SINOTRUK HOWO WATER TANK 30000LUS$ 40,000 - 60,000MOQ: 1 Unit
-
HOWO 4X2 Oil Tanker Truck for Sale SINOTRUKUS$ 33,000 - 55,000MOQ: 1 Unit
-
8X4 SINOTRUK HOWO Oil Tank TruckUS$ 40,000 - 60,000MOQ: 1 Unit
-
Bulk Cement Tank TruckNegotiableMOQ: 1 Unit
Condition
New
Transmission Type
Manual
Emission Standard
Euro 3
Fuel Type
Diesel
Dimensions (L x W x H) (mm)
10500x2496x3350
Gross Vehicle Weight
25000
Place of Origin
Shandong, China
Brand Name
HOWO
Model Number
ZZ1257M4647C
Specifications

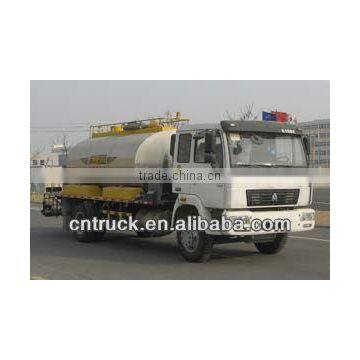

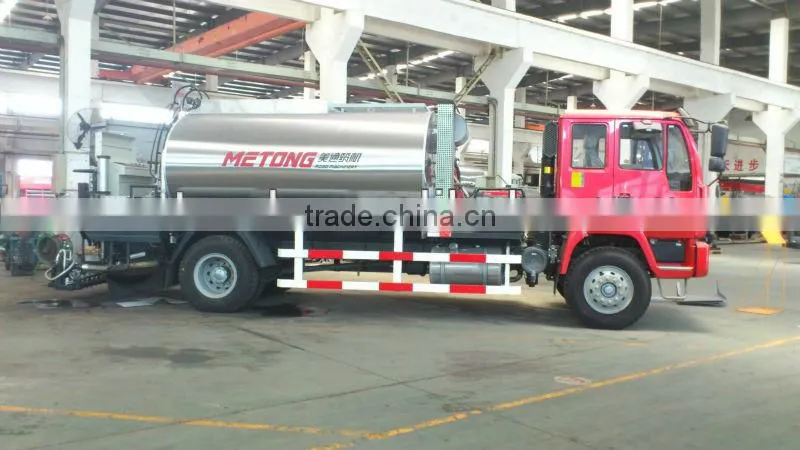

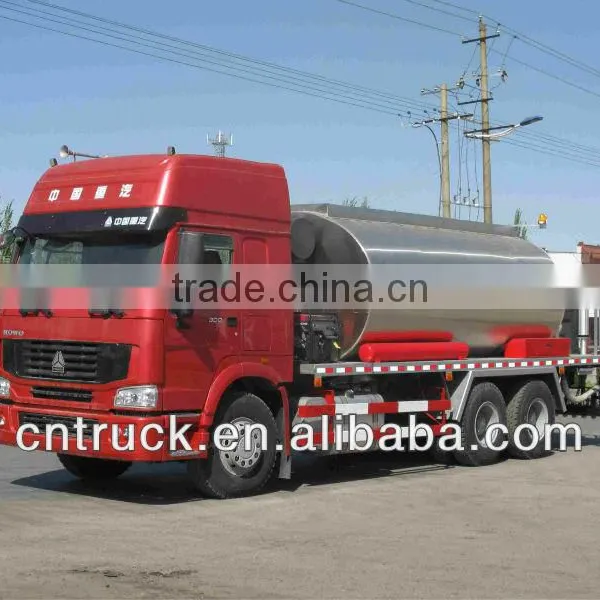

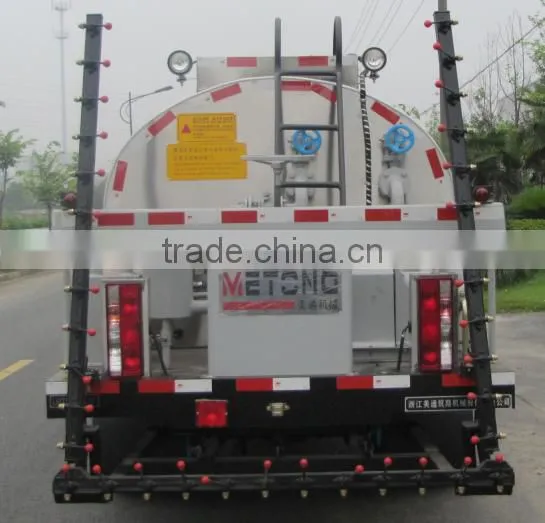

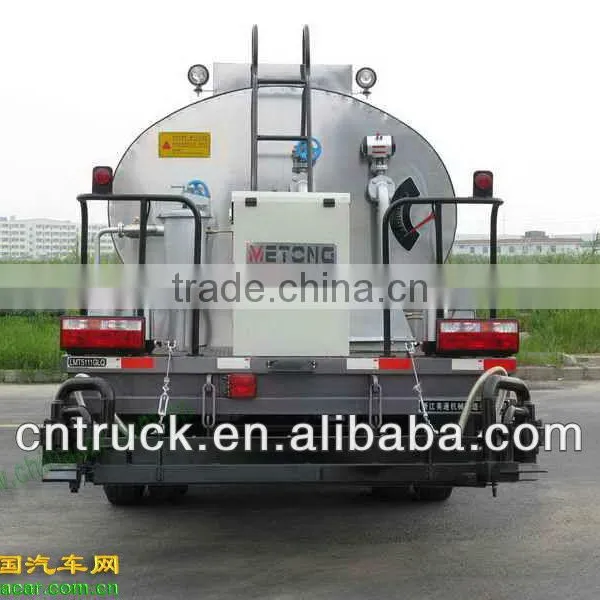

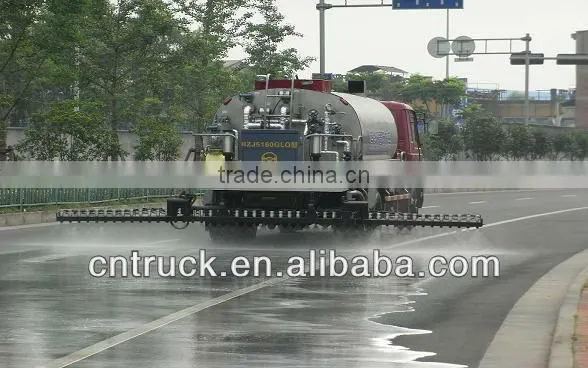

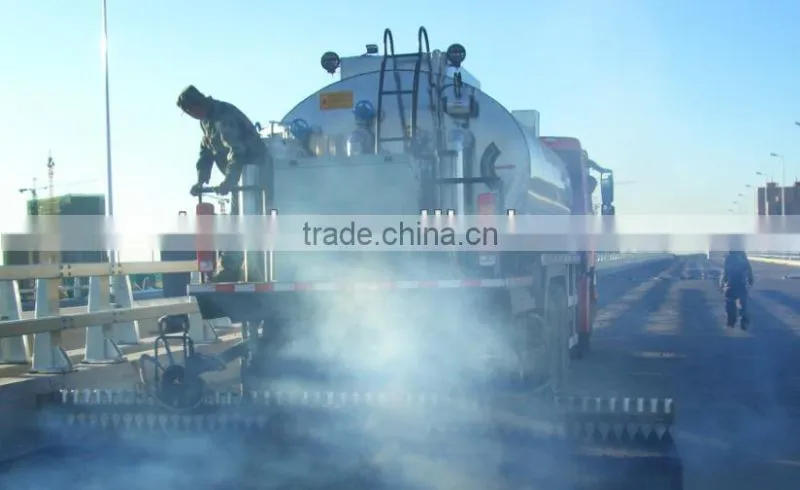

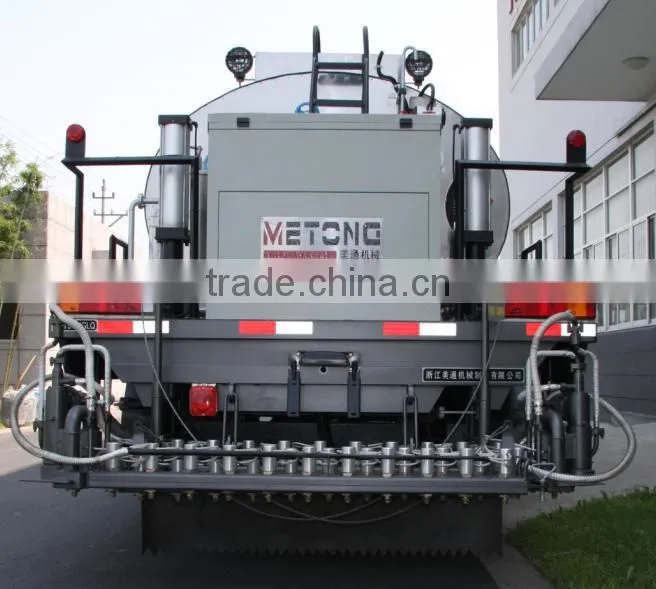

Asphalt Distributor Trucks 6*4 12m31.Body volume: 12m3
2.Star asphalt distributor of sinotruck
3.Automatic control system
| MAIN TECHNICAL PARAMETER | ||||
| Model | LMT5251GLQ | Engine Model | WD615.69 | |
| Chassis Model | ZZ1257M4647C | Displacement (L) | 9.726 | |
| Truck Type | flat head 6×4 rear drive | Max. Power (kw/r/min) | 213/2200 | |
| Dimension | 10500×2496×3350 | Max. Torque (N·m/r/min) | 1160/1300-1600 | |
| (L×W×H) mm | ||||
| Cab Passenger | 2 | Cleaning Diesel Tank Capacity(L) | 80 | |
| Vehicle kerb Mass (kg) | 15900 | Fuel Tank Capacity (L) | 190 | |
| Rated Load Mass (kg) | 8970 | Hydraulic oil Tank Capacity(L) | 120 | |
| Max. Total Mass (kg) | 25000 | Decelerator Model | ZL165 | |
| Distribution of Axle Load (KG) | Front Axle (no load) | 5100 | Decelerator Gear Ratio | 5.8116 |
| Front Axle (full load) | 7000 | Asphalt Pump Model | QGB950 | |
| Rear Axle (no load) | 10800 | Asphalt Pump Displacement (ml/r) | 950 | |
| Rear Axle (full load) | 18000 | Asphalt Pump Rotating Speed (r/m) | 100-600 | |
| Wheelbase (mm) | 4600+1350 | Heat Conducting Oil Pump | RY-40-25-160 | |
| Tread (front/rear) mm | 2022/1830 | Controlling panel | MT-5 | |
| Min. Ground Clearance (mm) | 205 | Burner Model | G20 | |
| Suspension (front/rear) mm | 1500/3050 | Inverter | NFA8212-2000W | |
| Approach/Departure Angle (°) | 15/12 | Rated Atmospheric Pressure (Mpa) | 0.6 | |
| Max. Speed (km/h) | 90 | Hydraulic Pump Model | CBQ-F550-AFPL | |
| Working Speed(km/h) | 2.5-10.5 | Hydraulic Motor Model | L2F63W2P2 | |
| Max. Gradeability (%) | >23 | Rated Pressure (Mpa) | 0.6 | |
| Tyre Model | 12.0-20 | Asphalt Tank Capacity (L) | 1200 | |
| Tyre Pressure front/rear (kPa) | 630/630 | Nozzle | 39(1 cylinder control 3 Nozzles) | |
| Main Drive Ratio | 4.22 | Asphalt Spraybar Variable (m) | 0~6 | |
| Max. Braking Distance (m) | <10 | Asphalt Spraybar Value (kg/m2) | 0.3~3.0 | |
| Min. Turning Circle Dia. (m) | <23.8 | Emission Standard | Euro III | |
| Oil Consumption (L/100km) | <20 | |||
| Parking Gradient (%) | >20 | |||
Our company, SINOTRUK QINGDAO HEAVY INDUSTRY CO.,LTD, is a famous manufacturer of special truck in China, such as ASPHALT DISTRIBUTOR, dump trucks. If any demand, please contact Mr. Jackie Chen.
