work trucks

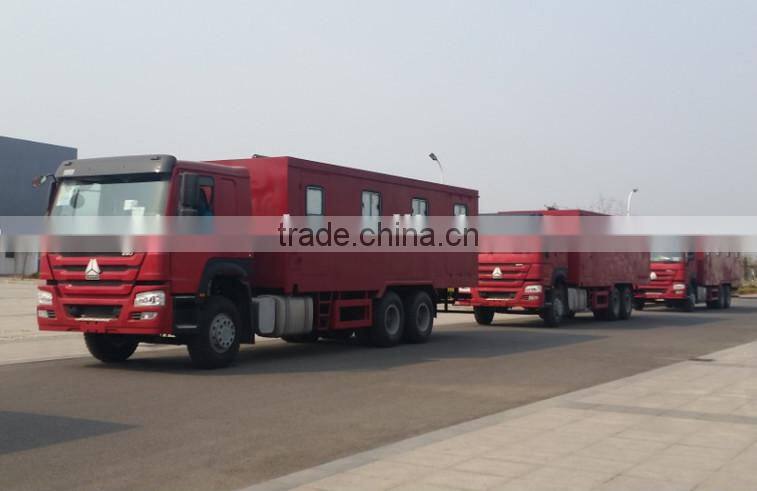

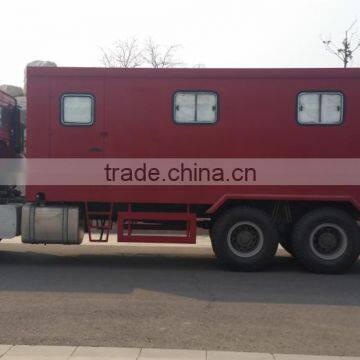

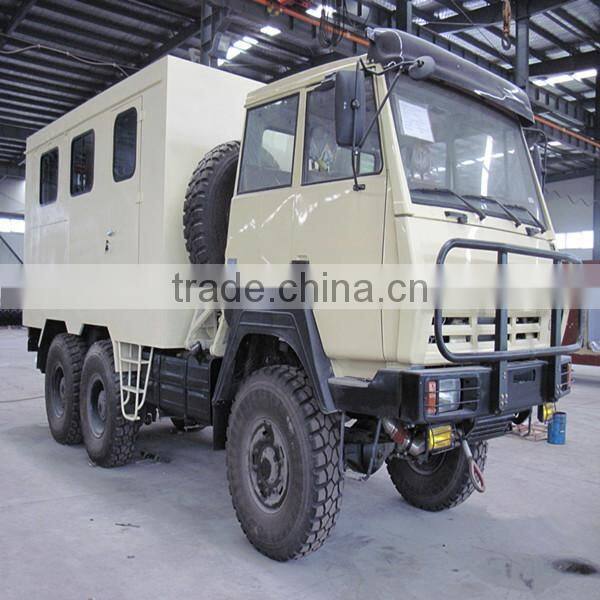

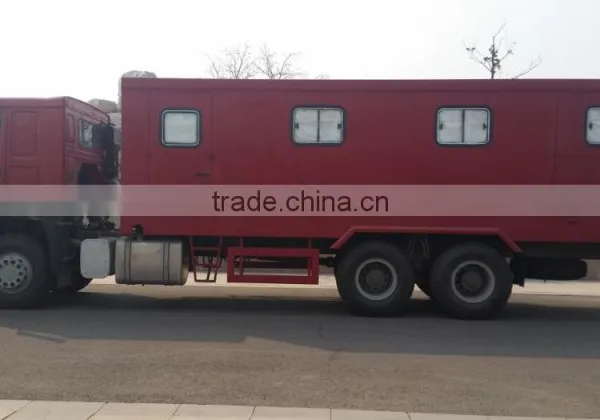

Mobile Workshop truck for sale
Engine
Make and model…………………..………….. WD615.62
Type………….. Diesel 4-stroke direct injection engine, 6-cylinder in-line with water cooling, turbo-charging & intercooling
Displacement................................................ 9.726 liter
Maximum output………………..…..266 HP@ 2200 rpm ( 196KW @ 2200 rpm )
Max. torque .......................... 1100NM@1300-1600 rpm
Bore ………………………………………………...126 mm
Stroke ………………………………………………130 mm
Mean piston speed ………………………………11.5 m/s
Compression ratio……….……………………………16:1
Specific fuel consumption …………..……...197 g/kWh
Engine oil filling quantity ……………………….19 liters
Cooling system filling quantity ……………….40 liters
Gearbox
Type..….........................………..... HW13710
No. of speeds ................................ 8 forward, 1 reverse
Forward ratio................................ 11.4; 7.94; 5.63; 4.06; 2.81; 1.96; 1.39; 1.00
Reverse ratio... .........................….........................11.35
Front axle
Type.…….Rigid stub axle with double T-cross members
Max. load............................................................ 6500Kg
Tandem axle
Type..........……………….…………Pressed axle housing, single reduction with planetary wheel reduction
Ratio..............................................……...………….....4.8
Max. load.......................................................….13000Kg
Frame
Type................................ parallel ladder with U-profiles and riveted cross members
Steering
Type.....................................................................ZF8098
Ratio................................................................……..26.2
Fuel tank capacity…………………………..…..400L
Wheels and tires
Rim……..............................................…..............8.50-20
Tire ……..........……………….……Triangle 11.00-20 /16
Quantity………………………………………………….7
Brakes
Service brake.................Double circuit pneumatic brake
Parking brake.............. Spring-powered air-cut off brake
Assistant brake..................Engine exhaust brake
HOWO Cabin
All-steel forward control, 70° hydraulically tiltable to the front, 3-arm windscreen wiper system with 3 speeds, laminate windscreen, with casted-in radio aerial,
Overall dimension (length×width×height) .....………….………….....8400×2496×3700mm
Body dimension (length x width) …….…4500 x 2300 x2000mm
Wheelbase....………………….………......4600+1350mm

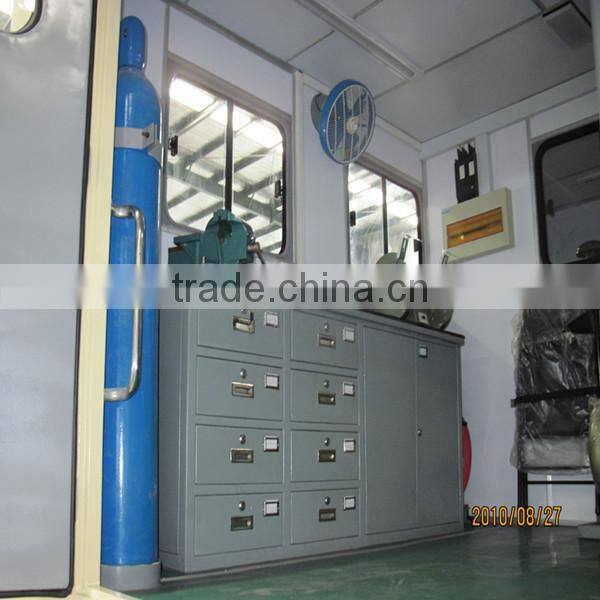

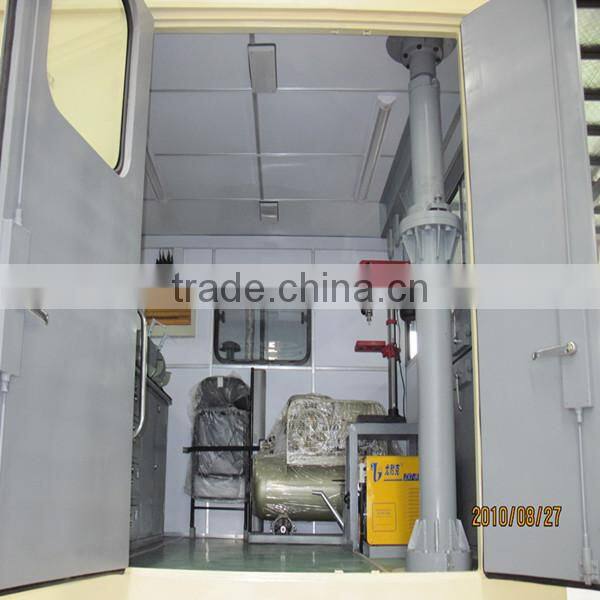

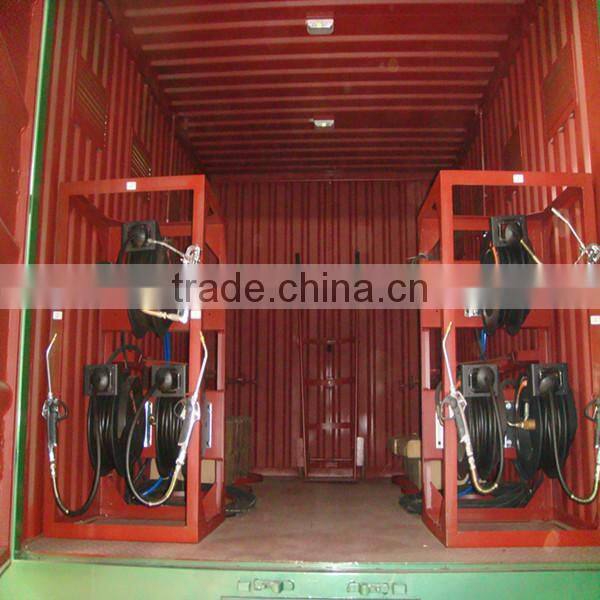

upper frame configuration

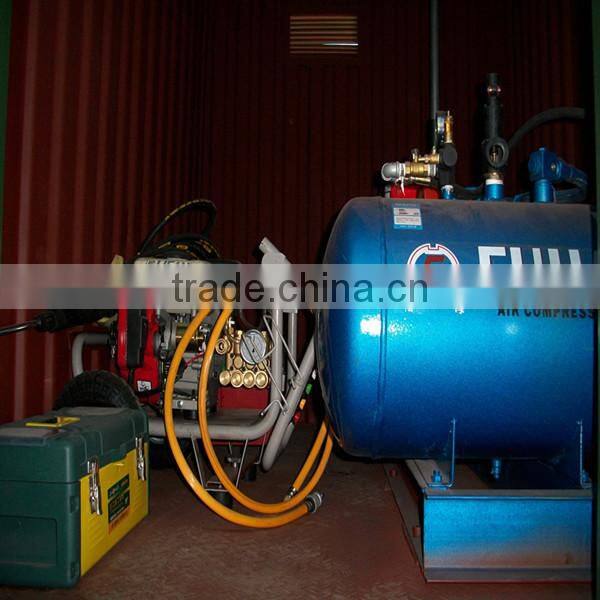

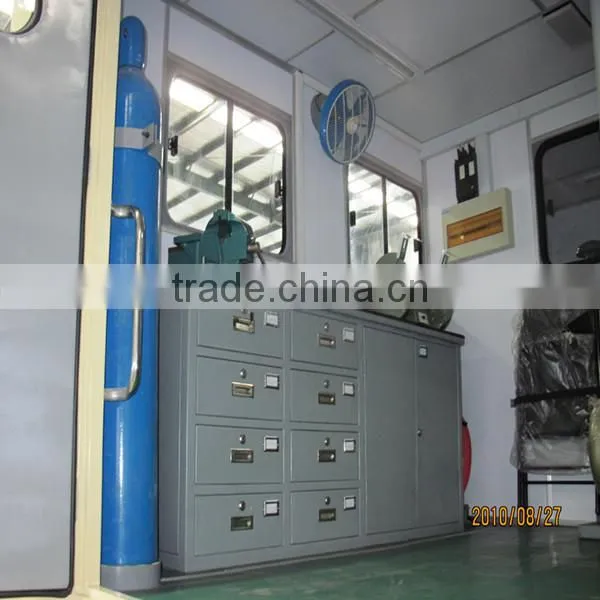

40kw Generator,Oxygen bottle,Acetylene bottle,Inventer welder with cable,Air compressor ,Bench driller,Bench Grider,Bench vise,wall fan,workbench with drawer,mobile cable roll,standard tool,folder chair,lathe,insulation carpet,reserve tyre
