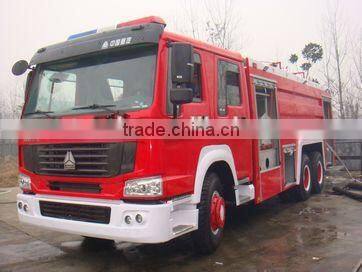

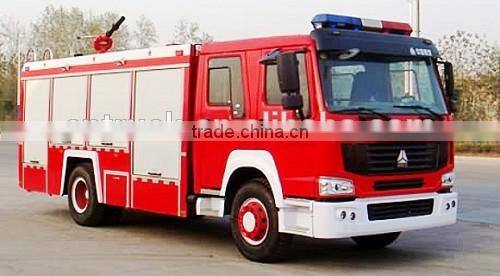

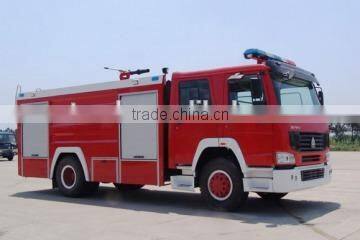

from Sinotruk HOWO Fire truck 10 wheels 6*4

Specifications

Favorable hydraulic tipping gear.
Reasonable design for cargo box.
Reinforced sub frame design.
The lowest vehicle shut heigh

Product  advantages:

1. Favorable hydraulic tipping gear.
2. Lowest vehicle shut height in China increases the stability performance when driving and unloading.
3. Reasonable design for cargo box.
4. Reinforced sub frame design to ensure the reliability when lifting and unloading.





Factory outlook





Specification

pecifications

SINOTRUK Fire Vehicle
CHASSIS TYPE----------------------------------- CNHTC.( 4X4 OR 6X4 )

SINOTRUK FIRE VEHICLE

( AUTOCISTERNA PESADO).







• CHASSIS TYPE ------------------------   CNHTC.



• MODELO ----------------------------ZZ 3167M3811 ( 4X2).



• ENGINE:  WD615.62, (266Hp)  Power: 196kW (266HP/2200rpm)



• CABINA TYPE -------------------- HOWO (CREW CAB) ( Four doors, 6 persons, one bench seat in the second line.)

             MODEL FIRE VEHICLE (JIEDA)------- QDZ5140GXFPM43Z



             PUMP

• WATER CAPACITY ---------------     4 000 LITERS



• FOAM CAPACITY --------------      300LITERS



• PUMP TYPE -------------------------     CB 10./40
• FLOW RATE -------------------------     40 lts/sec
• PRESSURE ---------------------------       10 bar
• Outlet Piping -------------------------- 4 ( 65 mm, two in right, two   in left or 4 on rear).
• Inlet Piping ----------------------------- 125 mm.
• Outlet Pinping: An injection inter in the rear wall of the tank is used to fill the water from pump to tank.



     CANNON

• Model --------------------------------------- PL48
• Flow Rate: --------------------------------- 24 Lts /sec
• Throw Range ------------------------------- 45 m
• Pressure ------------------------------------- 10 bar



• CONNECTIONS ------------------------According to Cuba standards( SPEED  STANDARD GOST)



• WATER TANK ----------------------- Q235A steel wter tank



• FOAM TANK --------------------------- PP macromolecule material



• INNER LAMP & OUTER LAMP
• INNER TOOL BOXES
• OUT LET 24 V



Certificate





Production line







Product details



Business card



       Sinotruk Qingdao Heavy Industry Co.Ltd is one of the wholly owned subsidiaries of China National Heavy Duty Truck Corp., Ltd. It is one of the biggest special truck R&D, manufacturing and exporting base in China. A bountiful supply of spare parts, considerate after-sales services, abundant technical strength can provide timely and satisfaction service for the overseas users.

      Thanks a lot for paying our great attentions to our Company. I'm Levana from Sinotruk Qingdao Heavy Industry Co.Ltd
