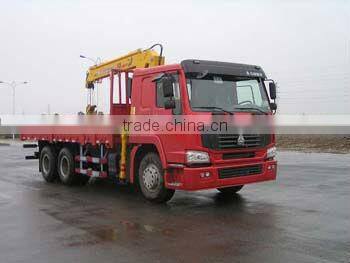

HOWO LORRY TRUCK WITH CRANE 17 Ton

Specifications

1.Shimei crane with best design structure in China;
2.HOWO chassis, with the best heavy truck inChina;
3.Professional team.



Main Specifications of QDZ5162ZJ42SJ Truck With Crane
Chassis Model		SINOTRUK SWZ ZZ1161M4211
Loading Capacity		kg	10100kg
Gross Vehicle Weight		kg	19000kg
Kerb Weight		kg	8990kg
Overall Dimension	Length	mm	7560
	Width	mm	2500
	Height	mm	2958
Wheelbase		mm	4200mm
Engine		WD615.62
Maximum Output		Hp/r.p.m	266 HP/ 2200
Maximum Torque		N.m/r.p.m	1100NM/1300-1600 rpm
Fuel Consumption		g/kwh	197 g/kWh
Fuel Tank Capacity		L	300
Transmission			FULLER 8JS100B
Ratio		11.4; 7.94; 5.63; 4.06; 2.81; 1.96; 1.39; 1.00 11.35(R)
Steering			JL80Z
Tyres			11.00R20
QUANTITY			7
Maximum Speed		Km/h	102
Model of crane		SQ6.3SK3Q
Max. Lifting moment		T.M	154.5
Max. Lifting Weight		Kg	6300
Rated Working Circle		m	10.3
Max. Lifting Height		m	11.9
Boom number			3
Swing Angle		o	360
Pump max. flow		cc/rev	63
Pump max. pressure		Mpa	0.1





We have several types of trucks with crane. Any demand, please contact me at chenxiaolong5 at .
