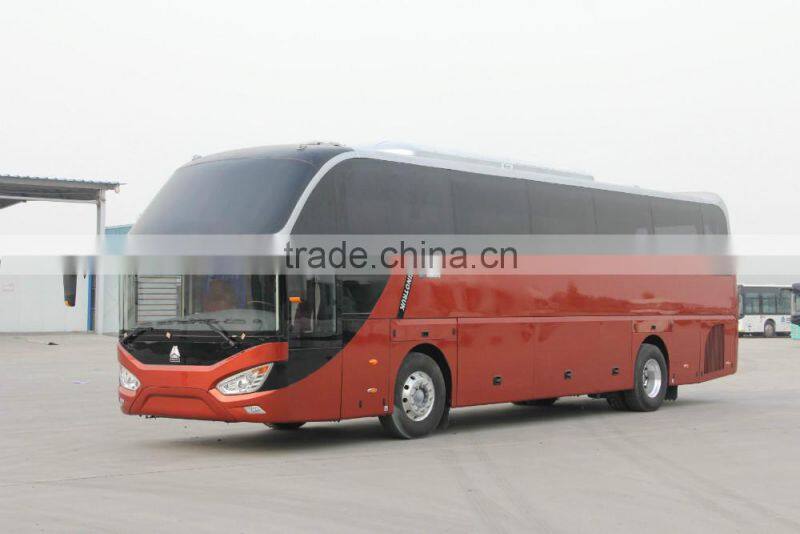

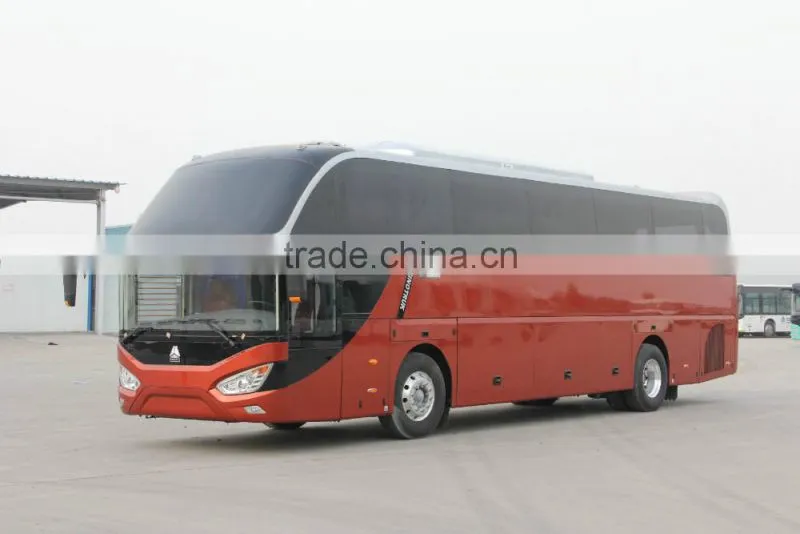

HOWO COACH BUS (DIESEL TYPE) Specification
Model: JK6118HA
Overall dimension: 10990*2500*3790 mm
Engine model: MC07.28-40 (Man- technology)
Max output: 206KW, EURO-IV
Engine location/fuel: Rear/ diesel oil
Max torque: 1230 mm
Transmission: S6-90 , 6 forward and 1 reverse
Clutch: Diaphragm-spring clutch, 430A
Front axle : VPD060QB (MAN technology), disc brake
Rear axle: MCY11 (MAN technology), drum brake
Suspension: Air suspension
Steering: Air controlled dual-cycle service brake, energy storage spring parking brake, ABS, automatic slack adjuster, TERCA TB19 electric eddy-current retarder
Fuel tank: 300L
Tire : 11R22.5, number : 6+1
Inside height: 2000 mm
Wheelbase: 5550 mm
Front/rear overhang: 2290/3150 mm
Approach/departure angle : 8/8 (º)
First step height: ≤430 mm
Rated seats number: 45+1+1
Luggage compartment volume: 4.35 M3
Max speed : 100 km/h
G.V.W: 15900 kg
Frame: Semi-monocoque body

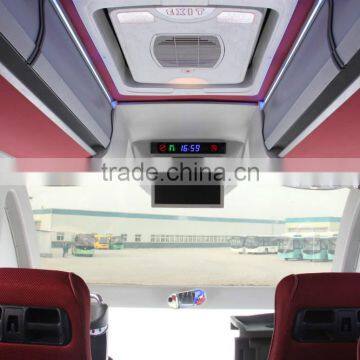

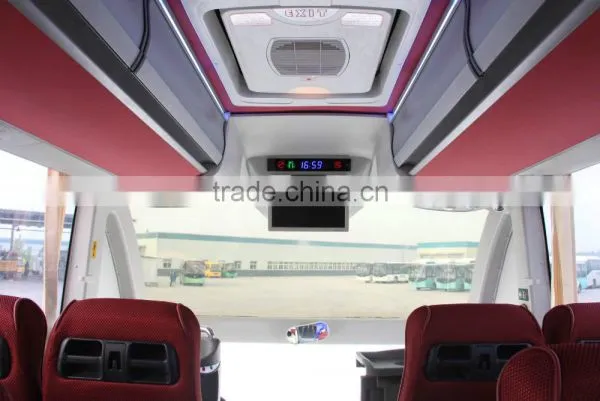

Interior trim: Moulded interior trim, luggage carrier, reading lamp, side window curtains
Door: Front and middle pneumatic outer-swing door, built-in seal, alloy side door
Window: Two-piece laminated front windshield, one piece tempered rear windshield,
adhesive and closed side windows (the last two windows are sliding type), gray color
Rear vision system: Manual outside rear-view mirror, inside mirror
Air conditioner: A/C 32000Kcal/h, bus engine driven
Heating system: Water pump + defroster
Audio visual system: MP3
Lighting: New front and rear headlamps, high-mount stop lamp
Wiper: Electric opposed wiper

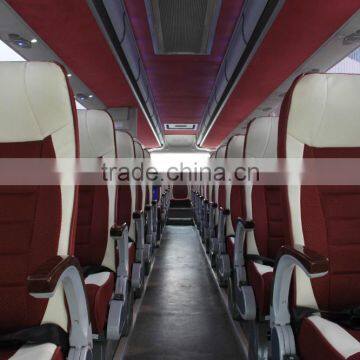

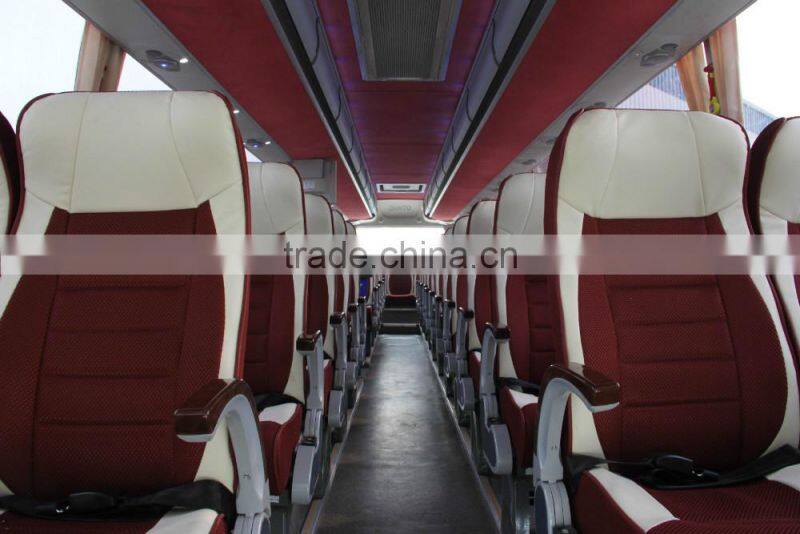

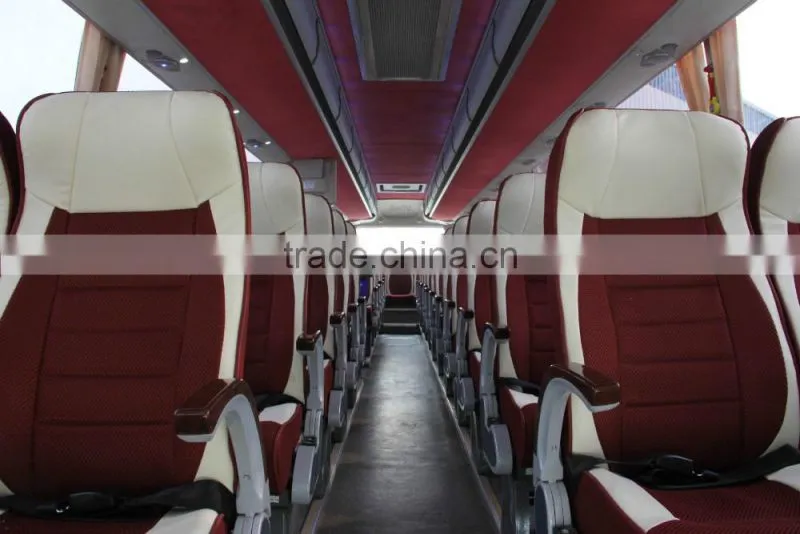

Seats: High back adjustable passenger seats (with armrest and safety belt), driver seat, tourist guide seat, 2+2 arranged, 45+1+1 seats
Paint: Metallic paint
Other :Anti-wear flooring, electric clock, softening passenger stall, side window curtains,
remote locks, 2 scuttles with ventilators, full closed stainless steel wheel cover, automatic fire extinguisher in engine cabin, engine compartment temperature alarm, 5Kg dry powder fire extinguisher, GPS recorder integrated machine
If you have interest, please contact me.
