821 Series Straight Running Double Hinge Plastic Table Top Chain
- 3000 Meter / Meters per Month
- Shanghai
- Credit Card
You May Like
-
Double Hinge Supergrip Tabletop Chains for Inclined Conveyor
-
LBP831 Straight Run Single Hinge low Backline Pressure roller chain
-
LBP821 Straight Run Double Hinge low Backline Pressure chain plastic roller chain
-
LBP821 Straight Running Plastic Conveyor Roller Chain
-
LBP831 Straight Run Single Hinge Plastic Roller Conveyor Chain
-
821 Straight Run Double Hinge ThermoPlastic TableTop Chains
Product Details
Standard or Nonstandard | Standard | Type | Leaf Chain | |
Material | Plastic | Tensile Strength | Strong | |
Place of Origin | Jiangsu, China | Brand Name | Tuoxin | |
Model Number | 821 series Table Top Chain |
Product Description

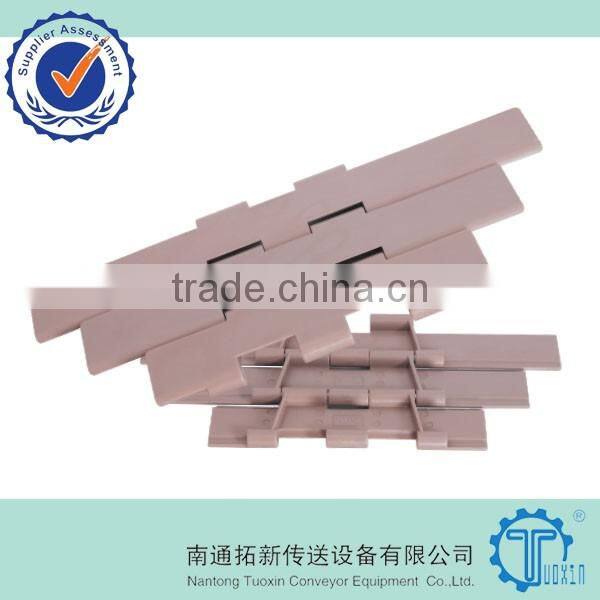

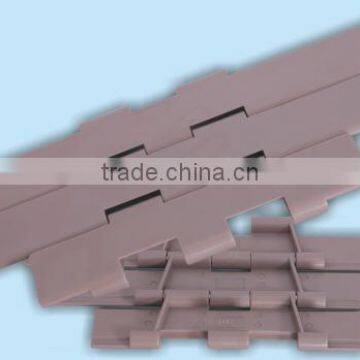

821 Series Straight Running Double Hinge Plastic Table Top Chain
Plastic Table Top Chain
1. Pin material:stainless steel
2. Standard length:3.048m=10feet(80links)
3. Working Load(max): 2680N
4. Backflex radius: 50mm
5. Maximum conveyor length: 12 meters
Chains type | Plate width | Working load (max) | Backflex radius(min) | Weight | ||||
mm | inch | N(21℃) | Ibf(21℃) | mm | inch | kg/m | ||
821-k750 | 190.5 | 7.50 | 2680 | 603 | 50 | 1.97 | 2.50 | |
821-k1000 | 254.0 | 10.00 | 2680 | 603 | 50
| 1.97 | 2.95 | |
821-k1200 | 304.8 | 12.00 | 2680 | 603 | 50 | 1.97 | 3.25 |
Advantages:
Plastic table top chains are made of engineering plastic and are connected using stainless steel pins.The plastic tabletop chains constitute a light-weight yet strong and silent alternative to steel chains.
These chains are used mainly in the food and packing industry for Conveying of many kinds of containers.For example:PET bottle,PET petaloid bottle,Aluminum and steel can,Cartons,Trays,Packaged products,Glass,Plastic containers.
BENEFITS:
-Accuracy of molding process guarantees Optimum flatness
-High wear resistance and low friction
-High working load
Applications:
Packaging:
Other products:
Certificates:
