2400D Radius Flush Grid Modular Belt
US$ 115 - 150
/ Square Meter
10 Square Meters(Min. Order)
- Shanghai
- T/T Credit Card
You May Like
-
2400C Modular Radius Flush Grid With Pop-up Flights Belt
-
FLS254 Radius Flush Grid Belt With Flights and Sideguards
-
M2540 Radius Flush Grid Plastic Modular Belt Manufacturer for Beverage
-
FLS254 Radius Flush Grid Plastic Modular Conveyor Belt
-
M2540 Radius Flush Grid Food-grid Free Loading Conveyor Belt
-
M2540 Radius Flush Grid With Hold-Down Edge Modular Conveyor Belt
Product Details
| Standard or Nonstandard | Standard | Type | Other, Flush Grid | |
| Material | Other, PP/POM | Place of Origin | Jiangsu, China | |
| Brand Name | Tuoxin | Model Number | 2400D |
Product Description

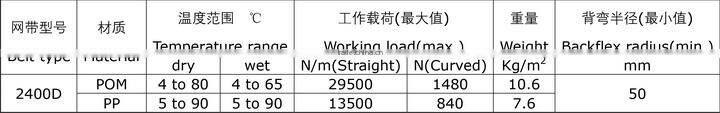

Specifications
Radius Flush Grid Modular BeltBelt pitch: 46.0mm
Open area: 38%
Inside turning radius: Rmin=2.2*W
2400D Radius Flush Grid Modular Belt
Benefits:
1.The Radius belts range offers a solution for almost any curved application. As a standard the belts are supplied in POM for beverage and in Ac or PP, especially for direct food contact.
2.And we have the best price and good quality and the first class service. We have exported our products to many countries like India, Iran, Australia and so on.
3. The total plastic and cleanable design can solve the steel belts easily polluted.

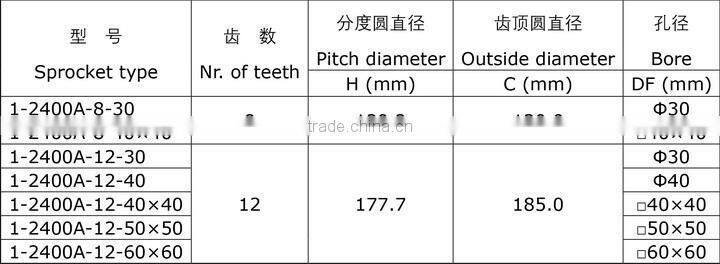

Sprocket for 2400 Series:
Application:
If you order from us, we are sure that you will be greatly satisfied with our products and the most competitive price.We are mainly majored in Conveyor Equipments for 10 years so you can be relieved for our products. We are very looking forward to receive your any enquiries or orders.
