Home > Industrial Equipment & Components > Power Transmission Parts > Transmission Belt > 7956 Radius Solid Top With TAB Modular Conveyor Belt

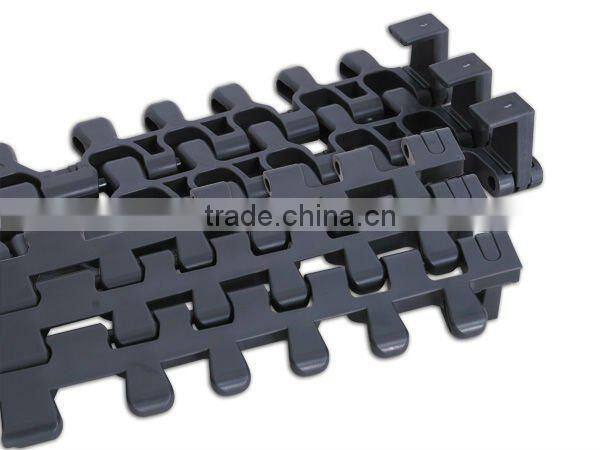

7956 Radius Solid Top With TAB Modular Conveyor Belt

Name: 7956 Radius Solid Top With TAB Modular Conveyor Belt
Brand: Tuoxin
SKU: 141662988
Availability: InStock

7956 Radius Solid Top With TAB Modular Conveyor Belt thumbnail-1

7956 Radius Solid Top With TAB Modular Conveyor Belt photo-1

US$ 160 - 200 MOQ: 5 Square Meters

Key Specifications

Get Latest Price

Standard or Nonstandard:

Standard

Type:

Other, radius belt

Material:

Other, POM, POM

Contact Supplier Request Quote Chat Now

Nantong Tuoxin Conveyor Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Standard or Nonstandard Standard

Type Other, radius belt

Material Other, POM, POM

Place of Origin Jiangsu, China

Brand Name Tuoxin

Model Number 7956TAB

Specifications

Modular Conveyor Belt
1.Belt pitch:31.75mm
2.Open area:16%
3.Assembling method:connected with rods

Item name: 7956 Radius Solid Top With TAB Modular Conveyor Belt

Specifications:

1.Belt pitch:31.75mm

2.Open area:16%

3.Assembling method:connected with rods

4.Inside turning radius:Rmin=2.0*W

Radius Modular Belt
Solid Top Modular Belt
Modular Belting
Modular Conveyor System
Slat Conveyor
Flush Grid Modular Belt

Engineering Data:

Belt Type	width		Working load(max)		Sideflex radius(min)		Backflex radius(min)	Belt Material	Weight
Belt Type	mm	inch	N/M(Straight)	N(Curved)	mm	inch	mm	Belt Material	Kg/m2
7956TAB-K8	152.4	6	2000	2000	304.8	12	152	POM	11.7
7956TAB-K12	304.8	12	3560	3560	609.6	24
7956TAB-K15	381	15	4000	4000	762	30
7956TAB-K18	457.2	18	4225	4225	914.4	36
7956TAB-K24	609.6	24	5300	5300	1219.2	48
7956TAB-K30	762	30	5780	5780	1524	60

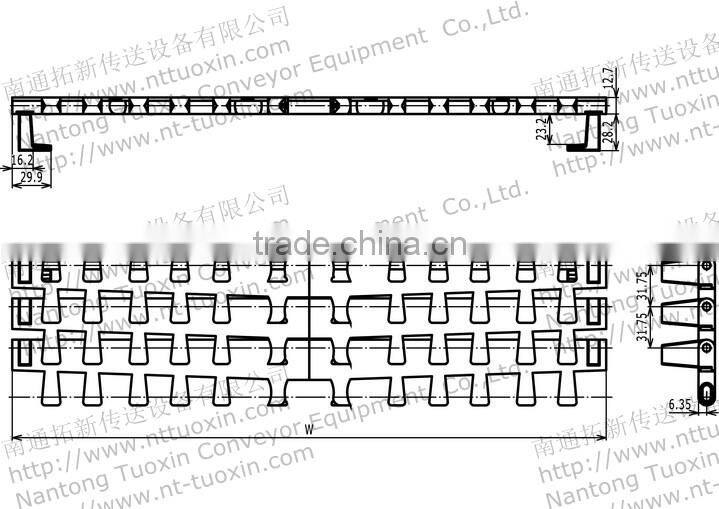

Drawing:

Related sprocket:

Packaging and Certificate:

Other products:

Nantong Tuoxin Conveyor Equipment Co, Ltd
Specialized in:
1.Plastic Tabletop Chains
2.Modular Conveyor Belt
3.Conveyor Components

Price:
We have our own factory, so the price is competitive and reasonable.

Quality:
The competitive price is based on the good quality. Our products have been exported to many countries including India, Iran, Australia, Newzealand, UAE and so on. We have got a good reputation in our colleagues and clients.
