Injection Machine Vacuum Barrel With Stirring for Insulators

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Port Shanghai/Shenzhen or your choice
Payment TermsT/T Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Viscous Fluid
Place of Origin	Jiangxi, China	Brand Name	YIBO
Model Number	AH	Max. Loading Capacity	100L
Voltage	220V	Power(W)	3KW
Dimension(LWH)	20008501950	Certification	ISO9001:2008,CE,SGS
Warranty	one year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Thin Film Degassing Tank , Injection Machine Vacuum Barrel With Stirring

Features

1.Compact structure, less floor space, flexible use.

2.The temperature control system has functions of temperature.

3.Display, automatic temperature limiting, safety protection and so on.

4.Use stirring and injection vehicle directly, it is convenient to use.

5.Adoption of oil heating device, with stable temperature and perfect reliability.

6.Adoption of frequency control of motor speed, is featured with large range of stirring speed, quick degassing, uniform mixing.

Reinforced Type

1.Adoption of video display for working condition, it is obvious and clear.

2.Adoption of digital display vacuum gauge, with accurate display.

3.Control box stand-alone unit.

4.Strengthened filter unit, significant effect.

5.Accident alarm, it adopts alarm lamp device.

6.Special cooling fan.

Main Technical Parameters

Item	Technical Parameters
Stirring power	3KW
Stirring speed	21~118r/min
Vacuum pump power	1.5kw, 2800r/min
Worm gear screw jack	0.25
Vacuum degree	2
Allowing air force in pot	≤0.6

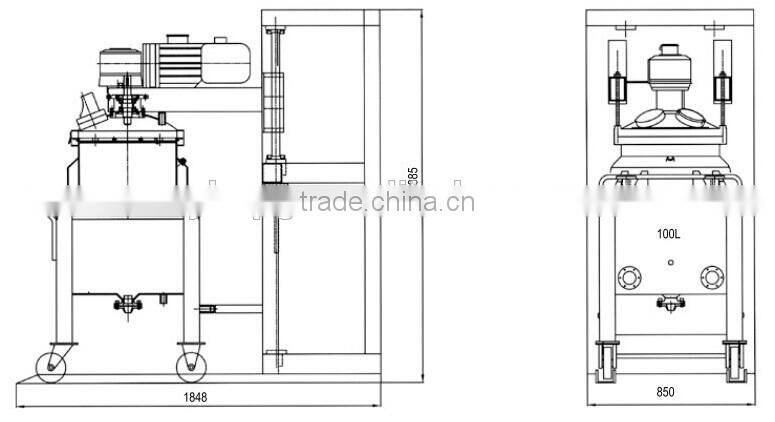

Dimensions of mixing device	20008501950mm
Weight of mixer device	600KG
Capacity of pot	100L
Heating power of pot	3(220V)
Dimensions of pot	10008101620mm
Weight of pot	350KG

Corollary Equipment

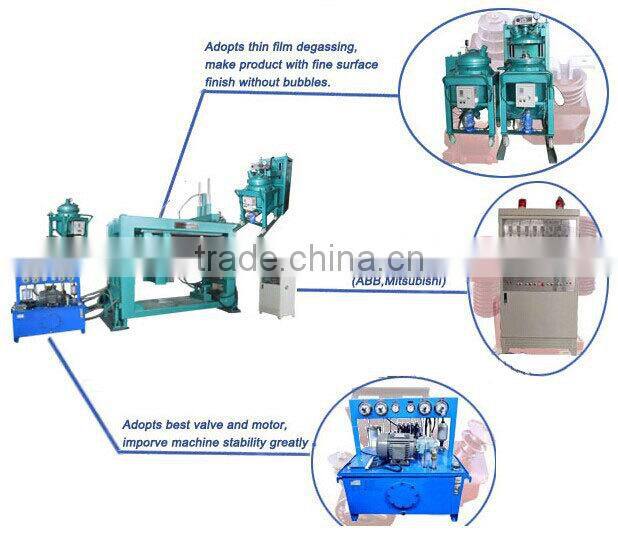

Corollary Equipment: Resin Transfer Molding Machine

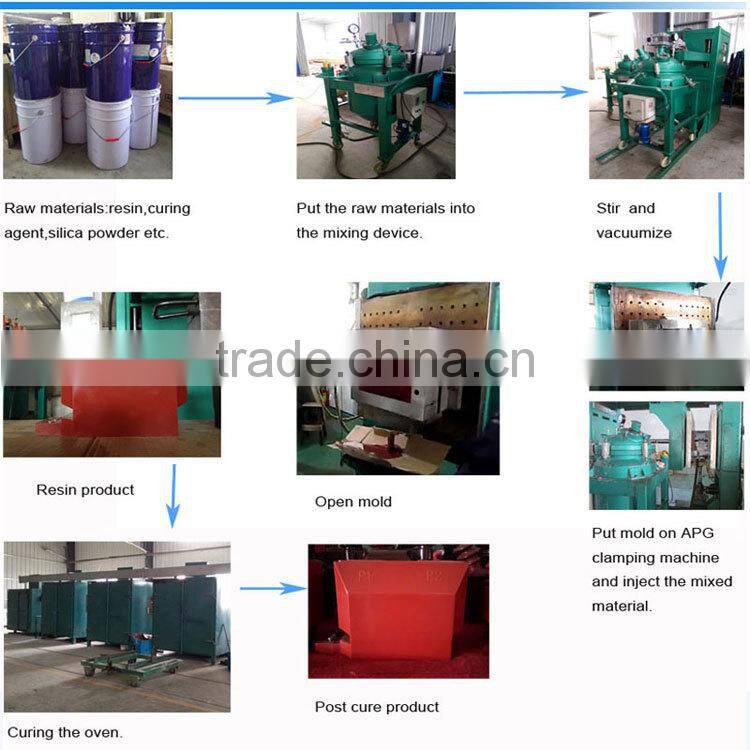

Resin Transfer Molding Machine Operation Process Flow Chart

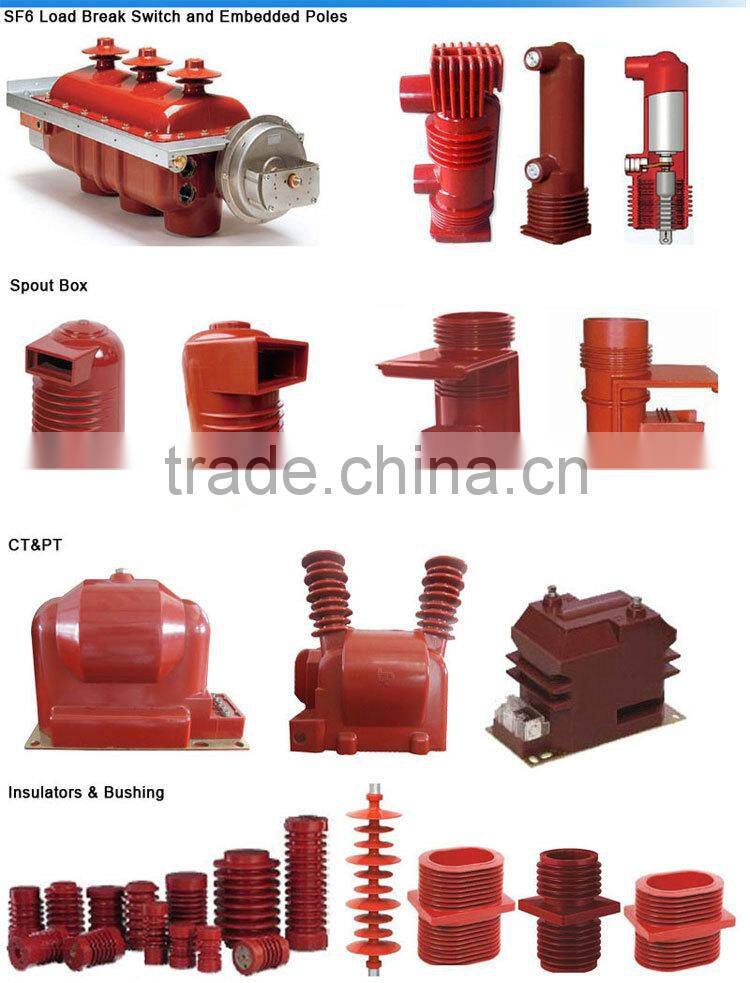

With Resin Transfer Molding Machine and Mold, you can manufacture the following products

Company Information

YIBO Company:

The only manufacturer who can supply one-stop complete solution service for electric industry of resin products such as CT,PT,insulators,SF6 shell.with best factory price and fast shipment.
Professional rich experience engineers and research team, we offer free APG technique training.Our engineers have 23 years experience who serviced many years in ABB, We 100% promise to teach APG technique to you even you are newcomer.
Have a line and lab special for producing CT and PT.we can winding samples and test in our lab.
