Clip bottle washing machine
Intruduction
Clip type washing machine is realization of automatic clamping the bottle into /out of this machine, making the whole production line fully automatic; it whole adopts SUS304 stainless steel body, beautiful appearance and sanitation, with visual hood, fine workmanship, stable operation, convenient to use.

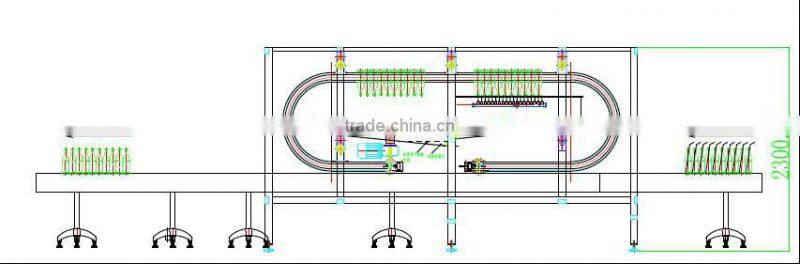

Structure diagram

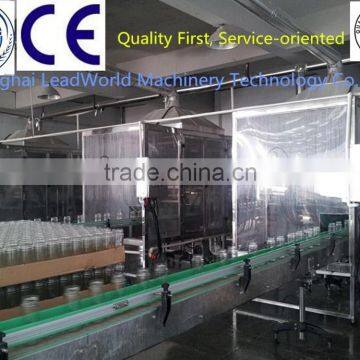

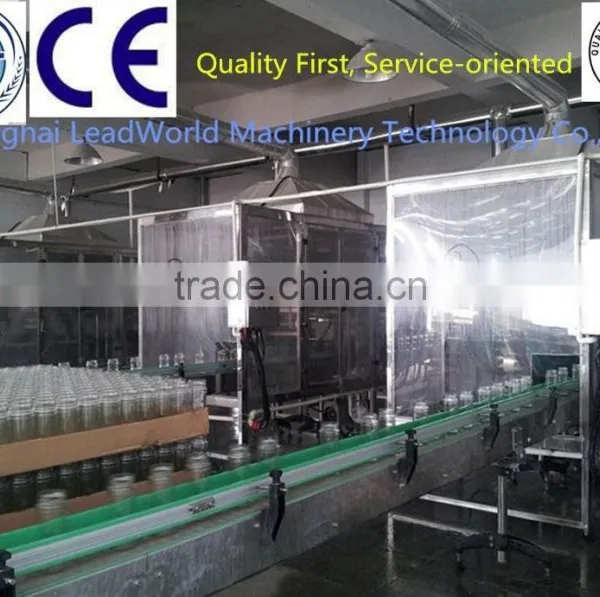

Finished ptroduct show
Front view
Side face
The processing of bottle washing
Application
Parameters and features of bottle washing machiner
1.Parameters:
.water consumption: 2-4T/H,
.Diameter of bottles:50-200mm,
.Height of bottles:50-310mm,
.Capacity of washing:12000-15000pcs/h,
.Water injection power:0.2-0.4MPa,
.Water temperature is over 75℃,
.Drain time:4 seconds,
.Weights:1500Kg,
.Size:5200×1300×2300 mm,
.Power:7.4kw.
2.Features:
.Adopts automatic temperature control system;
.Adopts the circulating hot water flushing, warm water preheating, water wash and other multi segment processing, has the advantages of saving water, energy;
.Adopts imported high temperature resistant silica gel, 304 stainless steel chain, with smooth surface, wear resistance, prevent scratches on the packaging container, in line with food hygiene requirements;
.Tube type spraying, simple structure, convenient installation, easy to clean.
Advantages of clip type washing machine
1.Easy cleaning in place
.don't need to use a large amount of manpower and time for cleaning. In addition, the unique design of the machine make the dirt and debris can not remain in the nook and cranny,so will not bring the cleaning problem make you headache.
2.Reduce the cost of energy.
.clamping type high pressure bottle washing machine in most applications of hot water can be circularly used, and with clean water flush, which means that reduce your any worries.
3.Improve the reliability of production.
.high pressure pump application and a lot of spray nozzle, provide processed products full flush volume.
4.Apllication for various shaped bottles.
.cleaning time and the water pressure can be freely adjusted according to your needs, it can clean various shaped bottles, tin cans, glass bottles by simply adjust.
Worthy of trust
1.High configuration device
.Our equipment uses the global famous brand accessories, such as: Igs plastic parts, NSK bearings, Siemens controller, Schneider low-voltage electrical appliances, Panasonic PW system, Danfoss frequency converter, Yadeke pneumatic components and Kean sensor.
| No | Name of Device | Brand | From country |
| 1 | Frequency Convort | Danfoss | Danmark |
| 2 | Power | CGP | Taiwan |
| 3 | Stainless steel pump | Shiny | China |
| 4 | Contactor | Schneider | France |
| 5 | Relay | Schneider | France |
| 6 | Photoswich | Omron | Japannese |
| 7 | Temperature Controller | Omron | Japanese |
| 8 | Button
| Omron | Japannese |
| 9 | Electric wire | SAIL ON | China |
| 10 | Connection terminal | Weidmuller | Germany |
| 11 | Bearing | China's high quality brand | China |
| 12 | Electromagnetic valve | Shanghai | China |
2.Get domestic and foreign customers well recognized.
.We are the packaging machine manufacturers, we design, production, sales by ourselves, our machine must undergo a serious testing before it outside of factory, we sales throughout the dozens of area, and also sales to part foreign countries.
3.Clean and beautiful appearance.
.Sheet metal parts by argon arc welding, welding precisely, without welding eyes, keep polished and soomth, clean and beautiful appearance
4.Accuracy of metal parts processing
.Our equipment material is all composed of 304 stainless steel, the processing mode of the laser cutting and CNC bending ensure the accuracy of metal parts processing.
Serives provided
.One year free maintenance, free replacement parts, lifelong maintenance
Firstly, trust us!
We have professional services.
We diligently service with warm heart.
All the way, we insist on "people-oriented, customer-centric, " , with customers and win-win in furture!
Parterners
Other options for clip type bottle washing machine
Auto filling machine,and drying machine
Contact ways: Company Name: Shanghai LeadWorld Machinery Technology Co.,Ltd. Address: Factory 5, No.5599 shenzhuan Road,Dongjing Town, Songjiang district, Shanghai Contact person: Candy Tel: 021-67691848 Mobile: 18918131565 skype:shleadworldlora |
