Quick Details
| Place of Origin: | Brand Name: | Model Number: | |||
| Usage: | Type: |
Packaging & Delivery
| Packaging Detail: | wooden case Fumigation Certificate and C/O are available |
| Delivery Detail: | 35 working days after the receipt of the confirmation |
Specifications
1. stainless steel 304, high quality
2. fit for beverage,food industries
3. food and security standard

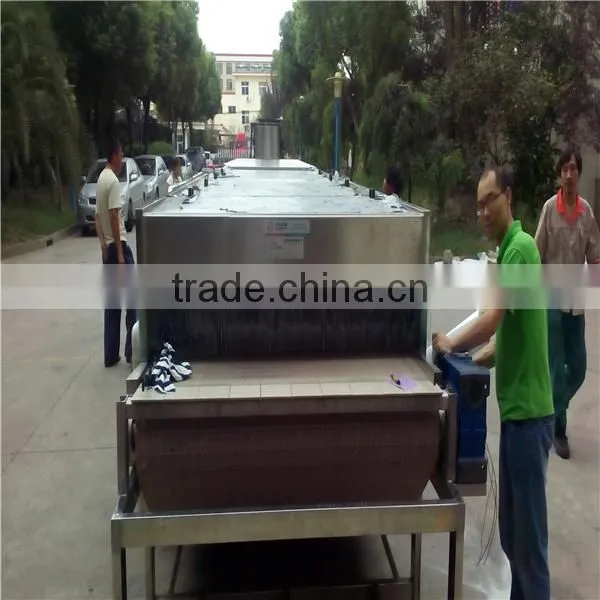

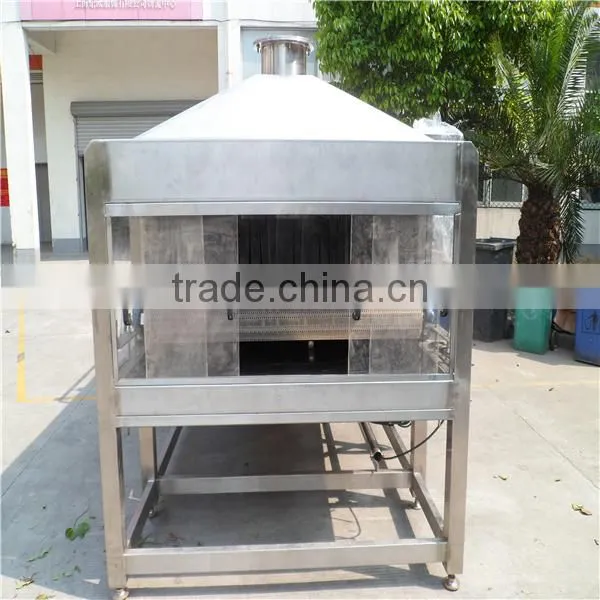

The machine is used for tea, juice beverages in PET Glass bottles hot filling line, it could make beverages in high temperature filling bottles to 36-40 degree centigrade to keep flavor of tea, juice beverages.
It adopts a three section steam recycling heating design.
The first section uses water at 30 degrees;
The second part is at 50 degrees,
and the third part adopts aseptic water spray.
The outlet bottle temperature is below 40 degrees.
Features
1) The chain plate is a brand product
2) The conveyor is frequency controlled
3) All nozzle and spray tubes are made of stainless steel and spray evenly
4) The catchments flume is made of stainless steel and equipped with a level alarm device

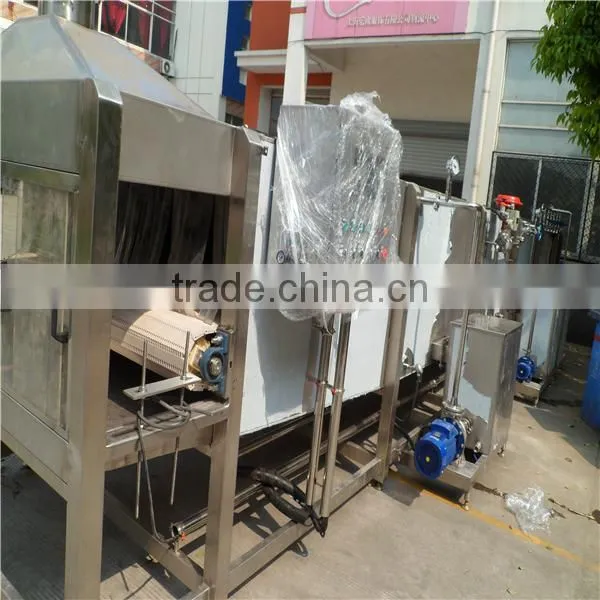

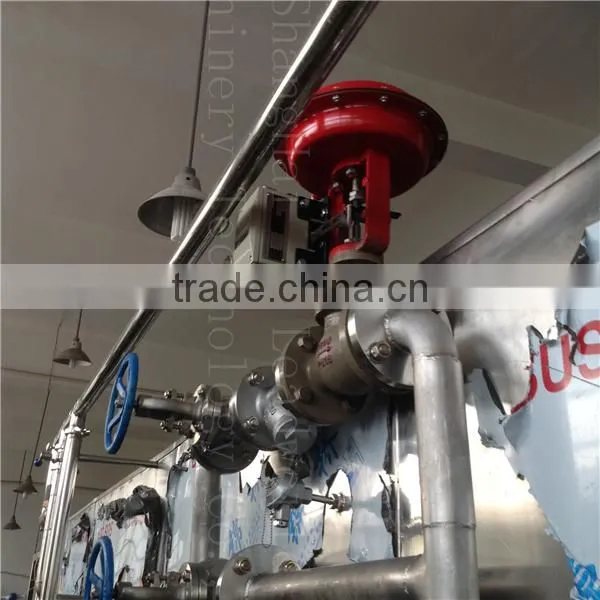

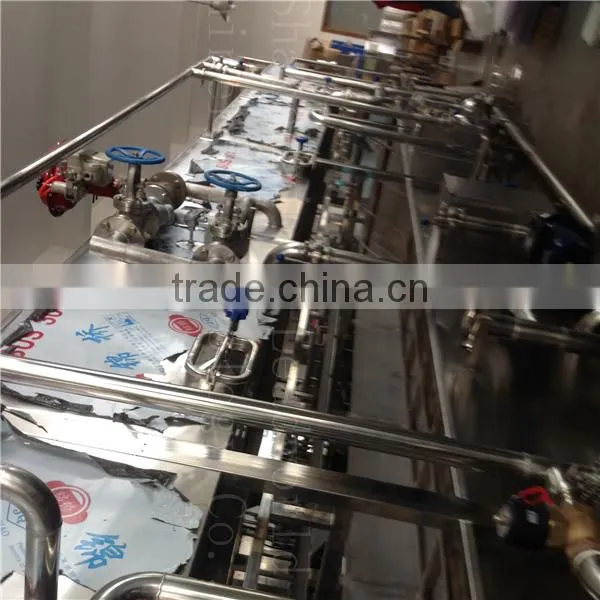

5) The spray-cooling tunnel has a spray cooling recycling water pump and steam adjustment valve
6) Steam consumption is adjusted according to the temperature
7) 304Stainless Steel machine frame and machine body...

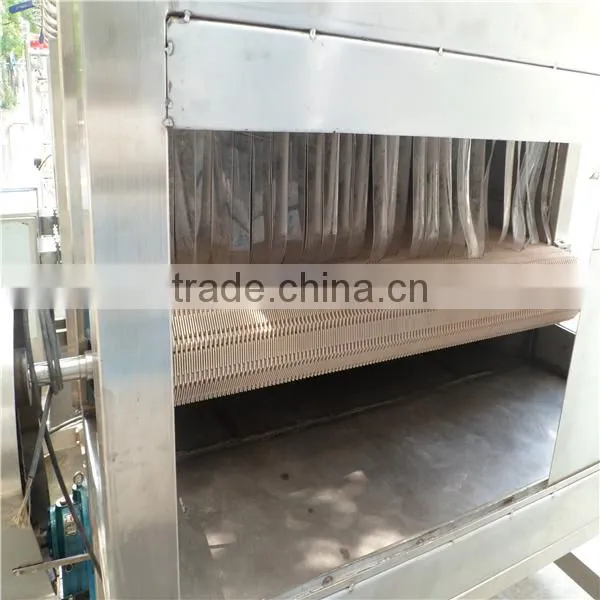

The circular hot water is used to sterilize, the circular warm water is used to pre-cool, and the cooling water is used to cool. It is character of the low noise, accurate temperature controls, the adjustability of the sterilizing time and the automatic control system of the sterilizing temperature. The high quality stainless steel, the world famous Intralox polypropylene net belt, the high-grade spray nozzle and the Japanese and the German electricity part are applied, the entire machine quality the imported equipment.
The basic principle of this unit is that water is used as the heat exchange medium. The sterilizing water is heated through a tube type heater and is evenly sprayed on the bottle or can surface for promoting the product temperature to the sterilizing level. After sterilization, the product shall be moved to the cooling area, though spraying cold water, the product temperature is lowered down to the room temperature. All the used water shall flow back to the bottom tank for recycling.
