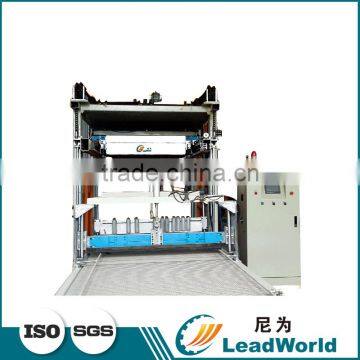

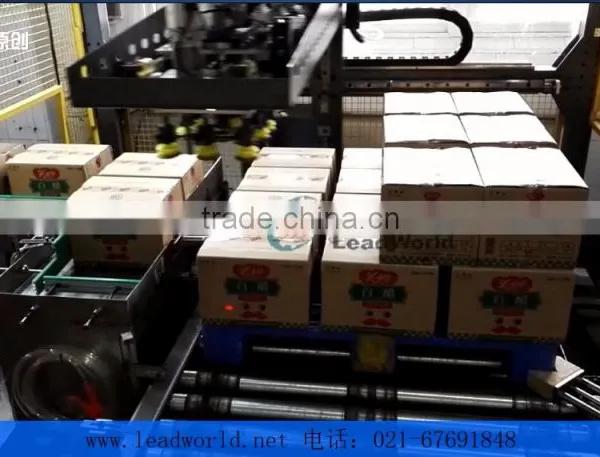

High level Automatic glass fruit canned jar carton palletizer machine
all kinds of cartons, plastic boxes, the stretch film and barrels, and other types of packaging's stack , Machiner's hosts By the double speed belt, Steering mechanism, Sorting box Area, Pallet carton Area, main part lifting mechanism, Pallet output roller line position
Main Feature:
Structural framework is welded. strong and durable and has adjustable base functions, the main lifting platform USES the SEW motor drive, entry speed conveyor belt to separate infeed case, stack is delivered by roller conveyor. 2.5m length of conveyor to output the stack. All adopt roller conveyor. Adopt German Siemens PLC controlling system, movable and can connect to computer. Will display the fault automaticlly.
working process:

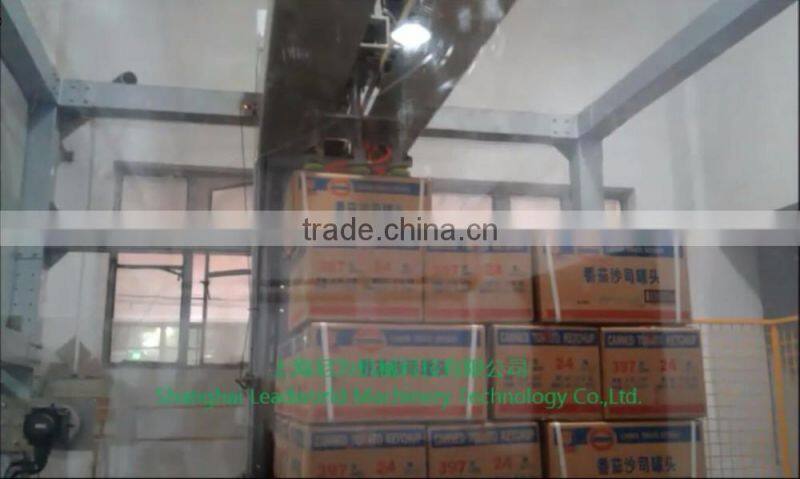

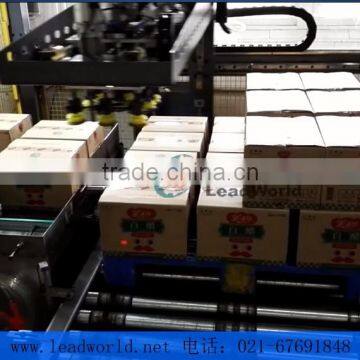

Can finish the follow process automaticlly:Input carton, turn over carton, separate the carton into one line and another line, stack, move stack, input stack, output stack.
Equipment specification:
Automatic servo palletizer, delicate and cabinet, small footprint, small noise and pollution; adopt four-axis servo controlling system, pallet form clear and beautiful. Apply to cartons, film bag, plastic crate products such as pallet, application in food, condiment, beverage, cosmetic, pharmaceutical, electronics and other industries.With panasonic servo motor, Siemens PLC, danfoss frequency converter, SMC pneumatic components sent agtech electrical components such as vacuum suction cups, to ensure the reliability of the system hardware
Feature:
Touch screen operation is adopted to accomplish the man-machine dialogue, using the Siemens PLC programmable control number of carton sequence stacking, pallet supply and discharge can be programmed to control.
the symmetry and compact structure design, suitable for the narrow space of the existing production sites.
Taken the pallet database is big, can accommodate 15 empty pallet, which can realize automatic supply pallet.(pallet library is optional)
needn’t change the stacking parts can complete several stacking way, only need to obtain the parameters is ok.
Parameters:
Model |
LW-PZ10 |
capacity |
5-8cartons/min |
Pallet size |
L1200xW1200*150(m) |
Stacking way |
SERVO |
Stacking H |
≤1900mm |
Equipment size |
2620mm*2440mm*3500mm |
Power |
380v/3P 7.2kw |
air consumption |
210L/min 6kg/cm² |
Conveyor H |
650mm |
Pallet conveyor H |
650mm |
Max weight |
1500KG |
Accessories:
we adopt Siemens PLC, touch screen, Schneider electrical elements. Airtac cyliner, we all match the balancing weight with the machine frame, more stable.
Processing product:
Function:

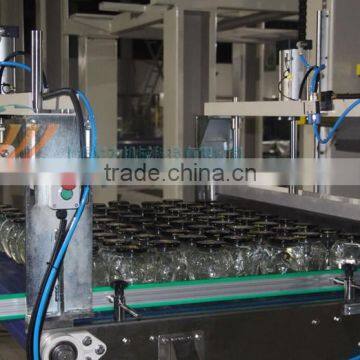

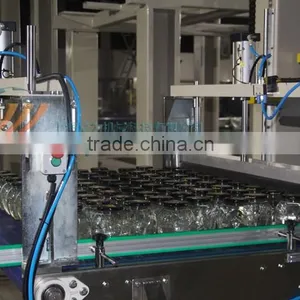

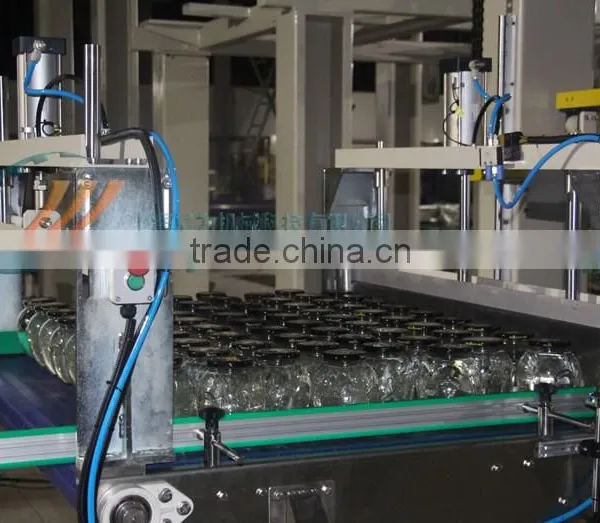

This machine can process glass bottle, glass jar, iron canned, carton, bag and so on, multifunctional.
Note: we also can input the stack tray automaticlly, also can output the stack automaticlly, save worker cost much.
Terms and Conditions:
Payment Terms: 40% payment as a deposit should be paid by T/T to our company account; the balance 60% payment should be paid by T/T before shipment.
Guarantee: 12 months from the installation. All life of technology support.
Installation: the seller is responsible to send technician(s) to install and test the machines and teach the employees of the customer how to use the machine for the buyer, but the round trip air-tickets, accommodation, food and 100 USD/day salaries for each technician will be on the buyer’s account.
After-Sales Service Commitment:
All products purchased in our company are guaranteed to keep in good repair for one year. If quality problems happen in guarantee period, our company will maintain for free. Without the guaranteed period, we only charge for the accessory. Additionally, our company provides technical support for life. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time. If you are caught in some problems when using our products, welcome to contact us at any time.
The supply of spare parts
Adequate year round supply of spare parts, ready to quickly handle telephone mail order business,
repair parts can be on-site service plan, customers save time and costs.
FAQ:
1. Which kind of product it can process?
any kinds of carton.
2. what its speed?
generally is 5-8cartons/min, if for bottle or jar, the speed can be very bigger, one time one minutes, but one stack will can put 100pcs of bottles, jars and so on, even bigger.
3. what's your PLC brand?
Siemens. Siemens is our standard match.
4. can i come to check the machine?
yes, welcome! each month we will have many sets in producing.
Whole process of the carton packing and palletizer line:

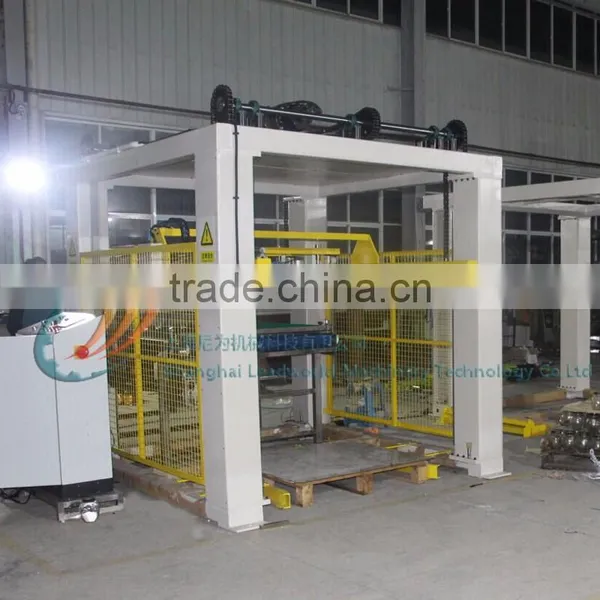

working house:
our company:
Deliverying:
working office:
My business card:
