Packing Machine /stretch film luggage wrapping machine

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Beverage
Packaging Type	Film	Packaging Material	Plastic
Automatic Grade	Automatic	Driven Type	Electric
Voltage	220 v	Power	0.6KW
Place of Origin	Shanghai, China	Brand Name	leadworld
Model Number	LW-01	Dimension(LWH)	1320mm * 600 mm *1115 mm
Weight	200kg	After-sales Service Provided	Overseas service center available

Product Description

Quick Details

Type:	Wrapping Machine	Condition:	New	Application:	Beverage
Packaging Type:	Cartons	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220v	Power:	0.6KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	leadworld	Model Number:	LW-01
Dimension(LWH):	1320mm * 600 mm *1115 mm	Weight:	200kg	Certification:	CE
After-sales Service Provided:	Overseas service center available

Packaging & Delivery

Packaging Detail:	ply wooden cases
Delivery Detail:	7 days after payment

Specifications

1000/600mm wrapping height;
This is the machine to wrap (pack) the luggage in the airport;
stretch film wrapping;

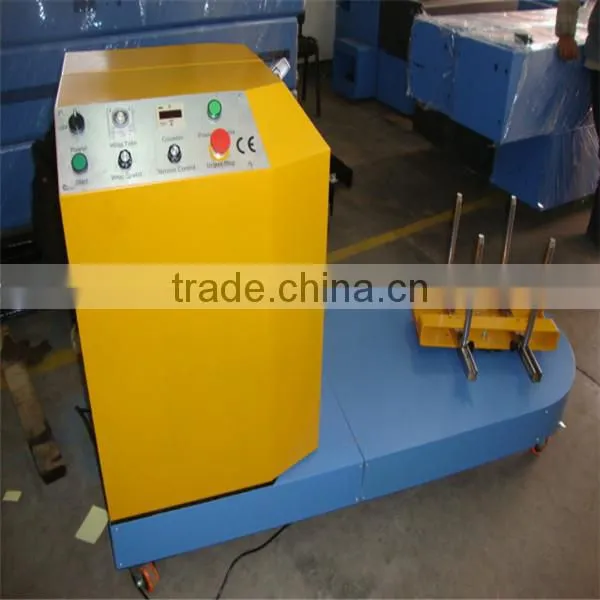

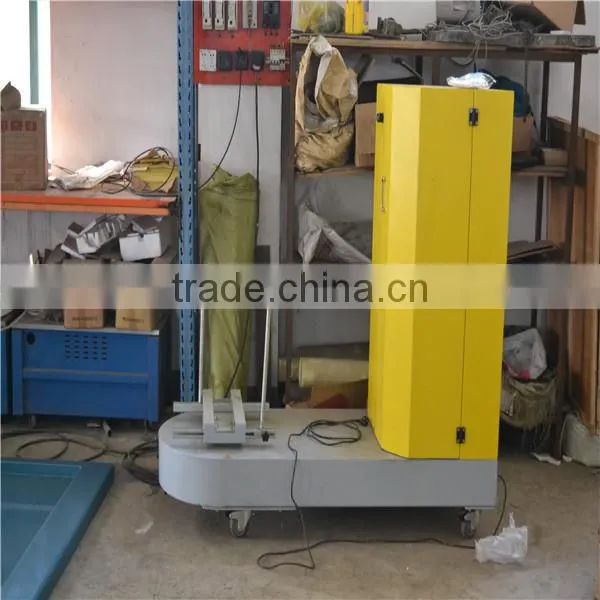

LW-01 Airport Luggage Wrapper Packing Machine

luggage wrapper Machine introduction
Luggage wrapper is designed to wrap luggage and related items for security purpose in airport setting. Film provides extra support while the luggage is being transport to protect them from being damaged.And the plastic and closing label avoid wrong taking.The machine is a movable and manually operated rotary turntable device use stretch film to wrap the luggage.The operator places the luggage on the platform and adjusts vertical rods to secure bag according the luggage's size.Then begin the wrap process start button on control panel pack the luggage by a 3 to 5 layers of stretch film.The operator cuts film tail and removes from the turntable.The machine is ready to accommodate the next piece of luggage.

luggage wrapper Control system
PLC Control system
Powered pre-stretch film carriage up to 250% to min film consumption
Operator adjusts vertical rods to secure bag
Film tension control adjustment on the panel.
Platform speed is 20 rpm.
Machine easy to be moved by one person.

Power	AC220V 50Hz 0.75 KW
Packing Size	L(500-1000)×W(180-450)×H(300-500)
Maximum Packing Weight	100KG
Motor for Film Shelf	0.2KW
Turn Plate Rotational Speed	0-9turn/min(frequency adjustable)
Turn Plate Diameter	500mm
Control Model of Film	Initiative prestretching film shelf
Size	1650mm×600mm×1000mm
Weight	200KG
