Specifications

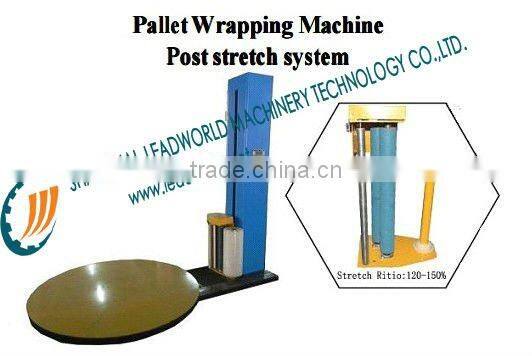

pallet Shrink wrapping machine1. Programmable control
2. Rotary table recet automatically
Mainly designed for pallet package outside packing with stretch film.
Features:
*Many protection functions,more safe &reliable;
*New design,easy for after-service&maintenance;
*Firm&durable;
*PLC is adopted for electrical control. Can set special wrapping position reinforcement.
Turntable position restored automatically;
*Can set packing types automatically&manual operation also;
*Indicator alarmed automatically;
*Photo electric load height sensing;
Items | JL2100-J | JL2100-C | JL2100-B | |
Working mode | Semi-auto | Auto/Manual | ||
Power voltage | AC380V/50Hz | |||
Turntable motor power | 0.40kw | |||
Up-down motor power | 0.37kw | |||
Turntable speed | 13r/min(adjustable) | |||
Film carriage speed | 2.9m/min | |||
Turntable diameter | 1500mm | |||
Turntable height | 110mm | |||
Total weight | 500kg | 530kg | 550kg | |
Overall dimensions | L2600mmW1500mmH2650mm | |||
Tension control | Mechanical spring | Magnetic controller | ||
Height control | manual | Photocell sensor electric eye | ||
Turntable starting mode | Soft start & Soft stop | |||
Max load weight | 2000kg | |||
Max load height | 2100mm | |||
Max load size | L1400mmW1400mmH2100mm | |||
Special design is available.
