Specifications

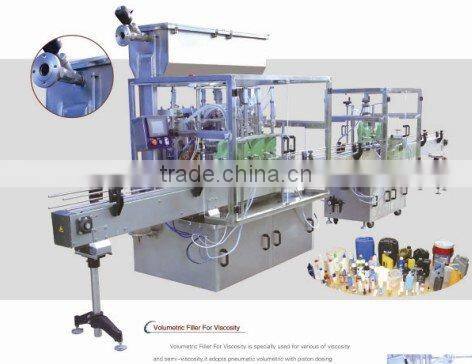

PLC controlled,High efficiency, high accuracyAutomatic weighing filling
With variable conveyor,controlled bu sensor and PLC
Filling Heads: 2heads, 3 heads, 4heads, 6heads
Filling Range: 10-20lL
Capacity: 300-240 PCS/H (for 2 heads); 420-360 PCS/H (for 3 heads); 540-480 PCS/H (for 4 heads) 720-600 PCS/H (for 6 heads)
Feature:
Control System: PLC/Electric-Pneumatic Controlled
Operation Panel: Intelligent Colorful ToucH Sreen
Filling Accuracy: +-0.2%
Filling Adjustment: PLC controlled automatically weighing, adjusting by sensor, can trae the fill by net weight.
Conveyor: Irregular plate chain variable conveyor made of stainless steel, with photoelectric sensor and PLC processing controlled swift.
Main Characteristic:
engine lubricants filling machine
This system adopts the German technology for weighing filling machine, with high precision for any filling material. Material Valve matched with quick and slow valve so that it could improve filling speed as well as filling precision. Wide filling volume, it could adjust volume between 15-50kg and the filling precision is less than 10g/barrel Filling nozzle is with anti-drip device. The filled lacquer is with no bubble which a good impact. Control weigh automatically. It match with pneumatic nipper and platen device
Main Structure and Working Principle Automatic ration filling machine is made up of weighing filling machine, conveyor and capping press machine. The weighing conveyor match with non-drive roller Weighing filling machine main structure and principle It made up of material feeding, weighing, frame, and pneumatic controlling system. Feeding device feed material quickly and slowly by cylinder Weighing System: Weighing Frame, sensor and weighing conveyor. Weighing conveyor connect with frame by sensor. It should not add any drive during working. It could adjust the filling nozzle height by wheel.
Operation: Manual loading barrels and start machine; Open material feeding pump and valve automatically; Close quick material feeding valve on working 1; Close material feeding pump and slow feeding valeve on working 2; Manual load caps in the right position; Capping press; Move manually after capping.
